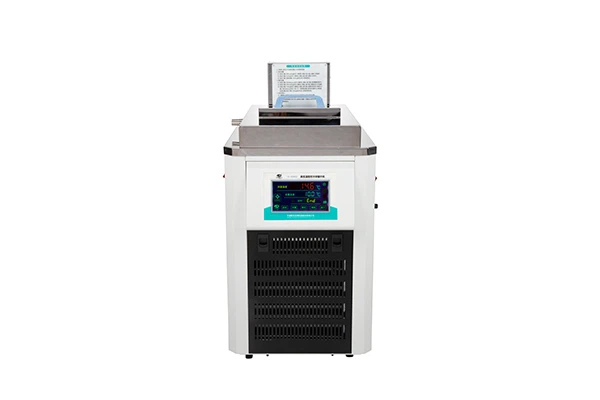

Digital Thermostat Circulating Cooling Water Bath
Description
Technical Parameters
Ningbo Scientz Biotechnology Co.,Ltd. is one of the leading digital thermostat circulating cooling water bath suppliers in China. Welcome to buy our quality and cheap products for sale in bulk. We also welcome wholesale orders and customized orders. Now, please be free to check the price list with our factory.
This product can be circulated inside and outside. It can be used as internal circulation by connecting two inlet and outlet pipes with latex tube. Remove the latex tube and connect the two water pipes to the inlet and outlet of the reaction kettle to form an external circulation, close to the control panel. Only the copper water pipe is the water outlet pipe connected to the pump, and the other is the water inlet pipe. Please be careful not to connect the wrong when connecting, so as to prevent the water from flowing back when starting up.
|
|
Hot Tags: digital thermostat circulating cooling water bath, China, factory, suppliers, wholesale, customized, buy, cheap, bulk, price list, for sale
| Model | Temperature Range (℃) | Number of Temperature Control Segments (bits) | Operating Voltage | Cooling Bath Volume (L) | Constant Temperature Accuracy (℃) | Pump Flow Rate (L/min) | Pump Pressure (bar) | Cooling Capacity (20℃/kW) | Heating Power (kW) | Total Power (kW/h) | Overall Dimensions L/W/H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|

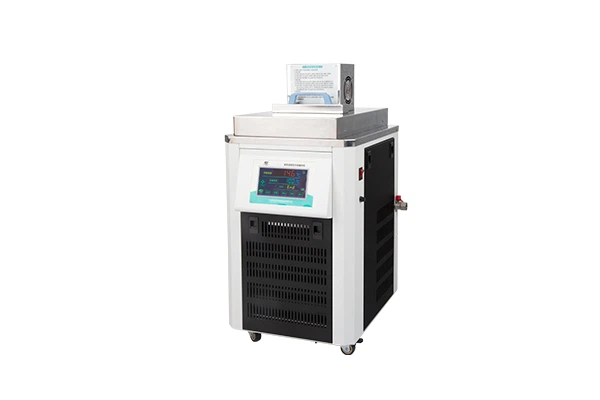

| CK-2003GD | -20~200 | 32 | 220V/50Hz | 3 | ±0.1 | 15 | 0.45 | 0.40 | 1.0 | 1.0 | 500*358*754 |
| CK-4005GD | -40~200 | 32 | 220V/50Hz | 5 | ±0.1 | 15 | 0.45 | 0.75 | 1.5 | 2.3 | 590*435*770 |
| CK-4007GD | -40~200 | 32 | 220V/50Hz | 7 | ±0.1 | 15 | 0.45 | 1.24 | 2.1 | 3.1 | 615*505*845 |
| CK-4010GD | -40~200 | 32 | 220V/50Hz | 10 | ±0.1 | 15 | 0.45 | 1.65 | 2.5 | 3.5 | 615*505*895 |
