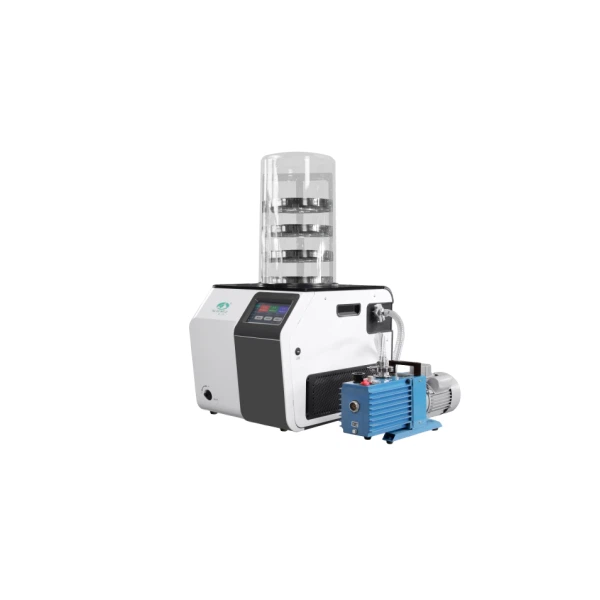

SCIENTZ-10ND/A Laboratory Freeze Dryer
Description
Technical Parameters
Products Description
SCIENTZ-10ND/A Laboratory Freeze Dryer
Rapid refrigeration and low cold trap temperature with international brand compressor refrigeration.
Easy operation
Easy operation and powerful control system, featuring a 7-inch true color touch LCD screen.
Intelligent Control
Industrial embedded operating system with fast response, ample memory, and data storage.
Data Safety
Real-time and historical curve viewing of freeze-drying data, ensuring a clear understanding of the entire process.
Acrylic drying chamber
Transparent polycarbonate drying room enables clear observation throughout the freeze-drying process.
Versatile functionality
Versatile functionality, including multiple freeze-drying curve storage, data extraction via USB, and various program options for different materials.
Application Areas
Agriculture: Freeze-drying of plant specimens, soil, insects, tissues of plants and animals, soil and sludge samples
Food: Freeze-dried vegetables, freeze-dried fruits, freeze-dried coffee, freeze-dried tea, freeze-dried spices, freeze-dried meats, freeze-dried candies, freeze-dried veggies, freeze-dried dog food, freeze-dried pet snacks.
Centers for Disease Control and Prevention (CDC) : Freeze-drying of drugs, freeze-drying of nucleic acids, proteins, serum samples, freeze-drying and preservation of microorganisms and viruses, extraction and drying of proteins, freeze-drying of vaccines and anticancer drugs, research on synthesis of chemical drugs, development of powdered injections, extraction of components of traditional Chinese medicines, freeze-drying of strains of bacteria, viruses, etc., and pre-processing of samples for physicochemical laboratories.
Environments: Freeze-drying of soil and sludge samples.
Biopharmaceutical: Vaccine powders, antibiotics, antitoxins, diagnostic reagents, interferons, orally disintegrating tablets, serum proteins and plasma, enzymes, coenzymes, disintegrating tablets for ophthalmic use, skin tissues, extraction of Traditional Chinese Medicine Ingredients, Chemical Drug Synthesis Research,etc.
Materials: Nanomaterials, catalyst preparation, polymer synthesis materials, insoluble substances, metal ultrafine powders.
SCIENTZ-10ND series
SCIENTZ-10NDLaboratory Freeze Dryer series
SCIENTZ-10ND/A
SCIENTZ-10ND/b
SCIENTZ-10ND/c
SCIENTZ-10ND/d
Optional Functions
Configuration options to meet needs
Eutectic point test function, master the material better sublimation temperature.
Vacuum control function to maximize heat transfer.
Double-stack refrigeration system, mature technology, low temperature, for -80 ℃ freeze dryer.
Optional electric defrost function, speed up the defrost speed, shorten the drying cycle.
Optional multi-brand international vacuum pump.
Hot Tags: scientz-10n/a laboratory freeze dryer, China, factory, suppliers, wholesale, customized, buy, cheap, bulk, price list, for sale
Mian technical parameters
SCIENTZ-10ND Laboratory Freeze Dryer series
| Model |
SCIENTZ-10ND/d
|
SCIENTZ-10ND/c
|
SCIENTZ-10ND/b
|
SCIENTZ-10ND/a
|
| pic |
 |
 |
 |
 |
|
Type
|
Gland Multi-manifold type
|
Common manifold type
|
Pressure cap type
|
General type
|
|
Dryer area(㎡ )
|
0.08 | 0.12 | 0.08 | 0.12 |
| Ability to capture water(Kg/batch) | 3 | 3 | 3 | 3 |
|
Schering bottle quantity
|
Φ12mm:560 Φ16mm:285 Φ22mm:165 |
Φ12mm:920 Φ16mm:480 Φ22mm:260 |
Φ12mm:560 Φ16mm:285 Φ22mm:165 |
Φ12mm:920 Φ16mm:480 Φ22mm:260 |
|
Eggplant shape bottle
|
8 | 8 | / | / |
| Ampoule Interface | / | / | / | / |
|
Plate load capacity (L)
|
1 | 1.5 | 1 | 1.5 |
|
Plate size (mm)
|
Φ180 | Φ200 | Φ180 | Φ200 |
|
Plate distance (mm)
|
70 | 70 | 70 | 70 |
|
Tray quantity(pcs)
|
3 | 4 | 3 | 4 |
|
Cold chamber
size(mm)
|
Φ250×150
|
Φ250×150
|
Φ250×150
|
Φ250×150
|
|
Cold trap the lowest
temperature(°C)
|
≤-56 (No load)
|
≤-56 (No load)
|
≤-56 (No load)
|
≤-56 (No load)
|
|
Ultimate vacuum(Pa)
|
≤5 (No load)
|
≤5 (No load)
|
≤5 (No load)
|
≤5 (No load)
|
|
Heating temperature(℃)
|
≤60
|
≤60
|
≤60
|
≤60
|
|
Power Kw(220V50Hz)
|
1.07
|
1.11
|
1.07
|
1.11
|
|
Amibient
temperature(
°C)
|
≤25
|
≤25
|
≤25
|
≤25
|
|
Temperature range
|
-55°C-+60°C
|
-55°C-+60°C
|
-55°C-+60°C
|
-55°C-+60°C
|
|
Overall dimension(mm)
|
590(L)×460(W)×400(H)
+440
|
590(L)×460(W)×400(H)
+440
|
590(L)×460(W)×400(H)
+440
|
590(L)×460(W)×400(H)
+440
|
|
Host weight(㎏)
|
67 | 61 | 65 | 59 |
