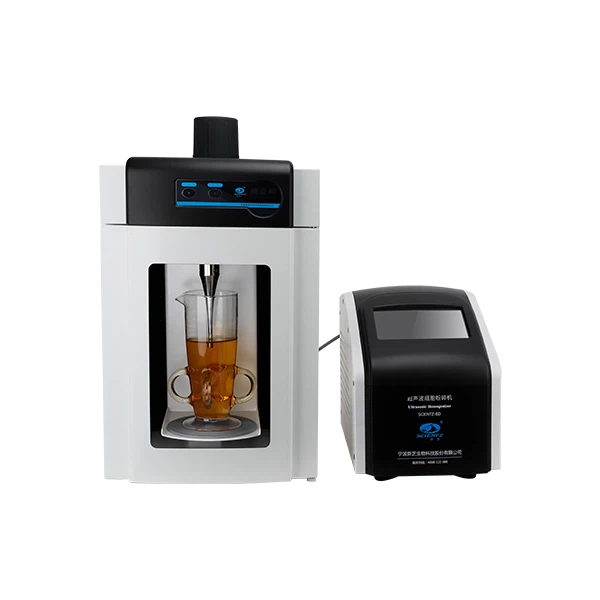

Ultrasonic Homogenizer

◣Product Overview

The JY-N Series Ultrasonic Cell Disruptor is a multifunctional and versatile instrument that processes experimental samples using ultrasonic cavitation effect. It is suitable for handling samples of different volumes (select corresponding models and probes based on volume requirements). With advantages such as continuously adjustable ultrasonic time and power, it can disrupt various animal and plant tissues, cells, and bacteria. Additionally, it can be used for emulsification, separation, dispersion, extraction, and accelerating chemical reactions. Widely applied in life sciences, materials science, environmental protection, and other fields.

◣Working Principle

Based on the cavitation effect of ultrasound in liquids, the transducer converts electrical energy into high-intensity shear force in the liquid at the top of the tool head through the amplitude transformer, forming high-frequency alternating water pressure. Cavities expand and explode to break cells. In addition, the intense disturbance generated by ultrasound propagation in liquids causes particles to produce large acceleration, resulting in collision with each other or the vessel wall to achieve the effects of disruption, emulsification, and separation.

◣Application Areas

Bioengineering

Disruption of cells, bacteria, viruses, spores, and other cellular structures;

Preparation of DNA fragmentation in high-throughput sequencing and chromatin immunoprecipitation (non-contact disruption);

Food Engineering

Homogenization of beverages using ultrasound;

Ultrasonic aging-acceleration technology for wine;

Accelerating dissolution and chemical reactions, e.g., for oil processing;

Environmental Engineering

Homogenization of soil and rock samples;

Research on structural and physical characteristics of rocks;

Biopharmaceuticals

Dispersion of injectable pharmaceutical substances;

Dispersion and extraction of Chinese herbal medicines;

Lysis, emulsification, homogenization, and disruption of particles such as carbon nanotubes and rare earth materials;

◣Product Features

Flexible Parameters: Continuously adjustable ultrasonic time and power with excellent stability;

High Stability: TC4 titanium alloy transducer (for some models);

High Safety: Equipped with over-temperature, overload, and time alarm functions;

Wide Applicability: Different models meet diverse customer needs, with a disruption volume range of 100μl-1200ml;

Optional Modes: Interval/continuous pulse modes available for small-volume sample ultrasonic cell disruptors;

◣Technical Specifications
