Ultrasonic Extraction Equipment
Description
Technical Parameters
◣Product Description

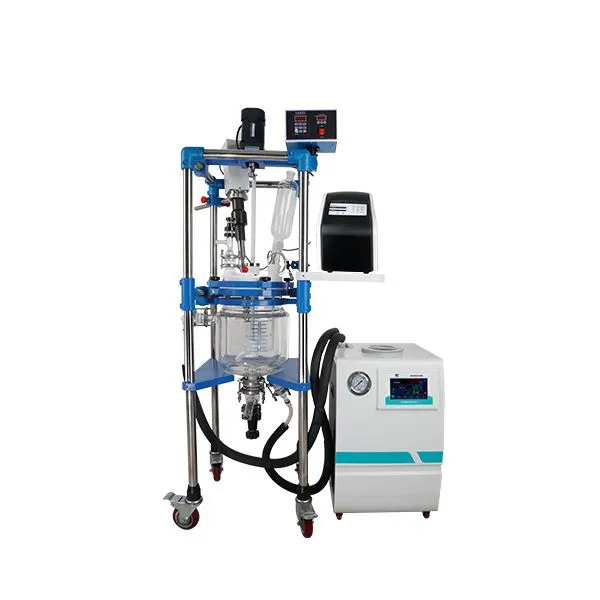

The SCIENTZ-T series ultrasonic extractor is composed of three main components: an ultrasonic cell disruptor, an energy-saving intelligent thermostatic bath, and a double-layered glass reactor. Incorporating the latest foreign technology, this instrument integrates microcomputer control, frequency selection, temperature measurement, and protection hardware and software technologies. It is a widely used ultrasonic extraction device in fields such as biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, agronomy, medicine, and pharmaceuticals.
◣Working Principle
The ultrasonic extractor utilizes intense ultrasound to generate cavitation, disruption, and emulsification effects in solids and liquids. Under temperature-controlled stirring conditions, various reactants are added in accordance with the required reaction parameters, enabling the extraction of target substances from cells.
◣Product Features
Precise Temperature Control: Equipped with a temperature measurement function to ensure accurate and reliable temperature control during the extraction process.
Flexible Parameter Setting: Ultrasonic time, power, and stirring speed can be arbitrarily adjusted within the specified range to meet different experimental requirements.
Wide Applicability: Compatible with different models of reactors, making it suitable for the diverse needs of various laboratories.
Intelligent Operation: Integrates microcomputer control, frequency selection, temperature measurement, and multiple protection technologies for stable and user-friendly operation.
◣Technical Specifications
Note: The table below details the technical parameters of different models in the SCIENTZ-T series, providing a comprehensive reference for laboratory selection.
|
Model |
SCIENTZ-5T |
SCIENTZ-10T |
SCIENTZ-15T |
SCIENTZ-30T |
SCIENTZ-50T |
|---|---|---|---|---|---|
|
Model |
SCIENTZ-5T |
SCIENTZ-10T |
SCIENTZ-15T |
SCIENTZ-30T |
SCIENTZ-50T |
|
Operating Frequency |
20-25kHz |
20-25kHz |
20-25kHz |
20-25kHz |
20-25kHz |
|
Ultrasonic Power |
20-1000(W) |
20-1200(W) |
200-1500(W) |
200-1800(W) |
250-2400(W) |
|
Double-Layer Reactor Volume |
5L |
10L |
15L |
30L |
50L |
|
Amplitude Transformer Diameter |
Φ30 |
Φ30 |
Φ30 |
Φ50 |
Φ50 |
|
Operating Voltage |
220V |
220V |
220V |
220V |
220V |
|
Ultrasonic Time |
0.1-99.9S |
0.1-99.9S |
0.1-99.9S |
/ |
/ |
|
Interval Time |
0.1-99.9S |
0.1-99.9S |
0.1-99.9S |
/ |
/ |
|
Total Time |
1-999min |
1-999min |
1-999min |
1s-59min59s |
1s-59min59s |
|
Power Setting |
1-99% |
1-99% |
1-99% |
1-99% |
1-99% |
|
Duty Cycle |
0.1-99.9% |
0.1-99.9% |
0.1-99.9% |
/ |
/ |
|
Actual Measured Temperature |
Included |
Included |
Included |
Included |
Included |
|
Stirring Power |
60W |
60W |
90W |
120W |
120W |
|
Stirring Speed |
10-600r/min |
10-600r/min |
10-600r/min |
10-600r/min |
10-600r/min |
|
Bracket |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Additive Volumetric Flask |
Included |
Included |
Included |
Included |
Included |
|
Liquid Inlet/Outlet |
Included/Included |
Included/Included |
Included/Included |
Included/Included |
Included/Included |
|
Refrigeration Equipment |
DLK-5003 |
DLK-5007 |
DLK-5010 |
DLK-5010 |
DLK-5010 |
◣Application Areas
Biopharmaceuticals: Dispersion of injectable pharmaceutical substances, herbal extraction, preparation of suspensions, and vaccine production.
Cosmetics Industry: Extraction of active ingredients from medicinal materials, particle micronization, and achievement of dispersion and emulsification effects.
Food Engineering: Application of ultrasonic aging acceleration technology in wine production.
Chemical Engineering: Ultrasonic treatment of silica scale.
For inquiries about product models, customization services, or technical support, please get in touch with our professional sales team.
