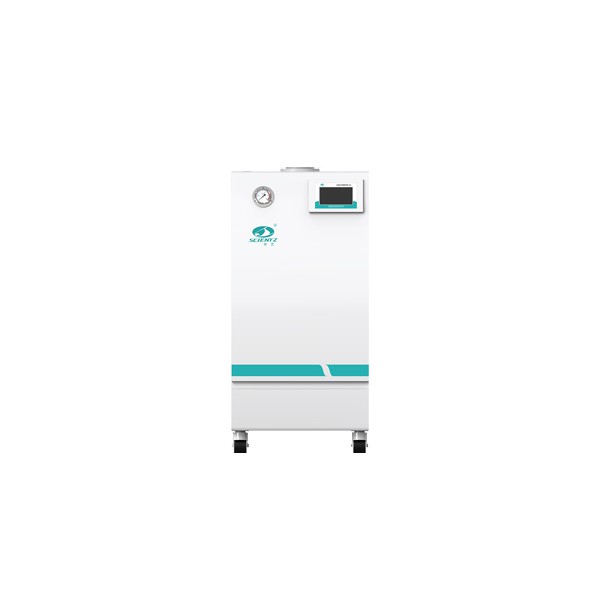

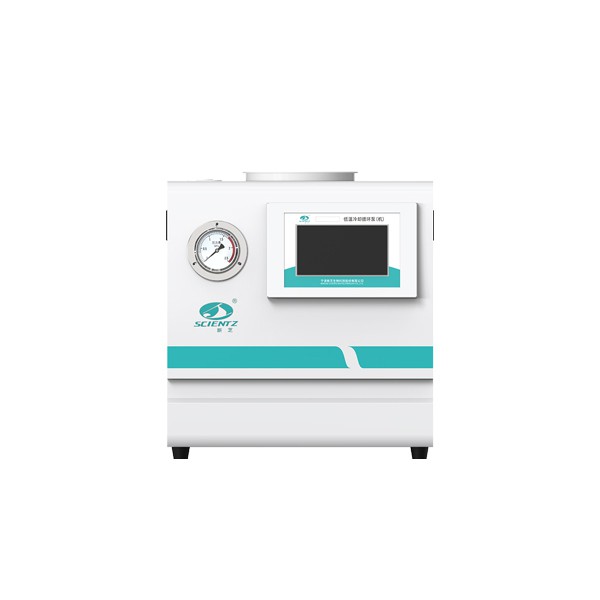

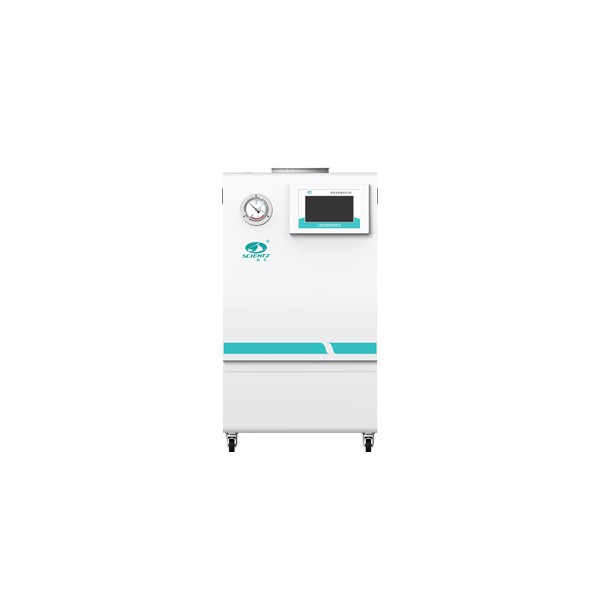

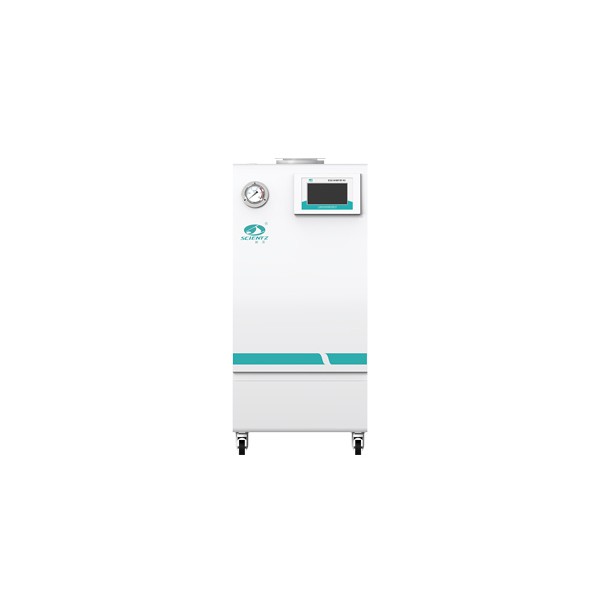

DLK Series Low Temperature Cooling Circulation Bath / Chiller For Extraction Industry Rotary Evaporator
Description
Technical Parameters
Features:
1. DLK series rapid low temperature cycle pump, is no shrinkage mechanism of low temperature cold ring liquid circulation equipment. It has the cryogenic liquid, low temperature water-bath water provide the role. Combining rotating evaporator, vacuum freezing drying oven, recycling water type vacuum pump, UV spectrophotometer etc instrument constant temperature, the temperature of the chemical reaction multi-function homework and drug store.
2. Large low temperature cooling pump persistence flow, constant pressure, circulation liquid (water) can meet electronic microscope and electron probe, ultra-high vacuum sputtering meter, the X-ray machine, laser, electronic accelerator.High purity metal, rare material purification, environment experiment, vacuum coating equipment such as the pure water cooling and large constant temperature. This machine is especially suitable for the need to maintain low temperature, normal temperature under the working conditions of the chemical, biological
reaction experiments. Is medical health, chemical industry, biological medicine, food industry, metallurgy industry, colleges and universities, scientific research, genetic engineering, polymer engineering laboratory equipment necessary.
3. The main parts by international famous instrument manufacturer of fluorine free original closed compressor set, performance,reliable quality
4. Refrigeration unit using special relays, protector, capacitor, for the original import from high quality device;
5.Microcomputer control temperature, LCD display temperature, time, the operation is simple, eye-catching;Circulation system USES corrosion materials circulation pump, have rust and corrosion resistance, prevent pollution and traffic flow, high pressure,low temperature of the pump body function; The cooling liquid can be directly used to transport the circulation within the places.
Main Technical Parameters:
|
Model |
Volume |
Temp. Range |
Temp. Stability (°C) |
Display |
Drainage |
Refrigerating capacity (0°C/w) |
Voltage |
|
DLK-1007 |
7 L |
-10°C-Ambient |
±0.5°C |
LCD |
YES |
1365w |
220V/50Hz |
|
DLK-2007 |
7 L |
-20°C-Ambient |
±0.5°C |
LCD |
YES |
1538w |
220V/50Hz |
|
DLK-4007 |
7 L |
-40°C-Ambient |
±0.5°C |
LCD |
YES |
2052w |
220V/50Hz |
|
DLK-1010 |
10 L |
-10°C-Ambient |
±0.5°C |
LCD |
YES |
2458w |
220V/50Hz |
|
DLK-2010 |
10 L |
-20°C-Ambient |
±0.5°C |
LCD |
YES |
2651w |
220V/50Hz |
|
DLK-4010 |
10 L |
-40°C-Ambient |
±0.5°C |
LCD |
YES |
2847w |
220V/50Hz |
|
DLK-1020 |
20 L |
-10°C-Ambient |
±0.5°C |
LCD |
YES |
3960w |
220V/50Hz |
|
DLK-2020 |
20 L |
-20°C-Ambient |
±0.5°C |
LCD |
YES |
5008w |
220V/50Hz |
|
DLK-4030 |
30 L |
-40°C-Ambient |
±0.5°C |
LCD |
YES |
11808w |
380V/4 lines |
Technical Parameter
|
Model |
DLK-5001 |
DLK-2002 |
DLK-5003 |
DLK-2003 |
DLK-5007 |
DLK-2007 |
DLK-5010 |
DLK-2010 |
DLK-5020 |
DLK-2020 |
DLK-5030 |
DLK-2030 |
|
|
Cooling temp range(℃) |
-5~45 |
-20~45 |
-5~45 |
-20~45 |
-5~45 |
-25~45 |
-5~45 |
-25~45 |
-5~45 |
-25~45 |
-5~45 |
-25~45 |
|
|
Display resolution(℃) |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
|
|
Temp Accuracy(℃) |
±2 |
±2 |
±2 |
±2 |
±2 |
±2 |
±2 |
±2 |
±2 |
±2 |
±2 |
±2 |
|
|
Filling volume(L) |
0.9 |
2 |
3 |
3 |
7 |
7 |
10 |
10 |
20 |
20 |
30 |
30 |
|
|
(45c /kW) |
/ |
/ |
0.76 |
0.76 |
1.36 |
1.36 |
2.6 |
2.6 |
4.5 |
4.5 |
6.4 |
6.4 |
|
|
(25c /kW) |
0.35 |
0.55 |
0.63 |
0.63 |
1.27 |
1.27 |
2.1 |
2.1 |
3.8 |
3.8 |
5.8 |
5.8 |
|
|
(20c /kW) |
0.3 |
0.53 |
0.58 |
0.56 |
1.15 |
1.15 |
2 |
2 |
3.4 |
3.4 |
5.4 |
5.4 |
|
|
(15c /kW) |
0.25 |
0.5 |
0.55 |
0.51 |
1.05 |
1.05 |
1.75 |
1.75 |
2.8 |
2.8 |
4.8 |
4.8 |
|
|
Rated capac |
(10c /kW) |
0.2 |
0.48 |
0.5 |
0.45 |
0.9 |
0.9 |
1.5 |
1.5 |
2.2 |
2.2 |
4.2 |
4.2 |
|
coolin ity |
(5c /kW) |
0.18 |
0.44 |
0.45 |
0.41 |
0.82 |
0.82 |
1.15 |
1.15 |
1.7 |
1.7 |
3.7 |
3.7 |
|
g |
(0c /kW) |
0.15 |
0.43 |
0.39 |
0.37 |
0.65 |
0.65 |
0.9 |
0.9 |
1.35 |
1.35 |
3 |
3 |
|
(-5c /kW) |
0.1 |
0.39 |
0.28 |
0.33 |
0.5 |
0.5 |
0.7 |
0.7 |
1.05 |
1.05 |
2.2 |
2.2 |
|
|
(-10c /kW) |
/ |
0.36 |
/ |
0.27 |
/ |
0.38 |
/ |
0.52 |
/ |
0.8 |
/ |
1.7 |
|
|
(-15c /kW) |
/ |
0.29 |
/ |
0.2 |
/ |
0.23 |
/ |
0.35 |
/ |
0.65 |
/ |
1.2 |
|
|
(-20c /kW) |
/ |
0.23 |
/ |
0.15 |
/ |
0.11 |
/ |
0.26 |
/ |
0.4 |
/ |
0.9 |
|
|
Circu pump lating |
Maximum flow (L/min) |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
Maximum pump pressure(bar) |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
|
|
Connecting size |
G1/2 internal thread |
||||||||||||
|
Noise(dB) |
≤ 55 |
≤ 63 |
≤ 57 |
≤ 57 |
≤ 60 |
≤ 60 |
≤ 62 |
≤ 62 |
≤ 65 |
≤ 65 |
≤ 70 |
≤ 70 |
|
|
Weight(kg) |
18 |
32 |
29 |
29 |
35.5 |
35.5 |
46 |
46 |
64 |
64 |
122 |
122 |
|
|
External dimensions L/W/H(mm) |
260 340 300 |
222 450 505 |
390 423 445 |
390 423 445 |
390 410 630 |
390 410 630 |
430 470 820 |
430 470 820 |
447 553 960 |
447 553 960 |
557 675 1193 |
557 675 1193 |
|
|
Total power(kW) |
0.2 |
0.43 |
0.55 |
0.55 |
0.65 |
0.65 |
0.77 |
0.77 |
1.2 |
1.2 |
2.4 |
2.4 |
|
|
Power supply |
220V/50Hz~1 |
||||||||||||
Note: All models above DLK-5007 can be equipped with a pressure regulating high-pressure circulation pump, with the high-pressure version model suffix marked with "G".
