SCIENTZ-1200E Probe Sonicator for Cell Lysis, Tissue Disruption and Homogenization,Ultrasonic Liquid Processor for Pilot Use
Description
Technical Parameters
Ningbo Scientz Biotechnology Co.,Ltd. is one of the leading scientz-1200e probe sonicator for cell lysis, tissue disruption and homogenization,ultrasonic liquid processor for pilot use suppliers in China. Welcome to buy our quality and cheap products for sale in bulk. We also welcome wholesale orders and customized orders. Now, please be free to check the price list with our factory.

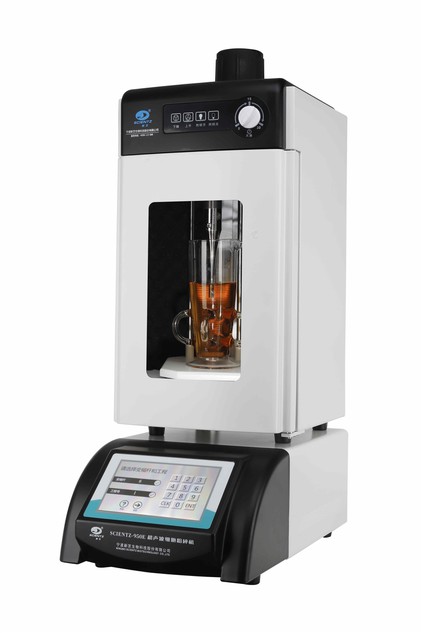

SCIENTZ-E ultrasonic homogenizer Description
SCISCIENTZ-E series of ultrasonic cell pulverizer in the conventional model based on the upgrading of a push with a number of new features of the ultrasonic cell pulverizer. Can realize the communication with the upper computer, network control and remote printing. Is widely used in:
Bacteria, viruses, spores and other cell structure lysis, crushing, leaching, extraction of plant and animal cells DNA, protein extraction, trimming DNA / RNA, chromatin immunoprecipitation technology.
Dispersion and cracking of nanomaterials such as carbon nanotubes and graphene, cracking, emulsification, homogenization and crushing of homogeneous soil, rock samples, non-ferrous metals, rare earths and other particles.
It can be used for dispersion and extraction of Chinese herbal medicine. -Bacteria, viruses, spores and other cellular materials -Can be used for dispersing, emulsifying, homogenizing and accelerating the reaction process of other samples, and is also suitable for pre-treatment of samples in the fields of chemical industry, medical treatment, archaeology, geology, oceanography, and so on.
Electric Lifting Seat
Wide range of treatments
100μl-1200ml
7-inch TFT touch screen display
High security
Temperature, time, fault alarm
Working Principle
Based on the cavitation effect of ultrasound in liquids, the transducer transfers electrical energy Through the amplitude-variable rod in the liquid at the top of the tool head to produce high-intensity shear force the formation of high-frequency alternating water pressure intensity so that the cavity expansion, explosion will be broken cells. in addition,the use of ultrasonic propagation in the liquid to produce violent perturbation effect, so that the particles produce a large acceleration.thus colliding with each other or collision with the wall to achieve theeffect of crushing, emulsification and separation.
Features
SCIENTZ-E ultrasonic homogenizer
Network Controls
Equipped with communication interface, network control can be realized
Parameter Flexibility
Ultrasonic time, power continuously adjustable, good stability
Low sample depletion
Minimum of 100μl, maximum of 1200ml
High safety
With over-temperature, overload and time alarm function, with user password protection, with UV sterilization and door lock function;
save space
Stackable to save lab tables
storage data
20 goups data
Application
Bioengineering
01
Pharmaceutical R&D
02
Foodstuffs Engineering
03
Environmental Project
04
- - Homogeneous soil and rock samples
- Breaking of cells, bacteria, viruses, spores and other cellular structures
- Preparation of DNA fragmentation
- - Structural and physical characterization of rocks
- - Dispersion of pharmaceutical substances for injection
- - Ultrasonic homogenization of beverages
- - Dispersion and extraction of herbal medicines
- - Alcoholizing and aging technologies for wine
- Cracking, emulsification, homogenization and fragmentation of particles such as carbon nanotubes and rare earth materials.
- Acceleration of dissolution and chemical reactions,
Hot Tags: SCIENTZ-1200E Probe Sonicator for Cell Lysis, Tissue Disruption and Homogenization,Ultrasonic Liquid Processor for Pilot Use, China, factory, suppliers, wholesale, customized, buy, cheap, bulk, price list, for sale
comparison of product parameters
| Model | SCIENTZ-650E(For small volume samples) |
SCIENTZ-950E(For small volume samples) |
SCIENTZ-1200E(For large volume samples) |
| Power range | 5 ～ 650W adjustable | 5 ～ 950W adjustable | 50 ～ 1200W adjustable |
| Frequency | 20-25kHz self-adaptive | 20-25kHz self-adaptive | 20-25kHz self-adaptive |
| Processing volume | 100μl ～ 500ml | 100μl ～ 600ml | 50 ～ 1200ml |
| Timing | 1 ～ 999min | 1 ～ 999min | 1 ～ 999min |
| Temperature Alarm | 0℃～ 99℃ | 0℃～ 99℃ | 0℃～ 99℃ |
| Display | Amplitude, power, temperature, time | ||
| Alarm | Temperature, time, fault | ||
| Soundproof box | 322*285*526mm | ||
| Standard | 1 main unit, 1 transducer,1 amplitude change rod, 1 set of software | ||
| Optional horn | Φ2,Φ3,Φ10,Φ12 | Φ2,Φ3,Φ10,Φ12,Φ15 | Φ15,Φ25 |
| Optional cooling cup | 30ml,100ml,400ml | 30ml,100ml,400ml | 100ml,400ml |
