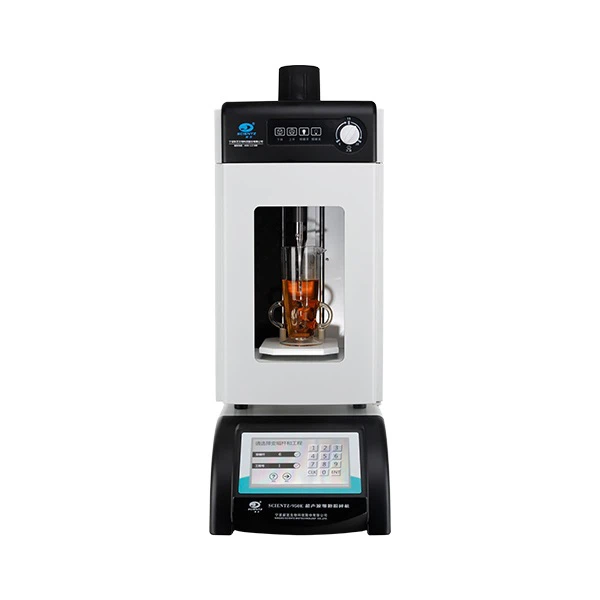

Scientz-650E Laboratory Sonicator
video

Scientz-650E Laboratory Sonicator

COMPANY INTRODUCTION Ningbo Scientz Biotechnology Co.,Ltd (Stock code:430685) established in 2001,it’a National Hi-Tech Enterprise that specialized in producing ultrasonic apparatuses and instruments that serve the needs of Scientific research ,Education,Hospital ,Pharmaceutical Industry,...
Send Inquiry

Description

Technical Parameters



◣COMPANY INTRODUCTION

Ningbo Scientz Biotechnology Co.,Ltd (Stock code:430685) established in 2001,it'a National Hi-Tech Enterprise that specialized in producing ultrasonic apparatuses and instruments that serve the needs of Scientific research ,Education,Hospital ,Pharmaceutical Industry, Environment protection , Scientz has been chosen many time of the Top ten Well-Known Brands of life Science ,Had undertaken Important National Science&Technology Specific project of MOHC and The National Development and Reform commission ,approved by ISO9001:2008 international quality management system furthermore obtained CE ,

     Scientz is the largest manufacturer of ultrasonic homogenizer in China ,As a leader worldwide

     Scientz holds multiple patents for the high-pressure gene gun ,that ranks first in Asia in quality and feature  Scientz series ultrasonic cleaner ,tissue grinder ,paddle blender, freeze dryer,water bath ,Gene transduction device ,Cell fusion apparatus etc all received positive feedback

      Scientz it's The project of scientific instrument industrialization base of National Development and Reform Commission ,the products exported to 36 countries including France ,UK ,Russia etc

Scientz had set up offices and service centers in many cities of China ,received all the good reputation from the user


◣ Features

◆ Combined with microcomputer control, using DSP plus ARM technology, the performance is more stable and the data is more precise.

It has the functions of options, temperature measurement, automatic frequency tracking, impedance adaptation, protection, and so on.

With wireless or RJ-45 interface, it can communicate with host computer. It can control network and print remotely.

Gap / continuous working mode, pulse 0.1-99.9S tunable

Data storage 20 groups, user password landing protection

7 inch TFT large screen display temperature, power, amplitude and pulse mode and work / gap time, touch control

It has self diagnostic function, automatic program error correction, overload protection and over temperature protection display.

The loudspeaker box has increased the functions of illumination, sterilization, automatic lifting, door locking and so on. The sound proof box can be put on the main engine and save time.



◣ Application

Life science: the lysis, fragmentation, leaching and extraction of bacteria, viruses, spores and other cell structures, extraction of DNA and protein in the cells of animals and plants, pruning DNA/RNA, and chromatin immunoprecipitation technology.

Material chemistry: dispersion and cracking of nanomaterials such as carbon nanotubes, graphene and other materials, such as pyrolysis, emulsification, homogenization and fragmentation of particles of homogeneous soil, rock samples, nonferrous metals and rare earth particles.

In addition, it can be used for the dispersing and extraction of Chinese herbal medicine. It can be used for the dispersion, emulsification, homogenization and acceleration process of other samples, and can also be used for sample pretreatment in chemical, medical, archaeological, geological, marine and other fields.



◣Technical Specifications

Parameter SCIENTZ-650E (Standard Model) SCIENTZ-950E (Common Model) SCIENTZ-1200E (Pilot Model)
Output Power 5~650W, Adjustable 5~950W, Adjustable 50~1200W, Adjustable
Operating Frequency 20-25KHz, Automatic Tracking & Adaptive 20-25KHz, Automatic Tracking & Adaptive 20-25KHz, Automatic Tracking & Adaptive
Sample Processing Volume 100μl~500ml (Corresponding probe required) 100μl~600ml (Corresponding probe required) 50~1200ml (Corresponding probe required)
Timing 1~999min, Programmable 1~999min, Programmable 1~999min, Programmable
Temperature Control Equipped with temperature sensor, sample temperature control (0℃~99℃) Equipped with temperature sensor, sample temperature control (0℃~99℃) Equipped with temperature sensor, sample temperature control (0℃~99℃)
Alarm Automatic sound insulation box with electric lifting device Automatic sound insulation box with electric lifting device Automatic sound insulation box with electric lifting device
External Dimensions (W×D×H) 322×285×526mm 322×285×526mm 322×285×526mm
Standard Configuration - Generator (Main Unit)- 1 Transducer- 1 Standard Probe (Φ6mm)- 1 Set of Software - Generator (Main Unit)- 1 Transducer- 1 Standard Probe (Φ6mm)- 1 Set of Software - Generator (Main Unit)- 1 Transducer- 1 Standard Probe (Φ20mm, Disruption Volume: 200ml~800ml)- 1 Set of Software

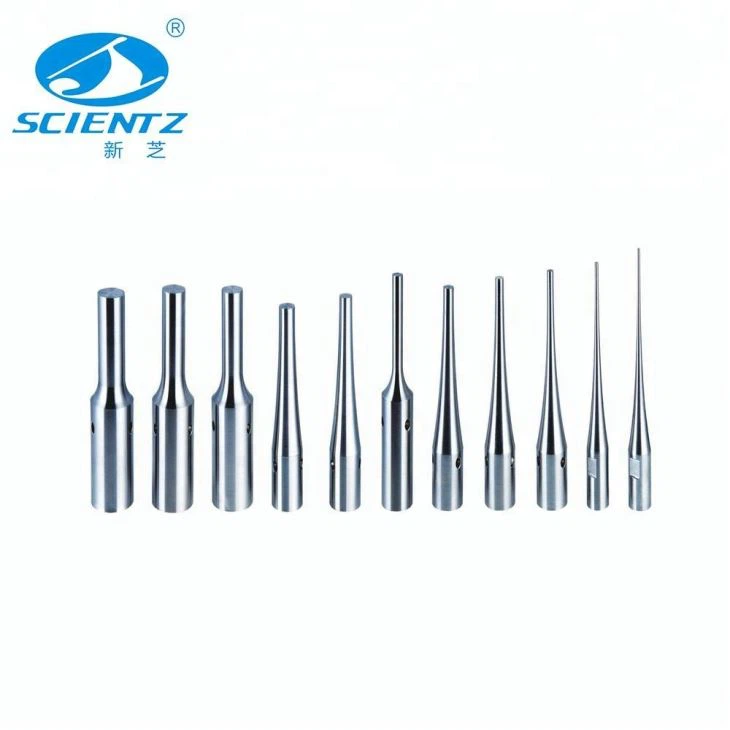

Optional Probes Φ2mm, Φ3mm, Φ10mm, Φ12mm Φ2mm, Φ3mm, Φ10mm, Φ12mm, Φ15mm Φ15mm, Φ25mm
Optional Cooling Cups 30ml, 100ml, 400ml 30ml, 100ml, 400ml 100ml, 400ml
Screen Display Amplitude, Power, Temperature, Time Amplitude, Power, Temperature, Time Amplitude, Power, Temperature, Time

Packaging & Shipping

Delivery detail:


UPS/DHL/FEDEX/TNT express are available for your choose which take 3~ 5 days to arrive,and  we will offer the tracking number for you to check the status of your items online at any time.

By air cargo which takes about one week to arrive .

By sea which takes about 20-30days to arrive , depending on your actual requirements.


Our Services

1.Warranty:

12 months warranty for scientz ultrasonic homogenizer.

If any technical problem during warranty time, replacement parts will be sent free of charge.

Technical support is also available in whole time.

2.Our Advantage

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. OEM is available if the quantity is large.

4. We offer very competitive for all our products.

3.After-sales

Our machines undergo an extensive and strict testing and quality control procedure, ensuring every item purchased meet global quality standards.It's safe and reliable quality for ultrasonic homogenizer.

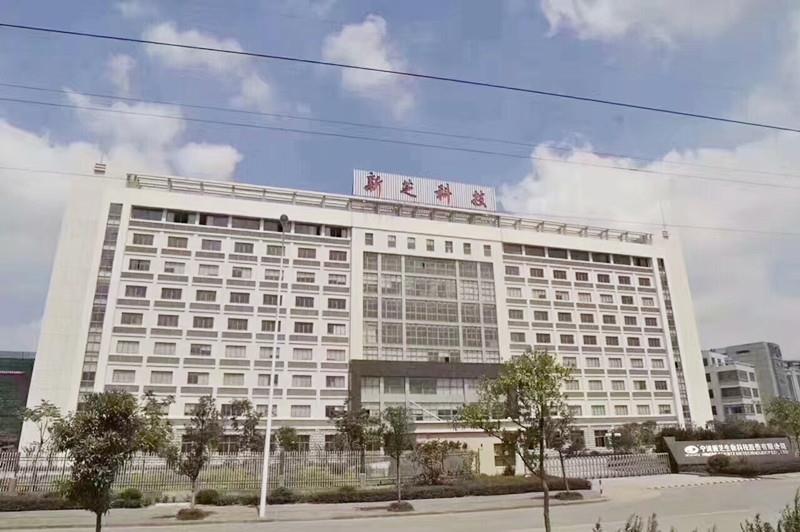

SCIENTZ FACTORY


SCIENTZ WORKSHOP


SCIENTZ EXHIBITION


SCIENTZ ACTIVITY


SCIENTZ CERTIFICATION
