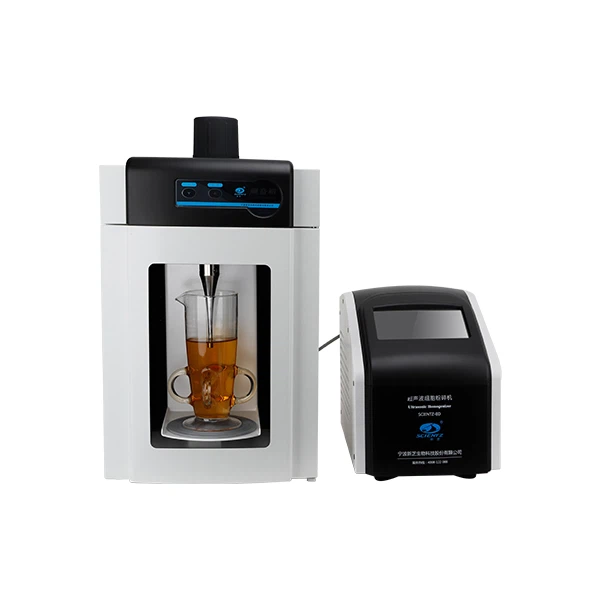

High Resolution Ultrasonic Probe Sonicator Price
video

High Resolution Ultrasonic Probe Sonicator Price

Features: 1. It adopts PWM control switch power supply, and the power is continuously adjustable 2. It adopts 7 inch TFT touch screen display, high resolution 3. Central microcomputer centralized control 4. Ultrasonic time, power arbitrary setting 5. Sample temperature detection display, power...
Send Inquiry

Description

Technical Parameters





Introduction



     Ultrasonic cell pulverizer is a multi-functional and multi-purpose instrument that uses cavitation to generate cavitation in liquid and ultrasonically treats substances. It can be used for the crushing of animal and plant tissues, cells, bacteria and spores. It can be used to emulsify, separate, disperse, homogenize, extract, degas, clean and accelerate chemical reactions.



    The machine is widely used in the fields of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology, agronomy, medicine, pharmaceuticals and other fields of teaching, research and production.



     In the development of the bio-industry, the experimental requirements for the application of ultrasonic cell pulverizers have also increased, such as the determination of sample temperature, control, the low-temperature cooling of samples and the improvement of the intelligence of the whole machine, etc., all put forward new requirements



Features:

1.It adopts PWM control switch power supply, and the power is continuously adjustable

2.It adopts 7 inch TFT touch screen display, high resolution

3.Central microcomputer centralized control

4.Ultrasonic time, power arbitrary setting

5.Sample temperature detection display, power display,microcomputer tracking,automatic fault alarm

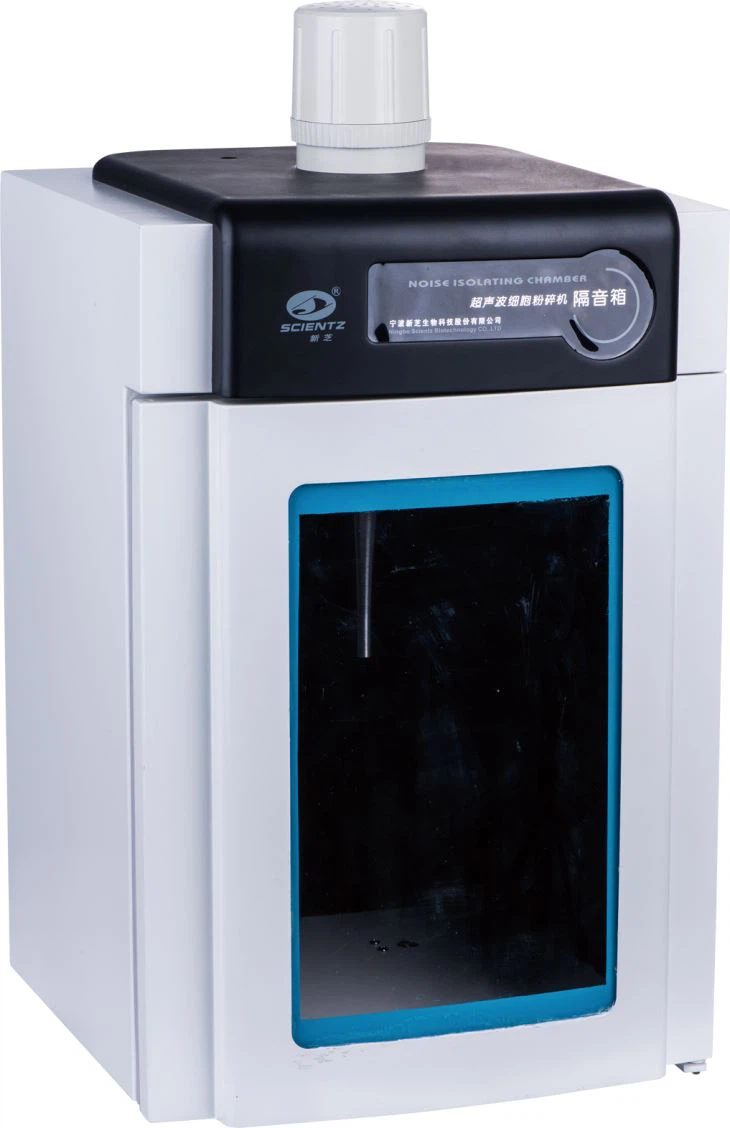

6.Sound Abating trap adopts sheet metal,spray plastic,ABS material,die design,with lock function.





Main Technical Parameters

Frequency

20-25KHZ automatic tracking

Power

950W (1%-99%)

Display

7 inch TFT touch screen

Display content

Time,Power,Temperature

Processing volume

0.5-600ml

Duty Ratio

0.1-99.9%

Accompany

Φ6mm

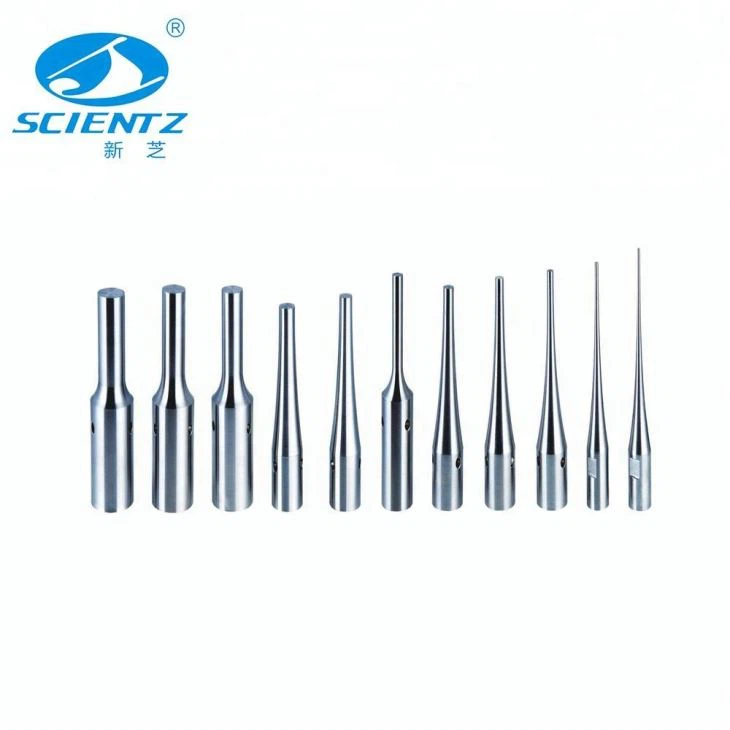

 Optional Tip

Φ2,3,10,15mm

Storage data

50 groups

Temperature alarm

0-99

Alarm

Over-temperature,Overload,   and overtime

Timing

0-999min

Working mode

Gap/Continuity

Standard configuration

Generator host 1pc,Sealed   transducer 1pc,Φ6mm Tip 1pc,Sound   Abating trap 1pc

Application



1.   Preparation of Suspensions - A solid drug is dispersed in an aqueous solution containing a surfactant under ultrasonic cavitation and vigorous agitation to form an oral or intravenous suspension of about 1 um.



Examples of "intravenous camptothecin suspension", "liver contrast agent", "barium sulfate suspension"



2.   Dispersion of pharmaceutical substances for injection - mixing phospholipids with cholesterol by mixing with an appropriate method in an aqueous solution, and dispersing by ultrasound, smaller particles (about 0.1 um) can be obtained for intravenous injection.




Packaging & Shipping

Delivery detail:


UPS/DHL/FEDEX/TNT express are available for your choose which take 3~ 5 days to arrive,and  we will offer the tracking number for you to check the status of your items online at any time.

By air cargo which takes about one week to arrive .

By sea which takes about 20-30days to arrive , depending on your actual requirements.


Our Services

1.Warranty:

12 months warranty for scientz ultrasonic homogenizer.

If any technical problem during warranty time, replacement parts will be sent free of charge.

Technical support is also available in whole time.

2.Our Advantage

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. OEM is available if the quantity is large.

4. We offer very competitive for all our products.

3.After-sales

Our machines undergo an extensive and strict testing and quality control procedure, ensuring every item purchased meet global quality standards.It's safe and reliable quality for ultrasonic homogenizer.
