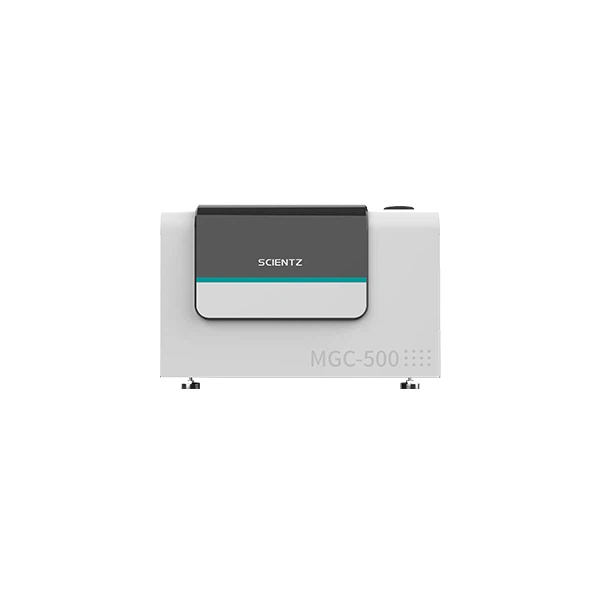

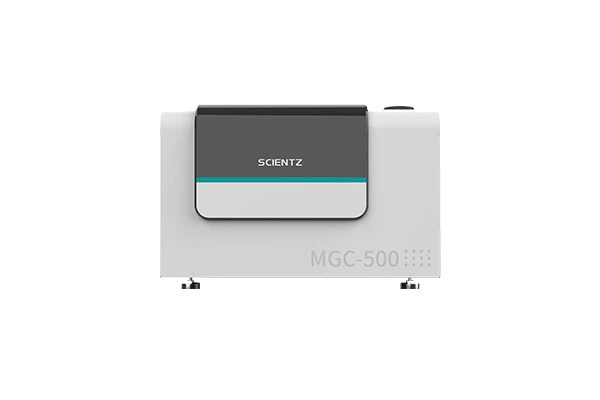

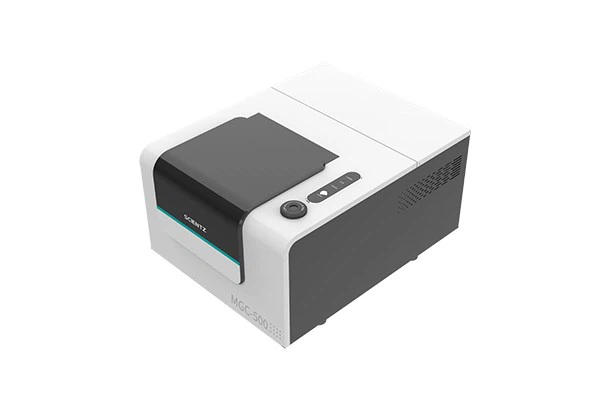

MGC-500 Series Microbial Growth Curve Analyzer

MGC-500: Advanced Microbial Growth Analysis
The MGC-500 Series is a cutting-edge, high-throughput microbial growth analysis system designed for precision, efficiency, and versatility. Whether you're studying microbial growth, optimizing fermentation, or conducting advanced research, the MGC-500 Series delivers unparalleled performance.

Key Features:

High Throughput:

Two plate positions with multiple adapters compatible with various plate sizes.

Process up to 192 samples simultaneously for maximum efficiency.

Full Spectrum Scanning:

Covers a wavelength range of 300-850nm.

Automatically identifies the optimal wavelength for your samples.

Multi-Wavelength Absorbance Detection:

Detects absorbance at multiple wavelengths (300-850nm), ideal for diverse biomass Gas Control System:

Monitors and controls O₂ and CO₂ concentrations.

Supports anaerobic environment testing for specialized microbial studies.

Light Function (Optional):

Equipped with RGBW four-color light settings for studying light cycle, wavelength, and intensity effects on algae and other light-sensitive organisms.

 High-Speed Shaking:

Shaking speeds up to 1250 rpm ensure thorough mixing and efficient microbial culture in 96-well plates.

 Accurate Assay:

Single-well multipoint assay provides higher accuracy and reproducibility compared to traditional center-point reading.

Energy Xenon Lamp:

Delivers high resolution, high sensitivity, and fast detection.

Stable, long-life light source eliminates frequent replacements.

 Efficient Temperature Control:

Cooling and heating modules maintain a temperature range of 15-60°C (15-45°C with gas control enabled).

Mid-culture temperature adjustments facilitate specific metabolite accumulation.

Anti-condensation thermal cover design ensures consistent performance.

 Advanced Denoising Algorithm:

Optimized algorithm removes background noise for cleaner, more accurate growth curves.

 User-Friendly Operating System:

Standard preset programs for easy operation and data processing.

Supports customizable templates for personalized settings and analysis.

Escherichia coli is one of the most common microor ganisms in the laboratory. It is a Gram-negative short bacillus with a size of 0.5 × 1-3 μm. It has perinatal flagella, can move, and has no spores.	Fission yeast is a typical biological model of cell division and is widely used in cell biology research. It is 4~5×8~15μm in size, easy to settle, and requires a high speed to mix.	Lactobacillus rhamnosus is an anaerobic, acid-resistant, non-spore-forming Gram-positive probiotic with a size of 0.8~1.0×2~4μm. It is usually cultured statically and easy to aggregate and low-speed rotational culture in MGC-200 can avoid agglomeration.	Lactobacillus plantarum is a kind of lactic acid bacteria, anaerobic or facultative anaerobic, 0.9~1.2×3~8μm in size, round-ended straight bacteria. Usually lacks flagella, but is able to move. Gram positive, non-spore forming.
Escherichia coli growth curve	Fission yeast growth curve	Lactobacillus rhamnosus growth curve	Lactobacillus plantarum growth curve
(Incubation temperature 36°C, 96-well plate, incuba tion volume 200μL, incubation time 24hr, interval time 10min)	(Incubation temperature 30°C, 48-well plate, incubation volume 500μL, incubation time 24hr, interval 30min)	(Incubation temperature 37°C, 12-well plate, incubation volume 2400μL, incubation time 72hr, interval 30min)	(Incubation temperature 37°C, 12-well plate, incubation volume 2400μL, incubation time 24hr, interval 30min)

Why Choose the MGC-500 Series?

Versatile: Ideal for synthetic biology, metabolic engineering, fermentation optimization, and more.

Efficient: High-throughput design saves time and resources.

Precise: Advanced features ensure reliable, reproducible results.

Why We Outshine Competitors?
Broad Spectrum Detection (300-850nm): No more single-wavelength blind spots!
Flexible Consumables: 12/24/48/96-well plates-scale your experiments effortlessly!
Gas-Sipping Design: Uses 90% less gas than clunky incubators-budget-friendly science!

Who's Using It? Where?
Labs & Academia: Synthetic Biology, Food Science, Microorganism, Metabolic Engineering, etc.
Hospitals: Rapid pathogen growth analysis for precision antimicrobial therapy!
Biotech & Pharma: Probiotic R&D, Fermentation Optimize, preservative testing-data-driven decisions!

MGC-500: The Ultimate Upgrade
The MGC-500 offers all the features of the MGC-200-and more! With enhanced capabilities and advanced functionality, it's the perfect choice for labs seeking greater performance and versatility.
