Automated Transdermal Diffusion Cell System TDS-1012 For Cosmetic Products
video

Automated Transdermal Diffusion Cell System TDS-1012 For Cosmetic Products

The instrument is mainly used for in vitro release test and in vitro transdermal test of semi-solid preparation. as well as for cosmetic products, such as ointment, gels,transdermal patches,face masks,lotion,cream,sunscreen etc.
Send Inquiry
Download

Description

Technical Parameters

Products Description




Transdermal Diffusion Cell system 2

Automated Transdermal Diffusion Cell system TDS-1012

The instrument is mainly used for in vitro release test and in vitro transdermal test of semi-solid preparation.
In vitro drug release test and in vitro transdermal test are important means to evaluate the drug release behavior of semi-solid formulations, to improve drug formulation and to predict drug effects.
Dry Heating Method
Dry heating method for even temperature ,precise
controlling (± 0.2 ℃)

Bubble Free

Ensure that the
membrane is in full
contact with the
receiving medium for a long period of time.

Penetration Cup

Good heat transfer
Performance and construction
in accordance with
USP<1724> requirements.

12-Cell Design

Different temperatures and
stirring speeds can be set to
meet the needs of both test
and reference formulations.





Automatic Cleaning

Automatic cleaning and emptying of
the diffusion cell and piping system
at the end of the experiment.

High Precision Syringe Pumps

High-precision imported syringe pump,
automatic positioning to achieve fast
and accurate sampling, sampling error
≤ 0.08ml.








Meets International Standards

Comply with the performance test requirements of USP<1724> standard, strictly control the supply cell, orifice diameter and receiving cell volume size error.




Automatic Intelligent Controls

With fixed-point, timed, quantitative automatic sampling equipment, can help customers do automatically complete the sample sampling, sample collection, media back to fill the experimental process.




Convenient And Flexible Operation

12 independent vertical diffusion cells, can meet the dual 6-cell application scenario,each reaction cell can be independently controlled to receive media in and out




One-stop Solution

Located in 27 cities around the world,with 50 delivery centers,7x24 hours delivery capacity,is the best partner for enterprise globalization








Features

TDS-1012 AUTOMATED TRANSDERMAL DIFFUSION SYSTEM

12-Cell Design

12-Cell Design

Different temperatures and
stirring speeds can be set to
meet the needs of both test
and reference formulations.
TDS-1012 1

Dry Heating Method

Dry heating method for even
temperature , precise
controlling (± 0.2 ℃).
Vessel Cover

Vessel Cover

Designed to ensure
constant temperature and
protect media from light,
reducing evaporation.



Bubble Free

Bubble Free

Ensure that the
membrane is in full
contact with the
receiving medium for
a long period of time.

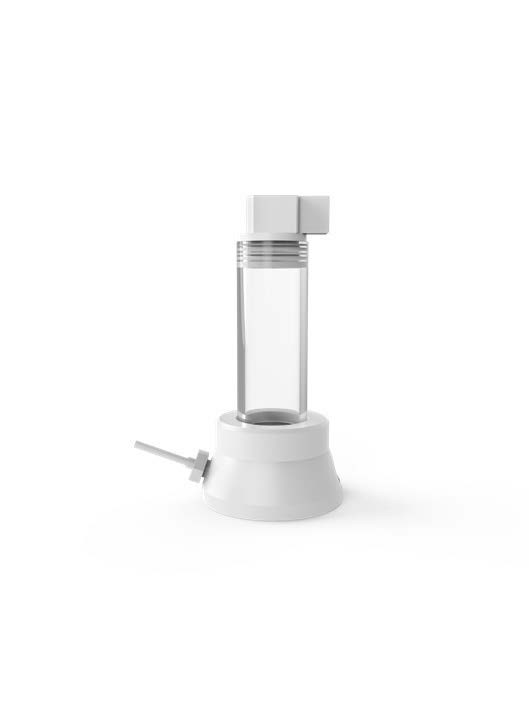

Penetration Cup

Penetration Cup

Good heat transfer
Performance and construction
in accordance with
USP<1724> requirements.














Hot Tags: automated transdermal diffusion cell system tds-1012 for cosmetic products, China, factory, suppliers, wholesale, customized, buy, cheap, bulk, price list, for sale



TDS-1012 AUTOMATED TRANSDERMAL DIFFUSION SYSTEM Main Technical Parameters
Number Of Diffusion Cells 12 Number Of Samples Taken 20times
Diffusion Cell Heating Range RT.～45.0℃ Input Power 220Vac±10% 50/60Hz 10A
Temperature Resolution 0.1℃ Power 500W
Temperature Control Accuracy ±0.2℃ Dimension 975mm*580mm*470mm
Rotation Speed Range 10-1000rpm Weight 102Kg
RPM Resolution 0.1 rpm Operating Temp. 10~30℃
Rotation Speed Accuracy ±0.5 rpm Storage Temperature -20~60℃
Sampling Accuracy ≤0.08mL Operating Humidity 20~80％RH
Sampling Volume 0.1mL～10mL Storage Humidity 5~95％RH



Accessories




Standard：

TDS-1012 inlet tube assembly
TDS-1012 drain tube assembly
TDS-1012 see-through window
TDS-1012 0.5ml rotor assembly

TDS-1012 sample rack
tube 10mL 13mm*130mm
silicone mat
power cable

operation manual
2mm dosing ring





Options/Supplies：

TDS-1012 3.5ml rotor assembly
TDS-1012 4.5ml rotor assembly
TDS-1012 5.5ml rotor assembly
TDS-1012 6.5ml rotor assembly
TDS-1012 7.5ml rotor assembly

1mm dosing ring
3mm dosing ring
5mm dosing ring
