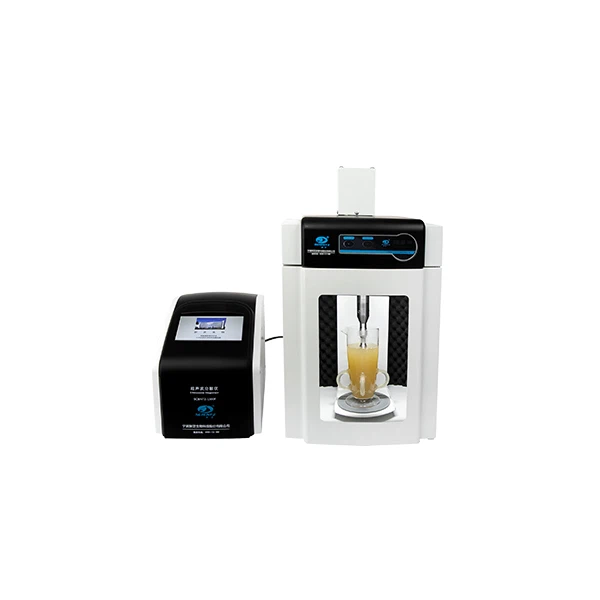

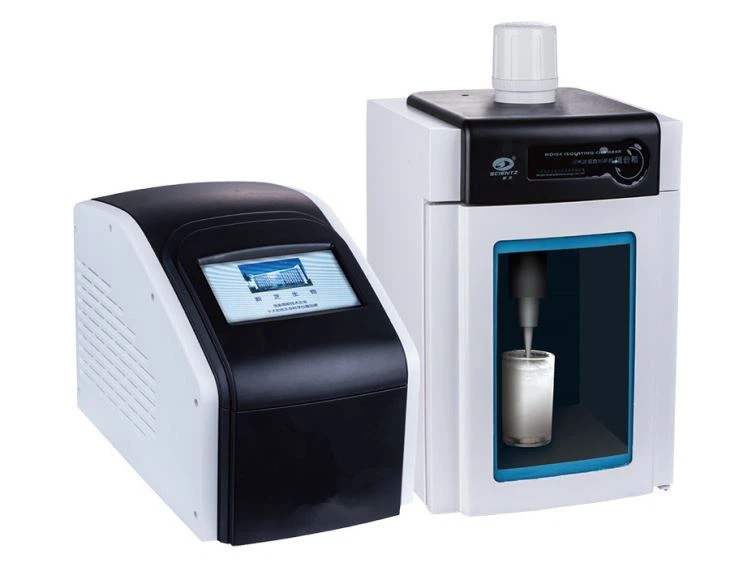

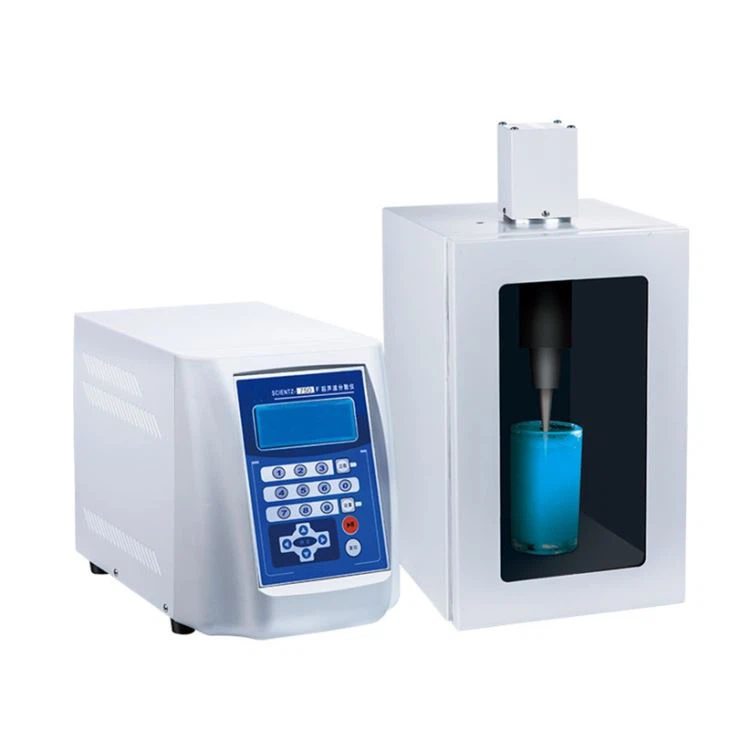

Ultrasonic Dispersion Homogenizer
Ultrasonic dispersion method: Ultrasonic waves have the characteristics of short wavelength, approximate linear propagation, and easy energy concentration. Ultrasonic waves can increase the rate of chemical reactions, shorten the reaction time, increase the selectivity of the reaction, and also...
Send Inquiry
Description
Technical Parameters
Ultrasonic dispersion method: Ultrasonic waves have the characteristics of short wavelength, approximate linear propagation, and easy energy concentration. Ultrasonic waves can increase the rate of chemical reactions, shorten the reaction time, increase the selectivity of the reaction, and also stimulate chemical reactions that cannot occur in the absence of ultrasonic waves.
Main Technical Parameters：
| Specification | SCIENTZ-750F | SCIENTZ-1500F | SCIENTZ-2400F | SCIENTZ-3000F |
|---|---|---|---|---|
| Ultrasonic Frequency | 20.0KHz±0.5KHz | 20.0KHz±0.5KHz | 20.0KHz±0.5KHz | 20.0KHz±0.5KHz |
| Display Mode | 7-inch touch screen | 7-inch touch screen | 7-inch touch screen | Digital display |
| Timing Function | 1-999 min timing | 1-999 min timing | 1-999 min timing | 1-999 min timing or long-time continuous operation without timing |
| Ultrasonic Power | 750W (1%-100%) | 1500W (1%-100%) | 2400W (1%-100%) | 3000W (20%-100%) |
| Standard Dispersing Probe | 10mm | 18mm | 25mm | 38mm |
| Dispersion Volume | 10-700ml | 100-1500ml | 500-2000ml | 1000-5000ml |
| Duty Cycle | 0.1-99.9% | 0.1-99.9% | 0.1-99.9% | Sweep frequency operation with/without interval |
| Alarm Function | Timing, temperature, overload | Timing, temperature, overload | Timing, temperature, overload | Timing, overload |
| Power Supply Cabinet Dimensions (mm) | 416×244×300 | 416×244×300 | 416×244×300 | 355×390×142 |
| Standard Configuration | 1 main unit, 1 dispersing probe, 1 sound insulation box | 1 main unit, 1 dispersing probe, 1 sound insulation box | 1 main unit, 1 dispersing probe, 1 sound insulation box | 1 main unit, 1 dispersing probe, 1 sound insulation box |
| Power Supply | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz |
