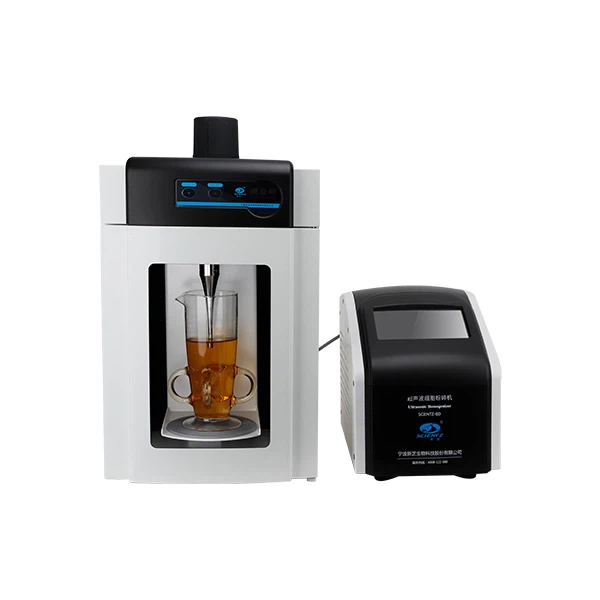

Newest Cup Form Industrial Nano Material Homogenizer
Description
Technical Parameters
◣Product Overview
It can be used for asepsis and ultra-micro crushing, and can break chromosomes and cells through centrifuge tubes. Tailored for sample pretreatment in next-generation sequencing (NGS) DNA samples and chromatin immunoprecipitation (ChIP) assays, it offers distinct advantages over traditional probe-type ultrasonic homogenizers. With non-contact sample disruption in sealed containers, it eliminates aerosol generation, avoids probe-sample contact, and prevents cross-contamination, ensuring higher efficiency and safety.
Multiple samples can be processed simultaneously, significantly improving experimental efficiency without frequent probe operations. All products are placed in separate sealed tubes to further avoid cross-contamination. An optional cooling water circulation system is available, facilitating ultrasonic treatment of samples at 4°C in the bath. It features uniform energy distribution and complete ultrasonic effects, with flexible parameter settings and standardized experimental procedures that ensure good repeatability and reliable results.
Gradually becoming an indispensable standardized tool for ChIP and DNA shearing research platforms, it delivers high experimental efficiency, reliable results, and excellent repeatability. It can handle samples as small as 5μL, making it suitable for precious samples.
◣Core Advantages
No aerosol generation: Enhances biological safety (e.g., for Mycobacterium, viruses, etc.).
Eliminates the risk of sample cross-contamination.
Avoids the residue phenomenon common with traditional probes.
Capable of processing multiple samples with a wide range of handling capabilities.
Compatible with various standard containers.
Suitable for microscale samples, with a minimum volume of 5μL.
Automatic continuous rotation of centrifuge tubes ensures more uniform ultrasonic energy distribution.
Optional low-temperature water bath and rotating bases for Eppendorf tubes of various diameters are available based on customer needs.
◣Application Areas
DNA Fragmentation
RNA Fragmentation
Bacteria and cell breakdown
ChIP assay (Chromatin Immunoprecipitation)
High-throughput sequencer sample pretreatment
Membrane protein extraction
Homogeneous emulsification reaction
Ultrasonic treatment of precious reagents
◣Main Technical Parameters
|
Parameters |
JY96-IIN |
JY88-IIN |
JY88-PRO |
JY92-IIN |
JY92-IIDN |
|---|---|---|---|---|---|
|
Frequency |
20-25kHz |
20-25kHz |
20-25kHz |
20-25kHz |
20-25kHz |
|
Display Mode |
7-inch touch screen |
7-inch touch screen |
7-inch touch screen |
7-inch touch screen |
7-inch touch screen |
|
Power |
150W(1%-100%) |
250W(1%-100%) |
450W(1%-100%) |
650W(1%-100%) |
900W(1%-100%) |
|
Standard Amplitude Transformer |
6mm |
6mm |
6mm |
6mm |
6mm |
|
Optional Amplitude Transformer |
3mm |
3mm |
3mm |
2mm, 3mm, 10mm |
2mm, 3mm, 10mm, 12mm, 15mm |
|
Disruption Volume |
10-100ml |
10-200ml |
10-200ml |
100μl-500ml |
100μl-600ml |
|
Duty Cycle |
0.1-99.9% |
0.1-99.9% |
0.1-99.9% |
0.1-99.9% |
0.1-99.9% |
|
Temperature Alarm |
0-99.9℃ (prevents sample overheating) |
0-99.9℃ (prevents sample overheating) |
0-99.9℃ (prevents sample overheating) |
0-99.9℃ (prevents sample overheating) |
0-99.9℃ (prevents sample overheating) |
|
Alarm Functions |
Time, Overload |
Time, Overload |
Time, Overload |
Time, Overload |
Time, Temperature, Overload |
|
Power Supply & Chassis Size |
430*245*300mm |
430*245*300mm |
430*245*300mm |
430*245*300mm |
430*245*300mm |
|
Weight (Main Unit + Transducer) |
8.4Kg |
8.5Kg |
8.5Kg |
9.5Kg |
9.6Kg |
|

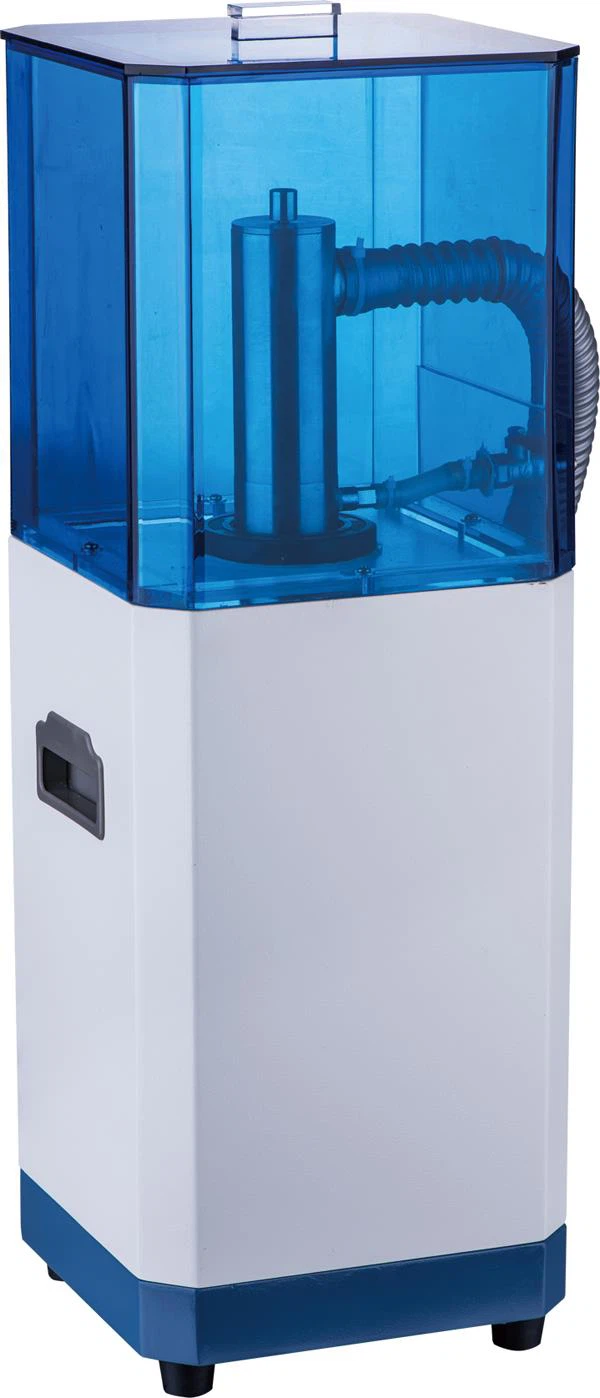

Sound Insulation Box Size |
345*345*535mm |
345*345*535mm |
345*345*535mm |
345*345*535mm |
345*345*535mm |
|
|
|---|
