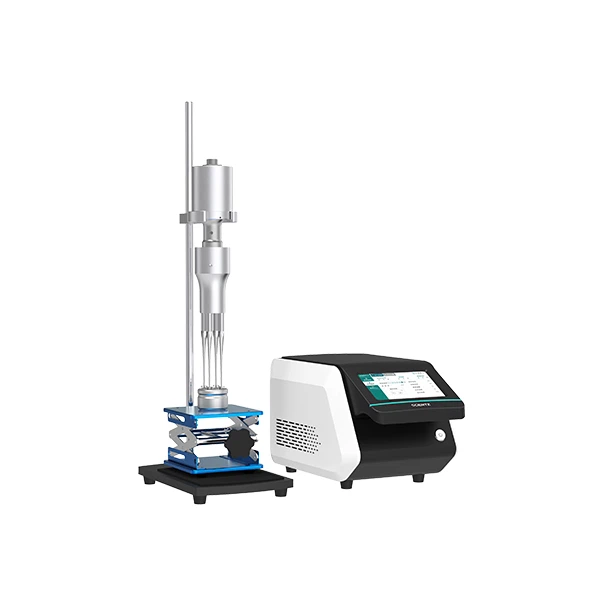

Multi-proble Ultrasonicator
Description
Technical Parameters
Ningbo Scientz Biotechnology Co.,Ltd. is one of the leading multi-proble ultrasonicator suppliers in China. Welcome to buy our quality and cheap products for sale in bulk. We also welcome wholesale orders and customized orders. Now, please be free to check the price list with our factory.
The SCIENTZ-TD Series Multi-Channel Ultrasonicator is an advanced upgrade of conventional ultrasonic homogenizers, engineered to boost lab productivity with simultaneous multi-sample processing. Equipped with 4/6/8/16/24/48/96 probes, it delivers unmatched speed, efficiency, and result reproducibility for a wide range of applications.
▍Core Advantages & Applications
High-Throughput Processing: Multiple probes enable parallel handling of samples, drastically cutting down batch processing time while ensuring consistent outcomes across all samples.
Versatile Functionality: Ideal for cell disruption (plant, animal, viral), emulsification, homogenization, extraction, degassing, cleaning, and accelerating chemical reactions.
Broad Industry Use: Widely adopted in biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physics, and zoology.
▌Key Technical Features
Powerful & Precise Ultrasonic System: 2400W output with 1–100% stepless power adjustment, adapting to diverse sample types and processing requirements; fixed frequency of 20KHz±0.5 for stable performance.
Flexible Sample Capacity: Supports volumes from 100μl to 50ml, with probe diameters of Φ3mm or Φ6mm to match different sample sizes.
Intelligent Operation: 7-inch TFT touch screen for clear visualization of 7 key parameters (temperature, power, pulse mode, time, etc.); stores up to 20 sets of operational data for quick process replication.
Comprehensive Protection: Built-in self-diagnostic function, automatic error correction, overload protection, and over-temperature protection for safe, reliable operation; comes with a soundproof box to reduce noise pollution.
Dual Working Modes: Gap/continuous operation available, with adjustable pulse intervals (0.1–99.9s) for customized processing workflows.
▍Technical Parameters
| Parameter | SCIENTZ-4TD | SCIENTZ-6TD | SCIENTZ-8TD | SCIENTZ-16TD | SCIENTZ-24TD | SCIENTZ-48TD | SCIENTZ-96TD |
|---|---|---|---|---|---|---|---|
| Ultrasonic Power | 2400W | 2400W | 2400W | 2400W | 2400W | 2400W | 2400W |
| Frequency | 20KHz±0.5 | 20KHz±0.5 | 20KHz±0.5 | 20KHz±0.5 | 20KHz±0.5 | 20KHz±0.5 | 20KHz±0.5 |
| Number of Tips | 4 | 6 | 8 | 16 | 24 | 48 | 96 |
| Crushing Capacity | 1–20ml | 1–50ml | 1–20ml | 1–20ml | 100μl–5ml | 100μl–4ml | 100μl–0.5ml |
| Power Adjustable Range | 1–100% | 1–100% | 1–100% | 1–100% | 1–100% | 1–100% | 1–100% |
| Tip Diameter | Φ6mm | Φ6mm | Φ6mm | Φ6mm | Φ3mm | Φ3mm | Φ3mm |
| Working Mode | Gap/Continuous | Gap/Continuous | Gap/Continuous | Gap/Continuous | Gap/Continuous | Gap/Continuous | Gap/Continuous |
| Pulse Adjustment | 0.1–99.9s (gap/working) | Same as left | Same as left | Same as left | Same as left | Same as left | Same as left |
| Temperature Sensor | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operation Mode | Touch Control | Same as left | Same as left | Same as left | Same as left | Same as left | Same as left |
| Display Mode | 7-inch TFT | Same as left | Same as left | Same as left | Same as left | Same as left | Same as left |
| Display Content | 7 types (temp, power, etc.) | Same as left | Same as left | Same as left | Same as left | Same as left | Same as left |
| Protection Device | Self-diagnostic, error correction, overload/over-temperature protection | Same as left | Same as left | Same as left | Same as left | Same as left | Same as left |
