Lab Ultrasonic Homogenizer For Dispersing Sonicator Processing And Mixing Liquid Chemicals

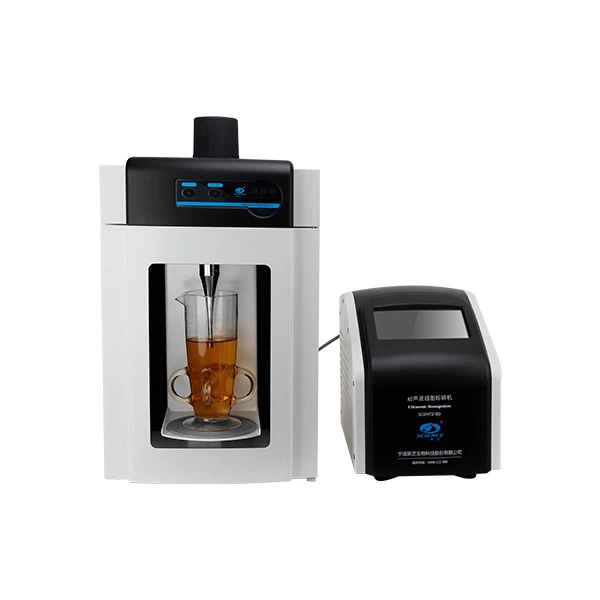

The Scientz-IID Ultrasonic Cell Disruptor is a multi-functional, versatile instrument that processes experimental samples leveraging ultrasonic cavitation effect. Depending on the optional probe selected, it can handle samples with a volume range of 100μl to 600ml. Featuring continuously adjustable ultrasonic time and power, it is suitable for disrupting various animal and plant tissues, cells, and bacteria. Additionally, it can be used for emulsification, separation, dispersion, extraction, and accelerating chemical reactions. The product is widely applied in fields such as life sciences, materials science, and environmental protection.

◣Key Advantages

Flexible Parameters: Continuously adjustable ultrasonic time and power with excellent stability.

Intelligent Storage: Capable of creating and storing up to 20 sets of operating programs.

High Safety: Equipped with over-temperature, overload, and time alarm functions.

Minimal Sample Loss: Processes samples from as small as 100μl to as large as 600ml.

Dual Modes: Optional intermittent/continuous pulse operation modes.

Premium Transducer: Standard titanium alloy transducer offers higher energy conversion efficiency, stability, durability, and suitability for long-term operation compared to conventional transducers.

◣Working Principle

Based on the cavitation effect of ultrasonic waves in liquids, the transducer converts electrical energy into high-intensity shear force in the liquid at the top of the probe via the horn, generating high-frequency alternating water pressure. This causes cavitation bubbles to expand and implode, breaking down cells. Furthermore, the intense disturbance produced by ultrasonic wave propagation in liquids imparts significant acceleration to particles, leading to collisions between particles or with the vessel wall to achieve disruption, emulsification, and separation effects.

Ultrasonic Cell Disruptor Working Principle Diagram

◣Application Fields

Bioengineering

Disruption of cells, bacteria, viruses, spores, and other cellular structures;

Preparation of DNA fragmentation for high-throughput sequencing and chromatin immunoprecipitation (non-contact disruption);

Food Engineering

Homogenization of beverages;

Aging acceleration of alcohol (aging promotion technology);

Accelerating dissolution and chemical reactions (e.g., for oil processing);

Environmental Engineering

Homogenization of soil and rock samples;

Research on structural and physical characteristics of rocks;

Biopharmaceuticals

Dispersion of pharmaceutical substances for injection;

Dispersion and extraction of Chinese herbal medicines;

Lysis, emulsification, homogenization, and disruption of particles such as carbon nanotubes and rare earth materials;

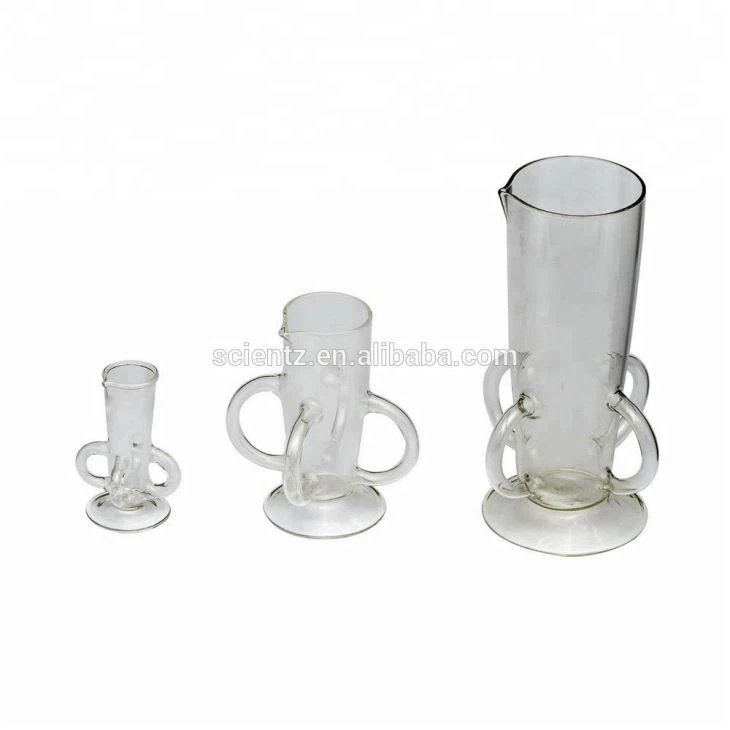

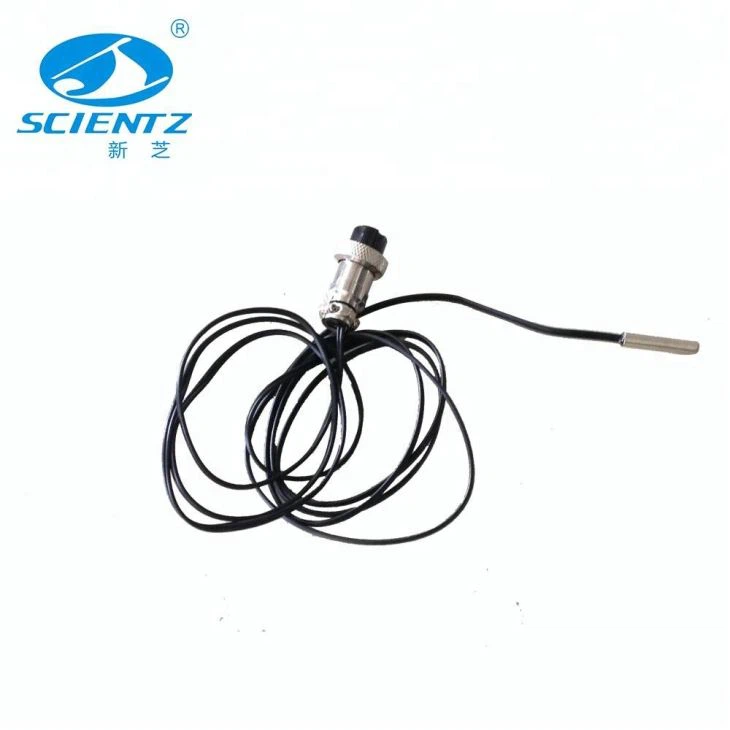

Photo Details

◣FAQ

 Are There Training for Customers or our ?

We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users' technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.otherwise,we supply with Instructions in English language for each machine.
