Constant Temperature Ultrasonic Extractor

Ningbo Scientz Biotechnology Co.,Ltd. is one of the leading constant temperature ultrasonic extractor suppliers in China. Welcome to buy our quality and cheap products for sale in bulk. We also welcome wholesale orders and customized orders. Now, please be free to check the price list with our factory.

The constant temperature ultrasonic extractor adopts a 20KHZ focusing high-power ultrasonic transducer, directly immersing the ultrasonic probe in a container for holding materials, the temperature sensor measures the temperature of the material, and puts the container containing the material into the constant temperature container, according to the user. It is necessary to set the required temperature so that the material can be sufficiently extracted/extracted under the direct action of ultrasonic waves in a low temperature and constant temperature environment.

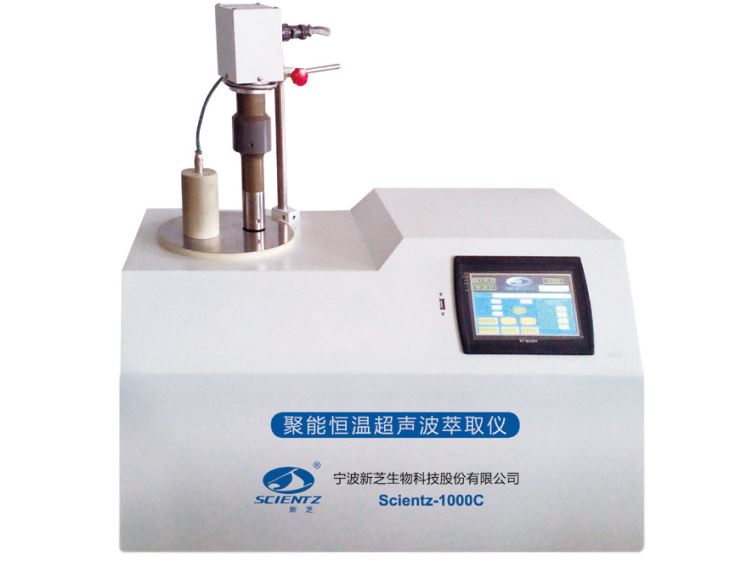

The SCIENTZ-1000C Concentrated Constant Temperature Ultrasonic Extractor is a cutting-edge ultrasonic extraction device that integrates modern ultrasonic technology with an intelligent low-temperature constant temperature system. Compared to general phase transfer catalysis and mechanical stirring, the instrument's ultrasonic secondary effect facilitates more thorough mixing and smoother reactions of reactants. It also meets different customers' requirements for reaction temperature. Key specifications include: maximum ultrasonic power of 1000W, a 1000ml reaction bottle volume, a Ф20mm probe diameter, and adjustable power ranging from 30% to 100%.

The Constant Temperature Ultrasonic Extractor is an advanced ultrasonic extraction device that integrates modern ultrasonic technology with an intelligent low-temperature constant temperature system. Unlike conventional phase transfer catalysis and mechanical stirring, the instrument's ultrasonic secondary effects enable more thorough mixing and smoother reactions of reactants. It also accommodates diverse customer requirements for reaction temperature control. Ultrasonic technology, as a physical catalytic method, is increasingly adopted in chemical laboratories and is currently widely applied in the pharmaceutical industry, chemical industry, universities, and research laboratories.

Working Principle

The device utilizes the cavitation effect of ultrasound to increase the movement frequency and velocity of substance molecules, thereby enhancing solvent penetration and improving the dissolution rate of extracted components. Additionally, secondary effects of ultrasound-such as thermal and mechanical effects-accelerate the diffusion of extracted components, ensuring full mixing with the solvent and optimizing extraction efficiency.

Technical Features

Intelligent Frequency Tracking
Automatically achieves the optimal ultrasonic effect by dynamically tracking frequency according to the reaction environment.

High Efficiency
The integration of ultrasonic technology with a constant temperature control system ensures more complete reactions.

Flexible Parameters
Ultrasonic power, operation time, and reaction temperature are all adjustable.

Modular Operation Mode
The high-power ultrasonic system and constant temperature control system can be used in combination or independently.

User-Friendly Operation
A specialized multi-neck reaction bottle supports the introduction of various gases into the reaction and enables continuous reagent addition.

Intelligent Data Management
Capable of setting and storing process data, as well as monitoring working status in real time.

Enhanced Safety
Equipped with fault self-diagnosis and alarm prompt functions.
