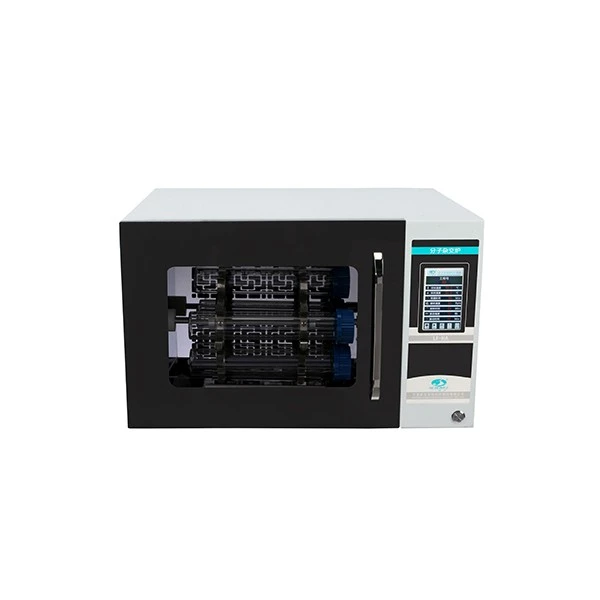

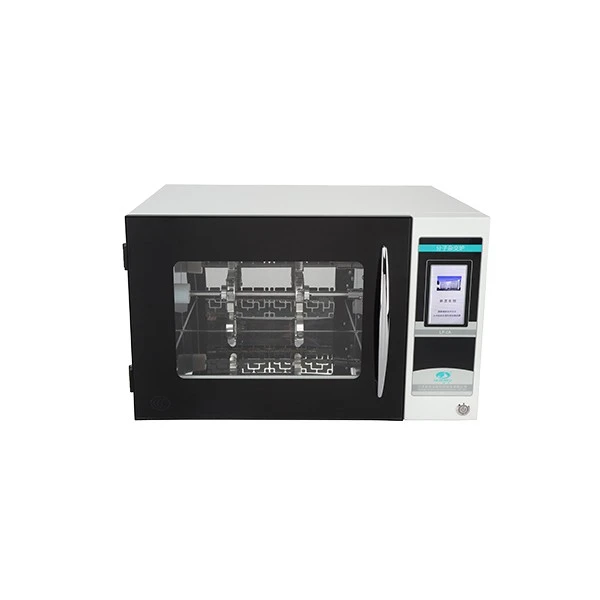

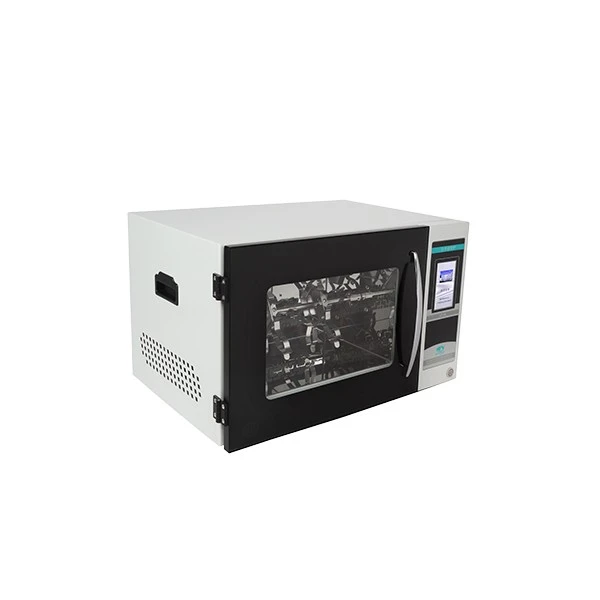

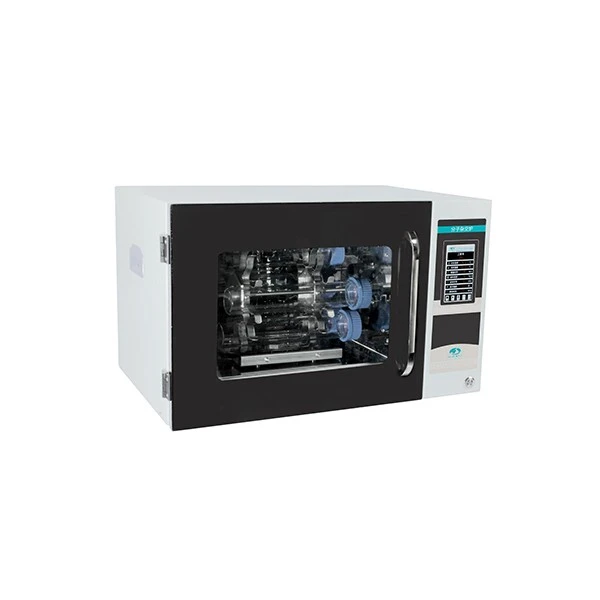

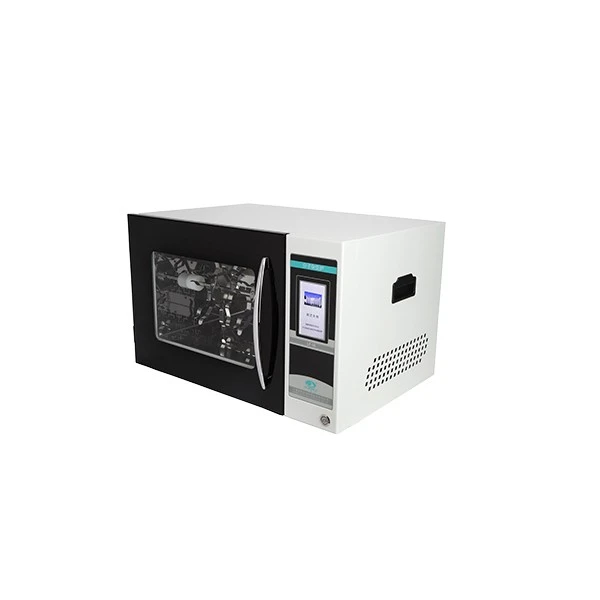

Hybridization Oven
The LF series molecular hybridization furnace features a modular design, simple structure, and reliable operation. The system is controlled by a microcomputer with a touchscreen display. The tempered glass door is not only aesthetically pleasing but also enhances the operator's field of vision. It maintains a constant temperature range of +8℃ to 100℃, with a temperature control accuracy of ±0.5℃, a temperature display resolution of 0.1℃, a temperature equilibration time of less than 20 minutes, and an adjustable rotation speed of 0-30 RPM.
Send Inquiry
Description
Technical Parameters
Ningbo Scientz Biotechnology Co.,Ltd. is one of the leading hybridization oven suppliers in China. Welcome to buy our quality and cheap products for sale in bulk. We also welcome wholesale orders and customized orders. Now, please be free to check the price list with our factory.
Working Principle
The basic pincple of hyurdizalion ovenis he process of foming hetemgeneous doube-standed DNARNA tom tmo nudee acid singe-srandedDNNRNe ofhomobgous sequenes by denaturafon and ressuton accordng o hepimcpe of base compemertay paiing underspedife emperaureand rotation candifors using acambinationof a specis temperaue controlsystem of the irstrument and a vericalrotafon system.
The basic pincple of hyurdizalion ovenis he process of foming hetemgeneous doube-standed DNARNA tom tmo nudee acid singe-srandedDNNRNe ofhomobgous sequenes by denaturafon and ressuton accordng o hepimcpe of base compemertay paiing underspedife emperaureand rotation candifors using acambinationof a specis temperaue controlsystem of the irstrument and a vericalrotafon system.
| Technical Parameters | ||
Model |
LF-IA | LF-IIIA |
Thermostatic Range |
RT+8℃-100℃ | RT+8℃-100℃ |
| Temp.Control Accuracy ±0.5℃ | ±0.5℃ | |
| Temp.Display | 0.1℃ | 0.1℃ |
| Temp.Equilibrium Time<20min | <20min | |
| Rotation Speed | 0-30Rpm | 0-30Rpm |
| Vibration Intensity | / | 1-10speed |
| Working Hours Continuous Operation Function |
1-1440min(24 hour) YES |
1-1440min(24 hour) YES |
| Hybridization Tube Specifications |
standard:φ35×240mm(2pcs) optional:φ35×150mm,φ35×300mm |
|
| Shake Function | YES | YES |
| Stored Data | 50 groups | 50 groups |
| Display | 4.3inch color touch screen | |
| PID algorithm,automatic calculation,accurate temperature control | ||
| Supply Voltage | 220VAC,50HZ | 220VAC,50HZ |
| Power | <800W | <800W |
