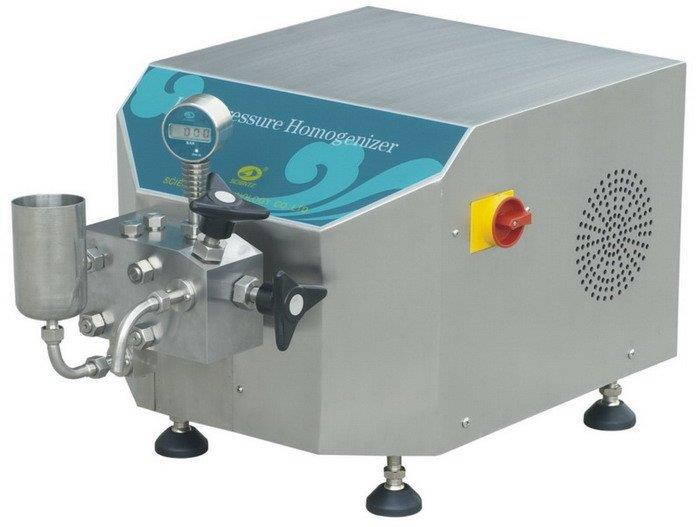

Stainless Steel High-Pressure Homogenizer (food)

High pressure homogenizer is a special equipment of the liquid material thinning and high pressure transportation.

This equipment is widely used in the production, scientific research and technical development of a lot of areas, such as: Food, dairy food, drink, pharmacy, chemical industry, biological technology and so on.

Usage
It can cause the material thinning and mixture under the three action of extruding, strong impacting and decompression inflating.
It can cause the fat globule thinning while homogenating under the high pressure to the milk, soy milk this kind of dairy food.
It can improve the fineness and the fraction void of the fluid material, as well as its intrinsic quality, while be used in the processing of ice cream this kind of production.
This equipment also can be used in the homogenating, high-pressure transportation and the high-pressure spray situation of other fluid materials.

Structure
It is composed of frame, wheel box, pump body, pressure meter, homogenizer and so on.

Biological application cases: enzyme engineering, human vaccine, veterinary vaccine, HPV vaccine, fusion protein, nucleic acid, insulin, reagents, antibodies, etc.

Expression vector:

Escherichia coli , yeast , animal cells , Mycobacterium tuberculosis , Bacillus , Thermophila , etc .

Application features:

The protein or nucleic acid is expressed by the transgenic method, and the product is obtained by crushing the cell wall and centrifugally purifying the product. The general process is:

DNA transfer→bacteria culture→obtained wet cells→resuspend suspension→broken cell wall→centrifugation→purification

Application advantages:

Temperature control: -10-30 °C cold medium quality + PhD temperature control homogenizing valve + aseptic heat exchanger

Temperature range: -5-70 ° C (usually controlled temperature within 4-10 ° C)

Material: SS316L sanitary grade stainless steel, sterile interface design, straight tube heat exchanger without dead angle

Breaking pressure: Scientz high pressure homogenizer for the crushing of all biological cells.

The experimental homogenizer, to the production equipment, can reach 2750bar under pressure, suitable for synchronous amplification of R&D→production.

Main Technical Parameters：

Maximum working pressure	1200bar/120M pa/17400psi
Maximum design pressure	1500bar/150Mpa/21750psi
Maximum capacity	12L/h、25L/h  two models machine
Minimum capacity	30ml
Cooling	Built-in cooler
Motor Power	1.5KW/380V/50HZ
Dimensions	L800*W460*H450mm
Weight	120Kg
