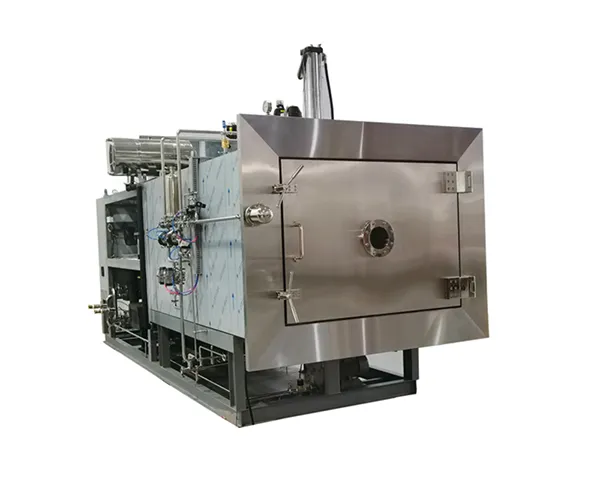

Chinese Herbal Medicine Vaccum Freeze Dryer

Name: Chinese Herbal Medicine Vaccum Freeze Dryer Factory and Suppliers China - Customized Products Wholesale - Scientz Biotechnology
Brand: Scientz
SKU: 189570516

Pilot freeze dryer The Pilot model freeze dryer with drying capacity up to 150L liters,Cover most demand for vial or other material commercial production,comliance with regulation. More optional systems available,Main feature are: Chinese herbal medicine vaccum freeze dryer ◆Automatic shelf stoppering under vacuum ◆Automatic control for freeze drying,SIP and CIP ◆Scada control system comliance with regulation and save up to thousand recipes ◆Shelf flatness less than1.0mm,temperature uniformity less than 1C.

Send Inquiry

Description

Technical Parameters

Chinese herbal medicine vaccum freeze dryer

Pilot freeze dryer

The Pilot model freeze dryer with drying capacity up to 150L liters,Cover most demand for vial or other material commercial production,comliance with regulation. More optional systems available,Main feature are:
◆Automatic shelf stoppering under vacuum
◆Automatic control for freeze drying,SIP and CIP

◆Scada control system comliance with regulation and save up to thousand recipes
◆Shelf flatness less than1.0mm,temperature uniformity less than 1C.

Freeze drying machine (silicone oil heating)

● Precool drying in position, reduce the drying process of complicated operation, realize the automation

● Shelf temperature differences± 1 ℃, dry effect uniform

● Intermediate medium circulation technique, partition can refrigeration, heating, temperature adjustable, controllable, and grope, test and production process;

● Due to drying chamber and cold trap for fission structure, special gas circuit design, capture water ability is strong, short drying time

● Embedded touch screen, PLC controller and PID control temperature control, display lyophilized curve and history curve;

● Control system can be stored 40 freeze-dry process program, each scheme can have 40 section temperature setting, and can choose the manual operation and automatic operation, the gland type is equipped with an automatic defrost function;

● Optional eutectic point test device;

● U disk archived data;

● Equipped with PC software, can print curve, browsing curve, modify data;

● Square tray is out of shape not easily, easy to operate, easy to clean;

● Can be configured charging valve, rechargeable dry inert gas.

● Drying chamber adopts high pervious to light colorless transparent organic glass door, in operation process can be observed clearly the change of material process;

Main Technical Parameters:

Freeze drying machine (silicone oil heating)

					SCIENTZ-200F-2㎡		SCIENTZ-3㎡	SCIENTZ-4㎡	SCIENTZ-5㎡	SCIENTZ-8㎡	SCIENTZ-10㎡	SCIENTZ-15㎡	SCIENTZ-20㎡	SCIENTZ-25㎡	SCIENTZ-30㎡	SCIENTZ-40㎡
				Unit	Ordinary	Top-Press
Area				㎡	2		3	4	5	8	10	15	20	25	30	40
Volume	Effective partition area			㎡	2.25	1.98	2.96	4.4	5.5	7.75	10.33	14.76	20.63	24.38	29.7	40.5
	Cold trap capture water,MAX			KG/batch	25		40	60	80	120	210	290	410	480	590	800
	Quantity of miniature		Ф22	PC	4100	3600	5300	8000	12700	17800	23700	33900	47400	56000	68300	93000
			Ф16	PC	7800	6800	10000	15000	24800	34800	46400	66400	92800	109700	133600	182200
			Ф12	PC	14400	12600	16000	28000	35000	49000	65300	95700	130400	154000	187700	256000
	Plate load liquid,MAX			L	25		40	60	80	120	210	300	450	500	600	850
Parameters	Partition size	Length		mm	900	610	610	915	915	915	1215	1215	1250	1250	1500	1500
	Partition size	Width		mm	500	810	810	1210	1210	1210	1215	1215	1500	1500	1800	1800
	Partition space			mm	100	100	100	100	100	100	100-120
	Partition number			PC	5+1	4+1	6+1	4+1	5+1	7+1	7+1	10+1	11+1	13+1	11+1	15+1
	Partitionhighest temperature			℃	+70℃
	Partition minimum temperature			℃	-50℃
	Partition temperature difference			℃	±1℃(balance)
	Cold trap minimum temperature			℃	-70(No-load)
	Vaccum			No-load	＜10Pa
Basic equipment	Cooling water, < 30 ℃, 0.15 0.2 Mpa (applicable to water chilling unit)			m³/h	4.2	4.2	4.5	6	11	16	20	27	30	33	36	42
	Cooling mode (applicable to air cooling unit))				Air cooling: well ventilated room temperature≤25℃		More than 2 ㎡ for water chilling unit
	Defrost water (soaked) 50 ℃, 0.1 0.2 Mpa			KG/batch	270		300	350	400	1200	1500	2000	3000	4000	5000	7000
	Power			KW	10		16	18	20	30	58	84	105	125	145	170
	Weight			KG	1500	2200	2800	3500	4200	6000	7000	9000	11000	12000	15000	2000
Demension	Length			mm	2100	2500	3000	3500	3800	5000	6400	6500	7400	8200	9200	9400
	Width			mm	1200	1210	1200	1300	1500	1500	2300	2300	2300	2300	2400	2400
	High			mm	1700	2700	2700	2800	2900	2800	3200	3400	3800	4000	4000	4500
