SCIENTZ-30F Vacuum Function Big LCD Display Heating Function Freeze Dryer
Description
Technical Parameters
Ningbo Scientz Biotechnology Co.,Ltd. is one of the leading scientz-30f vacuum function big lcd display heating function freeze dryer suppliers in China. Welcome to buy our quality and cheap products for sale in bulk. We also welcome wholesale orders and customized orders. Now, please be free to check the price list with our factory.
Scientz-30F Silicone Oil Heating Freeze-Drying Machine
●Pre-freeze drying process at in situ situation, reduce the complicate operation from drying process, become automatically;
● Shelf temperature differences ± 1 ℃, dry effect uniform;
● Intermediate medium circulation technique, shelf can refrigeration, heating, temperature adjustable, controllable, pilot scale test and production process;
● Due to drying chamber and cold trap for fission structure, special gas circuit designed, capture water ability is strong and drying time to be short;
● Embedded touch screen, PLC controlled and PID temperature controlled display lyophilized curve and history curve;
● Control system can be stored 40 freeze-dry process programs, each program can have 40 temperature settings, and can choose the manual operation and automatic operation, the Top-Press type is equipped with an automatic defrost function;
● Optional eutectic point test device;
● U disk data available;
● Equipped with PC software can print curve, browsing curve, modify data;
●Square tray is shape not easily to deformed, easy to operate and clean;
● Can be configured charging valve, rechargeable dry inert gas.
● Drying chamber adopts high light colorless transparent organic glass door, in operation process can be observed clearly the change of material process;
●Refrigeration system using overlap refrigeration technology, low refrigeration temperature, large refrigerating capacity, and adopt imported closed compressor, high efficient and reliable, low noise.
|
Drying chamber |
Scientz-30F |
Ordinary |
Top-Press |
|
Drying Area |
0.3 m2 |
0.3 m2 |
|
|
No.of Tray |
3+1 layer |
3+1 layer |
|
|
Temp. Range |
-70～70 ℃ |
-70～70 ℃ |
|
|
Shelf Gap |
50 mm |
70 mm |
|
|
Shelf Size |
400mm×270mm |
400mm×270mm |
|
|
Capture water trap |
φ22 Schering bottles |
540 |
540 |
|
φ16 Schering bottles |
1080 |
1080 |
|
|
φ12 Schering bottles |
1950 |
1950 |
|
|
Temperature |
-70℃(No-load) |
-70℃(No-load) |
|
|
Ability to Capture Water |
6Kg/24h |
6Kg/24h |
|
|
Parameters |
Power |
2.1 kw |
2.1kw |
|
Power Supply |
380V 50/60Hz |
380/60Hz |
|
|
Plate Load Capacity |
3 L |
3 L |
|
|
Electric Defrost |
√ |
||
|
Vacuum |
<10 Pa |
<10 Pa |
|
|
Dimension |
630×800×1400 mm |
1060×700×1500 mm |
|
|
Drying chamber shape |
square |
square |
|
|
N.W./ G.W |
300KG/ 340KG |
360KG/400KG |
|
Packaging & Shipping
Delivery detail:
UPS/DHL/FEDEX/TNT express are available for your choose which take 3~ 5 days to arrive,and we will offer the tracking number for you to check the status of your items online at any time.
By air cargo which takes about one week to arrive .
By sea which takes about 20-30days to arrive , depending on your actual requirements.
Our Services
1.Warranty:
12 months warranty for scientz freeze dryer.
If any technical problem during warranty time, replacement parts will be sent free of charge.
Technical support is also available in whole time.
2.Our Advantage
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. OEM is available if the quantity is large.
4. We offer very competitive for all our products.
3.After-sales
Our machines undergo an extensive and strict testing and quality control procedure, ensuring every item purchased meet global quality standards.It's safe and reliable quality for freeze dryer.
SCIENTZ FACTORY＞

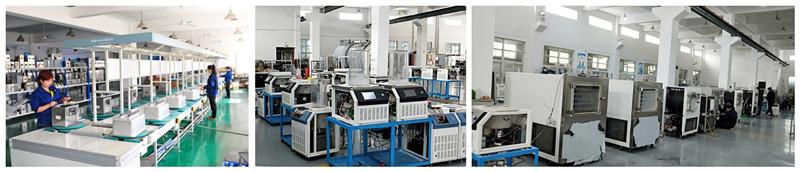

SCIENTZ WORKSHOP＞
