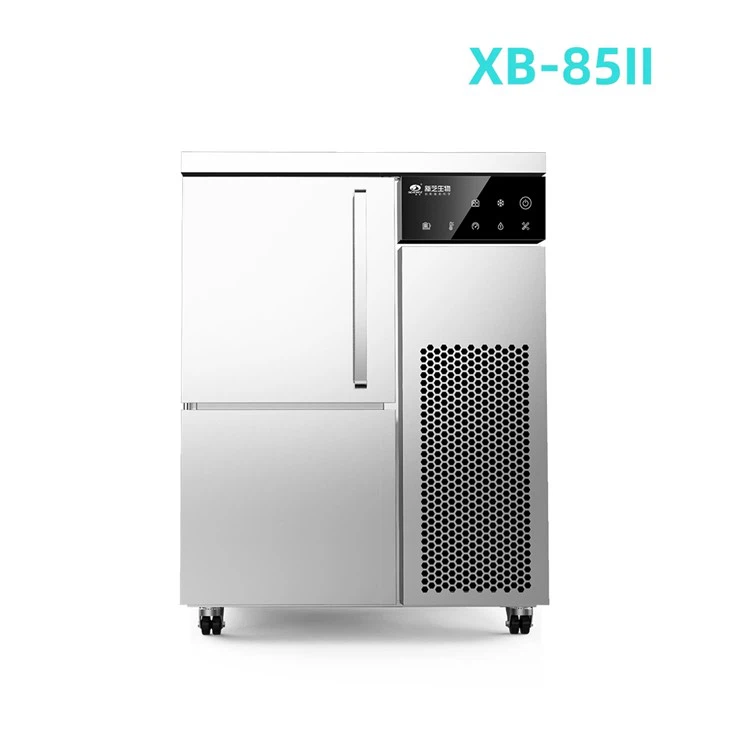

85KG Flake Ice Maker For Seafood and Fresh Produce Preservation
Description
Technical Parameters
Ningbo Scientz Biotechnology Co.,Ltd. is one of the leading 85kg flake ice maker for seafood and fresh produce preservation suppliers in China. Welcome to buy our quality and cheap products for sale in bulk. We also welcome wholesale orders and customized orders. Now, please be free to check the price list with our factory.
Products Description
XB-85II SERIES LABORATORY FLAKE ICE MAKE,Rrated power of 420W, ice production capacity of 85kg/24h, ice storage capacity of 25kg,Snowflake-shaped ice is widely used in hospitals, schools, laboratories, research institutes and other occasions as well as supermarkets,food preservation,fishing refrigeration, medical applications, chemical and food processing industries, and wide application.
Working Principle
The incoming water is filtered and then passes through the spiral evaporator, in which the water is evaporated and vaporized by heat absorption at a low temperature of -18°C, so that the water is rapidly condensed into ice, and then the ice cutter in the evaporator is driven to rotate by the gear reducer, and then the ice is transported to the ice outlet through the rotary squeezing action, and then it falls down freely under the effect of gravity to the ice storage tank.
Our Features
Choose the ice maker you best.

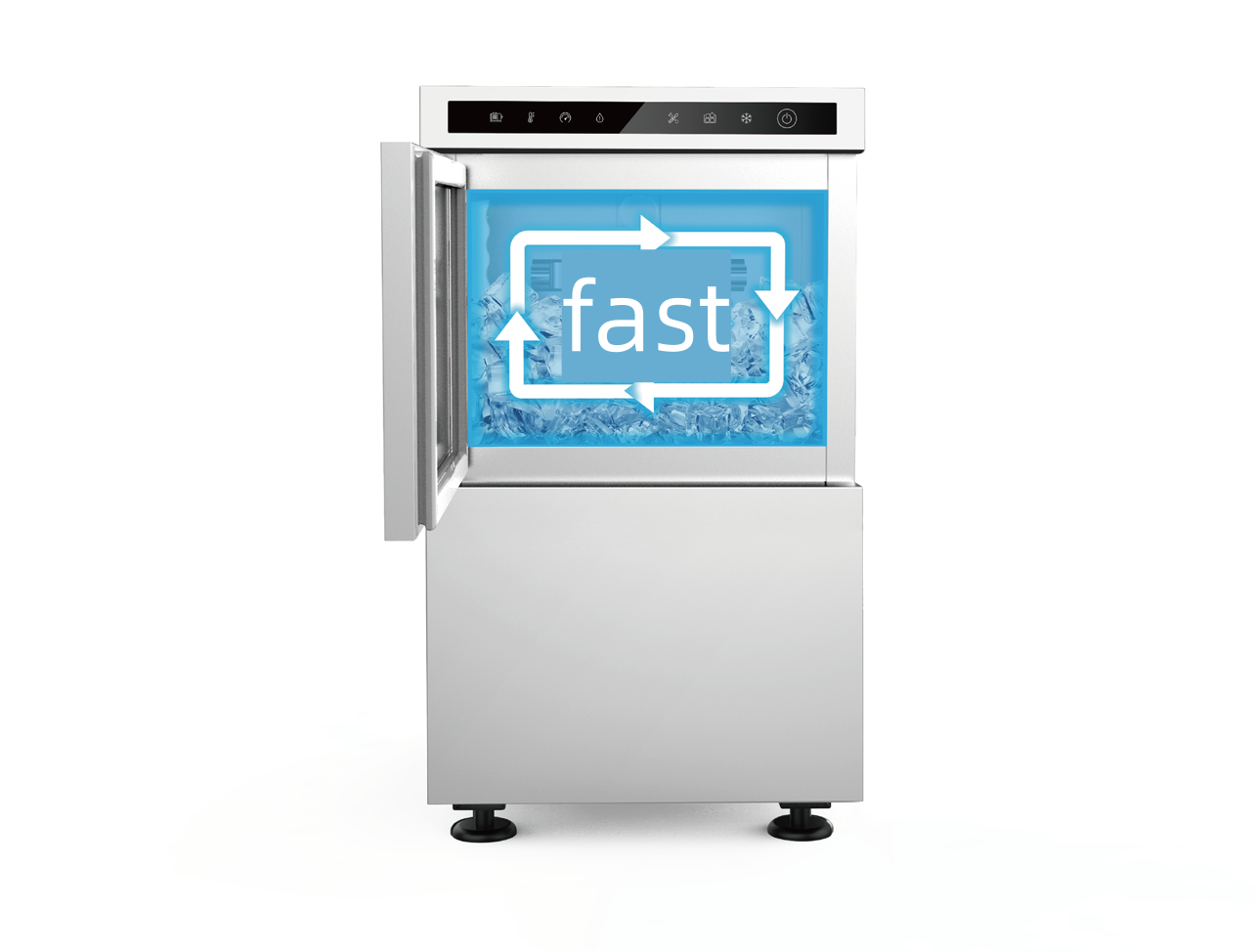

Fast ice production
5 minutes to produce ice quickly, with small crushed ice particles and low water content

environmental protection and energy conservation

Automatic drainage

Capacity upgrade

anti-corrosion and durable
Using high-quality stainless steel shell,

Humanized design
original water purifier, pure ice making and anti-dirt,one-button start, fault self-diagnosis
Be used in a wide range of industries.

Food and Beverage Service

Healthcare Facilities

Seafood and Fresh Produce Preservation

Banquets and Events

Cocktail Bars and Mixology

Convenience Stores and Supermarkets
XB-Series automatic snow ice machine - Features
1) Use high-quality stainless steel, corrosion and durable, stand-alone integrated structure, compact and simple to save space.
2) Box for the freon-free foam insulation, the insulation effect, Liner for fluorine inhibition and energy-saving environmental protection.

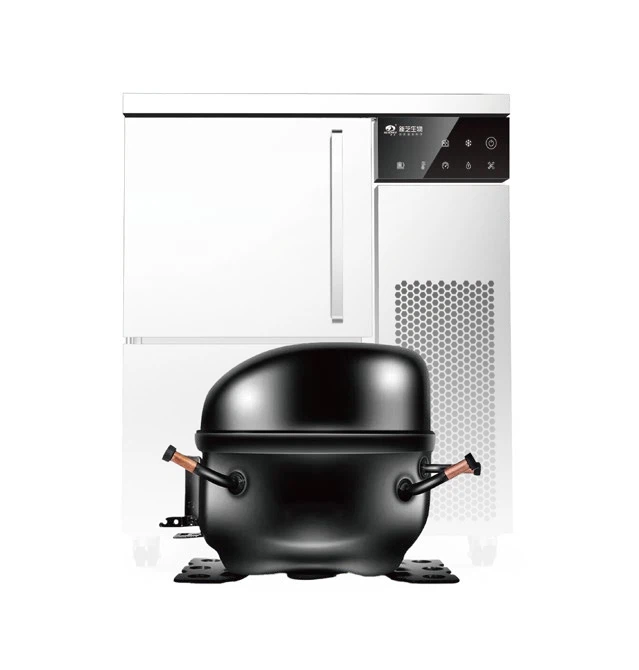

3) High quality and efficient use of CFC-free R134a &R404a compressors, components are test by SGS Company, in line with EU environmental directives RoHs requirements.
4) The components used in electrical appliances are "TUV", or "VDE" safety certification, certification components, safe and reliable.
5) The ice-making process with full computer control, imports of computer chips, control and reliable, smooth operation.
6) Using the Italian technology Haitec second gear, low noise, smooth and reliable. Top with ice machine and fan cooling holes to ensure the gear motor in the high temperature even under harsh conditions and reliable operation.
7)Use of patented technology line of chip ice compartment chamber evaporator, cooling, high efficiency, large capacity ice.
8) The ice screw type extrusion hob, compact structure, implementation of ice, water, automatic separation. Optimal design of skate blade, making the shape of the ice-making small and practical.
9) Unique water tank float system to ensure no residual water over water without de-icing process, water loss, no residual water, saving water and energy.
10) Shows full of ice, water displays, cold protection display, fault warning display shutdown protection function. When water ice is the ice machine will automatically stop when the call will automatically start runoff, with automatic memory recovery.
11) The small ice particles form the amorphous ice snow, ice forms small, can penetrate into narrow gaps fast cooling effect of ice bath, designed for laboratory design.
12) With the front power switch and indicator functions, detailed instructions and thoughtful, intuitive easy to use, the safety indicators are tested by the electrical properties, safe and secure.
13) Long ice factory performance testing and debugging to ensure the excellent performance of product excellence.
14) Snowflake-shaped ice is widely used in hospitals, schools, laboratories, research institutes and other occasions as well as supermarkets, food preservation, fishing refrigeration, medical applications, chemical and food processing industries, and wide application.
Hot Tags: 85KG Flake Ice Maker For Seafood and Fresh Produce Preservation, China, factory, suppliers, wholesale, customized, buy, cheap, bulk, price list, for sale
comparison of ice maker parameters
| Products model | XB-20II | XB-30II | XB-40II | XB-50II | XB-70II | XB-85II | XB-130II | XB-150II |
XB-200 {new} |
|
Ice volume (Kg/24h)
|
20 | 30 | 40 | 50 | 70 | 85 | 130 | 150 | 200 |
|
Storage capacity(Kg)
|
15 | 15 | 15 | 15 | 25 | 25 | 32 | 32 | 80 |
|
Material
|
304 Stainless steel | ||||||||
| Rated elevator speed |
Small particles of irregular snow ice
|
||||||||
|
Dimension (cm)
|
420×580×735
|
420×580×735
|
420×580×735
|
420×580×735
|
600×600×830
|
600×600×830
|
600×700×830
|
600×700×830
|
560×840×1600 |
|
Rated power(W)
|
240
|
240
|
240
|
240
|
420 | 420 | 600 | 600 | 950 |
|
Refrigerant
|
R134a/80g | R134a/80g | R134a/80g | R134a/80g |
R404a/120g
|
R404a/120g
|
R404a/160g
|
R404a/160g
|
R404a/210g
|
