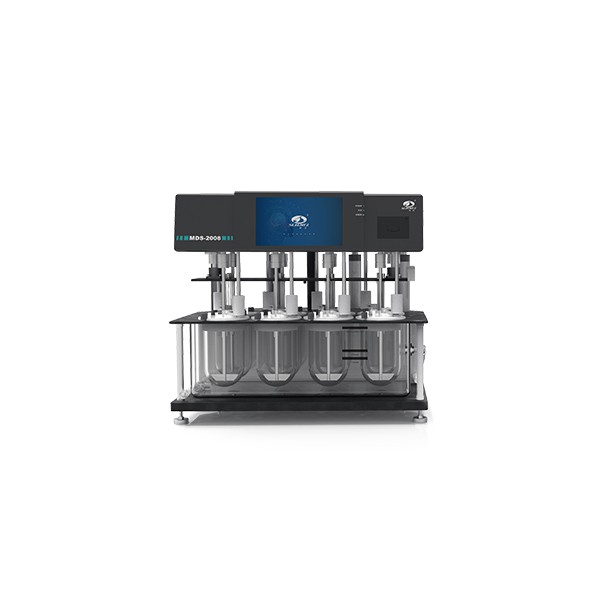

MDS-2014DS Dissolution Drug Tester

Model No:MDS-2014DS dissolution drug tester

1.Parameters

1. ※The dissolution vessel is designed with embedded fixing hoop to achieve better centering and verticality of the dissolution vessel. Indicator strips and diagonal fixtures are designed on the cup rim to achieve higher reproducibility. Available in 1000mL and 250mL specifications, and the dissolution vessel can be either transparent or low actinic red for photosensitive substances.

2. The V-cup cover is designed to fit well with the dissolution vessel, which can reduce solvent evaporation.

3. an automatic dosing module that avoids tablet sticking, enabling simultaneous and sequential dosing.

4. ※The one-piece injection-molded water bath box with quick adapter as standard, there is no bonding in the box, and there is no dead angle area such as right angle.

5. ★ It adopts segmented 316L stainless steel propeller shaft design. When replacing, only the lower propeller shaft is required to be replaced, and the whole root is not disassembled, which reduces the workload of re-setting the height after replacement.

6. ★ The machine head adopts multi-point stainless steel guide rod to ensure the stability of the machine head and effectively prolong the stable time of mechanical performance.

7. ※ A color touch screen of no less than 10 inches is used for human-computer interaction , which can realize the setting, storage and operation of no less than 100 methods. With screen lock security function, it also provides Chinese and English bilingual operation interface.

8. Provides three levels of administrative privileges compliant with audit trail requirements to control access and prevent unnecessary changes to instrument settings or methods.

9. The instrument is equipped with an independently controlled heating cycle system with an unattended reservation function.

10. The instrument has eight independent temperature probes, and the temperature of the eight cups of solvent is independently monitored and displayed in real time. The temperature control method should adopt PID+fuzzy control, the temperature control accuracy should not be lower than ±0.2℃, and the temperature resolution should reach 0.1℃.

11. The instrument should have a built-in printer, which can print and save experimental data in real time.

12. The instrument has built-in photosensitive lighting, and with the brown dissolution vessel, light-proof experiments can be realized.

13. ※The instrument can store 100 experimental methods, and the instrument methods can be imported and exported through one-key USB operation, avoiding the tedious steps of method transfer between different instruments.

14. Manufacturers provide standard-compliant AIQ certification services, mechanical verification services, and technical and application-related support services such as instrument training and installation on-site training.

15. ※The sampler is equipped with an automatic door opening device, which can realize one-key entry and exit of the warehouse.

16. It can automatically calculate the sampling height, and at the sampling time, it can accurately sample the position in line with the Pharmacopoeia according to the volume of the solvent;

17. There should be a secondary filter interface to make the impurities filter more fully.

18. ★ The instrument adopts imported syringes, which can realize the steps of automatic rinsing, filling, waste drop disposal, sampling, replenishment, and emptying, etc., to ensure the sampling accuracy, and to ensure that the pipeline residue is as little as possible.

19. The instrument adopts imported PTFE micro-transparent pipeline, which has anti-corrosion and anti-adsorption properties.

20. ★ Continuous sampling, dual sample sampling, automatic sample dilution and other functions, the shortest sampling interval is 2 minutes

21. The pipeline and sampling pump are automatically rinsed before sampling to ensure the accuracy of sampling samples.

22. After the experiment is completed, one-click automatic cleaning of the liquid tank and pipeline ensures no cross-contamination.

23. ★ The product can provide professional third-party testing report on product performance.
