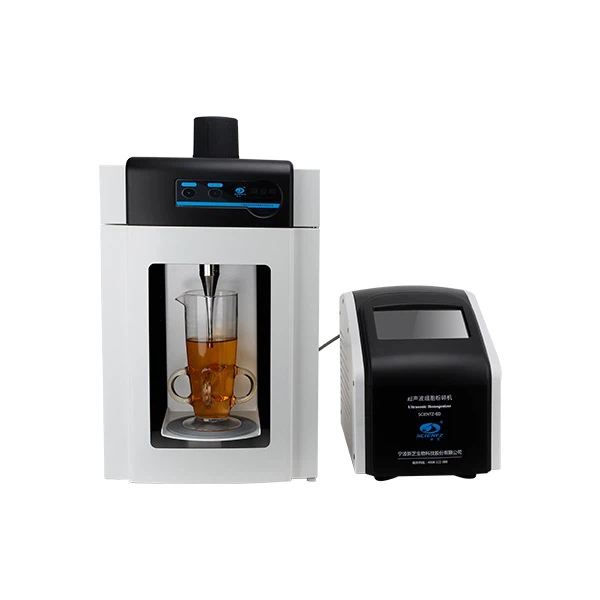

Scientz-IID New Type Of Ultrasonic Homogenizer With 7 TFT Touch Display

Scientz-IID New Type Of Ultrasonic Homogenizer With 7 TFT Touch Display

Scientz-IID Ultrasonic Homogenizer CE Patent number : ZL200920122245.6 ULTRASONIC HOMOGENIZER Features: 1. It adopts PWM control switch power supply, and the power is continuously adjustable 2. It adopts 7 inch TFT touch screen display, high resolution 3. Central microcomputer centralized...

 CE   Patent number:ZL200920122245.6

    Ultrasonic Processor uses the dispersion effect of ultrasonic waves in the liquid to cause cavitation of the liquid, thereby breaking the solid particles or cell tissue in the liquid.

  Features:



1.   It adopts PWM control switch power supply, and the power is continuously adjustable

2.   It adopts 7 inch TFT touch screen display, high resolution

3.   Central microcomputer centralized control

4.   Ultrasonic time, power arbitrary setting

5.   Sample temperature detection display, power display,microcomputer tracking,automatic fault alarm

6.   Sound Abating trap adopts sheet metal,spray plastic,ABS material,die design,with lock function.

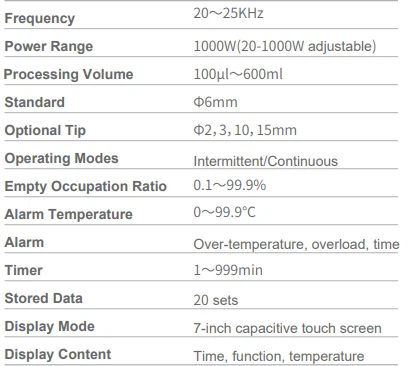

 Main Technical Parameters


Frequency

20-25KHZ automatic tracking

Power

950W (1%-99%)

Display

7 inch TFT touch screen

Display content

TimePowerTemperature

Processing volume

0.5-600ml

Duty Ratio

0.1-99.9%

Accompany

Φ6mm

 Optional Tip

Φ231015mm

Storage data

50 groups

Temperature alarm

0-99

Alarm

Over-temperatureOverload,   and overtime

Timing

0-999min

Working mode

Gap/Continuity

Standard configuration

Generator host 1pcSealed   transducer 1pcΦ6mm Tip 1pcSound   Abating trap 1pc

Precautions

1.  Remember to empty. This is very important. There is a case where the ultrasonic pulsator is not inserted into the sample and the air is turned on. After a few seconds, the ultrasonic breaker will become louder in the future.

     Remember that the ultrasonic supersonic instrument is super-empty, and the longer the air is over, the greater the damage to the instrument.


2.   The horn of the ultrasonic breaker (ultrasonic probe) has a water depth of about 1.5Cm, and the liquid level is preferably 30mm or more. The probe should be centered and not attached. Ultrasonic waves are vertical longitudinal waves. If they are inserted too deeply, it is not easy to form convection and affect the efficiency of crushing.


3.   Ultrasonic crushing parameter equipment: Please refer to the instruction manual for this point. Set the key to the working parameters of the instrument, mainly the parameters of the time, the parameters of the ultrasonic power, and the choice of the container.


     Time requirement: Ultrasonic time should not be too long each time, preferably not more than 5 seconds, the gap time should be greater than or equal to the ultrasonic time, which is good for heat dissipation.


    Power requirements: not too large, too large will cause the sample to splash or foam.


    Container selection: How many samples are the first beakers, which is also advantageous for convection in the ultrasound to improve the efficiency of the crushing.


4.  In routine maintenance, scrub the probe with alcohol or use ultrasonic water after use.
