SCIENTZ-950E Ultrasonic Generator Probe Sonicator For Cell Lysis, Tissue Disruption And Homogenization

Ningbo Scientz Biotechnology Co.,Ltd (Stock code:430685) established in 2001,it’a National Hi-Tech Enterprise that specialized in producing ultrasonic apparatuses and instruments that serve the needs of Scientific research ,Education,Hospital ,Pharmaceutical Industry, Environment protection ,...

Ningbo Scientz Biotechnology Co.,Ltd (Stock code:430685) established in 2001,it’a National Hi-Tech Enterprise

Scientz has been chosen many time of the Top ten Well-Known Brands of life Science ,Had undertaken Important National Science&Technology Specific project of MOHC and The National Development and Reform commission ,approved by ISO9001:2008 international quality management system furthermore obtained CE ,

        Scientz is the largest manufacturer of ultrasonic homogenizer in China ,As a leader worldwide

    Scientz had set up offices and service centers in many cities of China ,received all the good reputation from the user

Fundamental


    Ultrasonic cell pulverizer uses the dispersion effect of ultrasonic waves in the liquid to cause cavitation of the liquid, thereby breaking the solid particles or cell tissue in the liquid. The ultrasonic cell pulverizer consists of two parts: an ultrasonic generator and a transducer.


    The ultrasonic generator converts the utility power into a 20-25 KHz alternating power supply transducer. The zirconium titanate piezoelectric vibrator is the heart of the transducer. It is elastically deformed with the alternating voltage at a frequency of 20-25 KHz, and the transducer is subjected to longitudinal mechanical vibration.


    The vibration wave generates a cavitation effect by the titanium alloy horn immersed in the biological solution, and the biological particles in the excitation medium vibrate violently.


Features:



◆ Combined with microcomputer control, using DSP plus ARM technology, the performance is more stable and the data is more precise.

◆ It has the functions of options, temperature measurement, automatic frequency tracking, impedance adaptation, protection, and so on.

◆ With wireless or RJ-45 interface, it can communicate with host computer. It can control network and print remotely.

◆ Gap / continuous working mode, pulse 0.1-99.9S tunable

◆ Data storage 20 groups, user password landing protection

◆ 7 inch TFT large screen display temperature, power, amplitude and pulse mode and work / gap time, touch control

◆ It has self diagnostic function, automatic program error correction, overload protection and over temperature protection display.

◆ The loudspeaker box has increased the functions of illumination, sterilization, automatic lifting, door locking and so on. The sound proof box can be put on the main engine and save time.

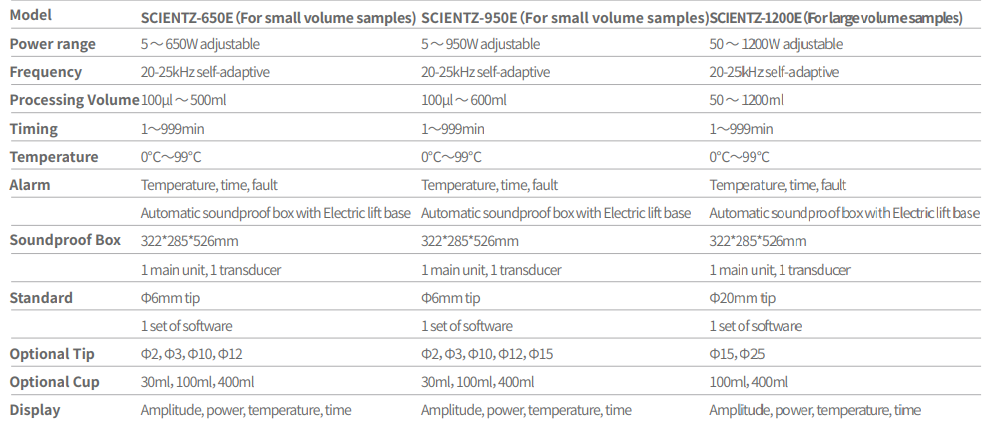

Main Technical Parameters:



Model

Scientz-650E

Scientz-950E

Scientz-1200E

Power

5-650W(Adjustable)

5-950W(Adjustable)

5-1200W(Adjustable)

Frequency

20-25KHz

20-25KHz

20-25KHz

Processing Volume

0.2-500ml

0.2-600ml

50-1200ml

Time

0-999min

0-999min

0-999min

Temperature Control

0°C -100°C

0°C -100°C

0°C -100°C

Alert

Temperature, Time, Failure

Temperature, Time, Failure

Temperature, Time, Failure

Septum Box

(Internal Electric Lifting Device)

350*345*545mm

350*345*545mm

350*345*545mm

Standard Configuration

Host one/Transducer one/Φ6mmHorn   one/ Software   one

Host one/Transducer one/Φ6mmHorn   one/ Software   one

Host one/Transducer one/Φ20mmHorn   one/ Software   one

Optional Matching Horn

Φ2mm、Φ3mm、Φ10mm、Φ12mm

Φ2mm、Φ3mm、Φ10mm、Φ12mm、Φ15mm

Φ15mm、Φ25mm

Optional Cooling Cup

30ml,100ml,400ml

30ml,100ml,400ml

100ml,400ml





If Ф2, Ф3 or Ф6 horn is used, the power should be turned smaller to avoid overloading and rupture of the horn.

Ranger power range horn specifications power range

Φ2 2~20%

Φ3 3~30%

Φ6 10~50%

Φ10 >18%

Φ15 >22%

Φ20 >30%


Packaging & Shipping

Delivery detail:


UPS/DHL/FEDEX/TNT express are available for your choose which take 3~ 5 days to arrive,and  we will offer the tracking number for you to check the status of your items online at any time.

 By air cargo which takes about one week to arrive .

 By sea which takes about 20-30days to arrive , depending on your actual requirements.






Our Services



1.Warranty:

12 months warranty for scientz ultrasonic homogenizer.

If any technical problem during warranty time, replacement parts will be sent free of charge.

Technical support is also available in whole time.

2.Our Advantage

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. OEM is available if the quantity is large.

4. We offer very competitive for all our products.

3.After-sales

Our machines undergo an extensive and strict testing and quality control procedure, ensuring every item purchased meet global quality standards.It's safe and reliable quality for ultrasonic homogenizer.
