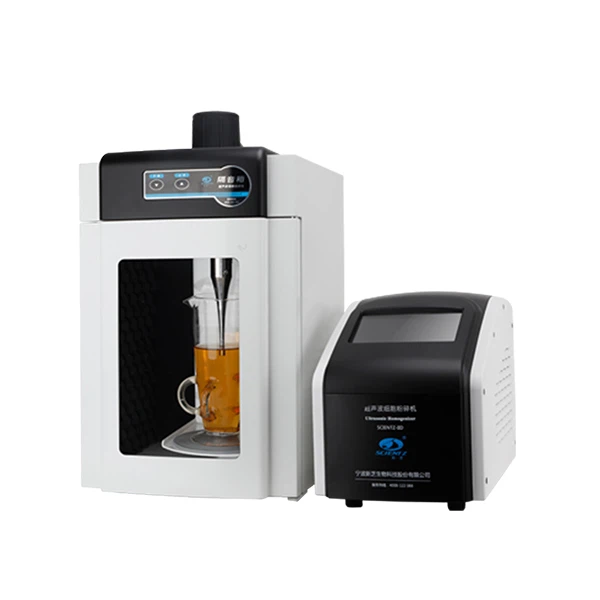

JY99-IIDN Ultrasonic Cell Disruptor

Scientz is the largest manufacturer of ultrasonic homogenizer in China ,As a leader worldwide Scientz holds multiple patents for the high-pressure gene gun ,that ranks first in Asia in quality and feature Scientz series ultrasonic cleaner ,tissue grinder ,paddle blender, freeze dryer,water bath...

Main features:


●The ultrasonic probe is made of imported titanium alloy and is durable.

Ultrasonic cell pulverizer energy-efficient transducer ensures strong efficacy

●Amplitude is automatically adjusted to maintain the same amplitude under different load conditions

●Working time, ultrasonic intermittent can be set

● LCD display, microcomputer control and temperature control function, continuous adjustment of ultrasonic power

● Integrated temperature control prevents sample overheating

●The soundproof box of the ultrasonic cell pulverizer uses special soundproof materials for good sound insulation.

●Optional light, sterilization or automatic lifting soundproof box


Use of ultrasonic cell pulverizer


1. Select the appropriate container (test tube or various beakers) according to the amount of sample, fix or install the strip vibration system position, insert the end of the horn into the sample liquid level 10-15mm and make it in the center of the container. Do not touch the container wall.


2. If the protection indicator is on during operation, the power of the instrument is too large, and enter the protection state. Use the knob 1 to reduce the power. Press the protection reset button and the work reset button once to start working.





Main Technical Parameters:

Model

JY98-IIIN

JY98-IIIDN

JY99-IIDN

Frequency

19.5-20.5 KHz

19.5-20.5 KHz

19.5-20.5KHz

Display

7 inch TFT touch screen

7inch TFT touch screen

7 inch TFT touch screen

Adjustable   Power range

1200 W(20%-99%)

1200 W(20%-99%)

1800 W(20%-99%)

Accompany   Tip

20mm

20mm

25mm

Optional   Tip

15、25 mm

15、25 mm

20、28 mm

Processing   volume

50-1000 ml

50-1000 ml

50-1200 ml

Duty   Ratio

1-99%

0.1-99.9%

0.1-99.9%

Temperature   alarm

No

Yes(Prevent sample overheating)

Yes(Prevent sample overheating)

Alarm

Over-temperature、overtime、overload

Over   temperature、overtime、overload

Over temperature、overtime、overload

The   size of Power Supply Chassis

430*255*300mm

430*255*300mm

430*255*300mm

New   Weight

12.1 Kg

12.1 Kg

13Kg

The   weight(the host and transducer)

14.5 Kg

14.5 Kg

15 Kg

The   size of Sound Abating trap

345*340*570mm

345*340*570mm

345*340*570mm



SCIENTZ FACTORY
