Homogenized

Features : 1.With new software,central microcomputer centralized control 1. It adopts 7 inch TFT touch screen display 2. Ultrasonic power step with 1% continuous adjustable. 3. With pulse and continuous operation, and with test function 4 . Ultrasonic time, gap time, and total time can be...

Hint

   Multiple times of short work, working time 1-2 seconds, gap time 1-2 seconds, better than continuous long-term work. To prevent liquid heat, set a longer gap time.


   In addition, uninterrupted long-term work is easy to form no-load, shortening the service life of the instrument.


Features

1.With new software,central microcomputer centralized control

2.  It adopts 7 inch TFT touch screen display

3.  Ultrasonic power step with 1% continuous adjustable.

4.  With pulse and continuous operation, and with test function

5.      Ultrasonic time, gap time, and total time can be accurate to 0.1 seconds.

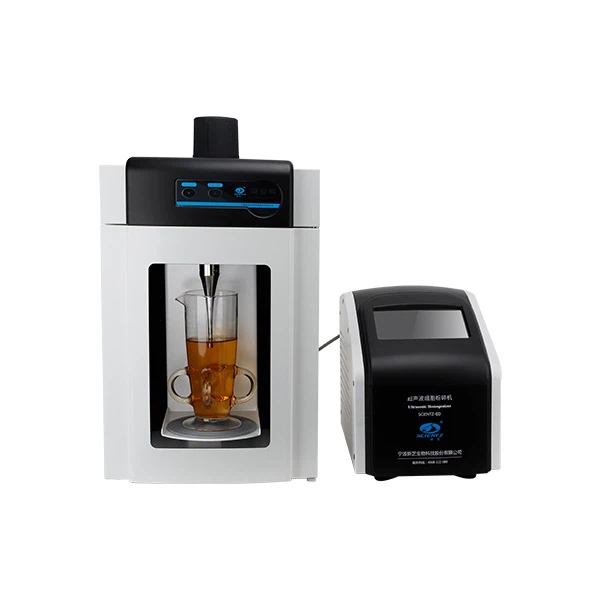

JY96-IINJY88-IINJY92-IINJY92-IIDN Ultrasonic Homogenizer

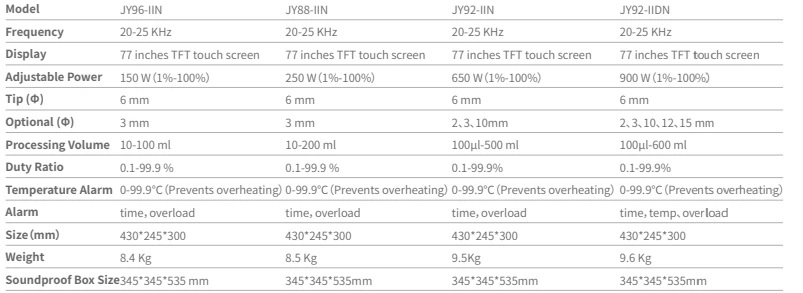

Main Technical Parameters

Model

JY96-IIN

JY88-IIN

JY92-IIN

JY92-IIDN

Frequency

20-25 KHz

20-25 KHz

20-25 KHz

20-25 KHz

Display

        LCD

LCD

LCD

LCD

Adjustable   Power range

150 W(5%-99%)

650 W(5%-99%)

900 W(1%-99%)

900 W(1%-99%)

Accompany   Tip (Φ)

6 mm

6 mm

6 mm

6 mm

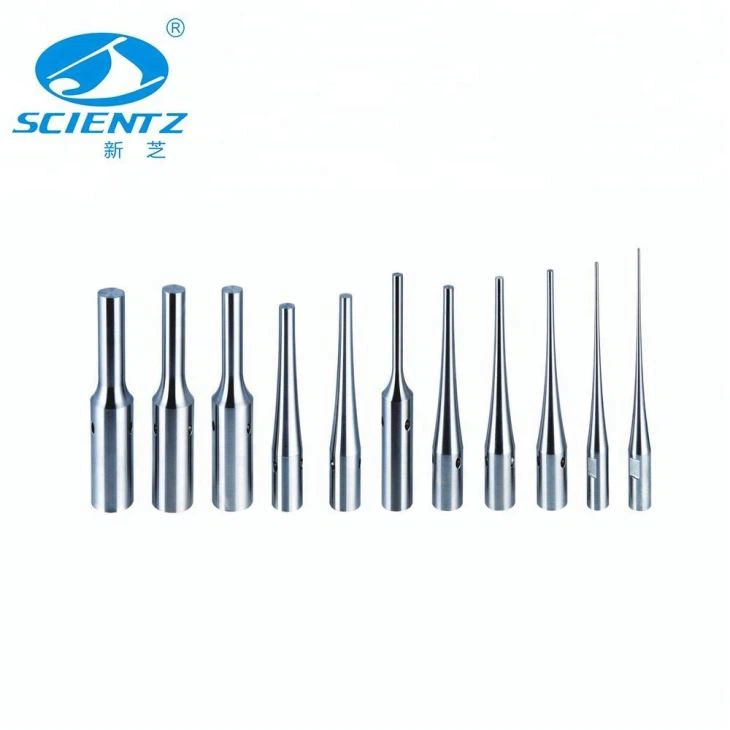

Optional   Tip (Φ)

3 mm

3 mm

2、3、10、12、15 mm

2、3、10、12、15 mm

Processing   Volume

10-100 ml

10-200 ml

0.5-500 ml

0.5-600 ml

Duty   Ratio

1-99 %

1-99 %

1-99%

0.1-99.9%

Temperature   Alarm

        No

No

No

0.1-99℃(Prevent sample   overheating)

Alarm

time,overload

time,overload

time,overload

time,temperature、overload

Power   Supply

220/110V  50Hz/60Hz

220/110V  50Hz/60Hz

220/110V 50Hz/60Hz

220/110V 50Hz/60Hz

The   size of Power Supply Chassis

430*255*300(mm)

430*255*300(mm)

430*255*300(mm)

430*255*300(mm)

The   weight(The host and transducer)

9.3 Kg

9.8 Kg

14 Kg

14.2 Kg

The size of Sound Abating trap

345*340*570mm

345*340*570mm

345*340*570mm

345*340*570mm


Application


Ultrasonic dispersion of cosmetics


   In order to further extract the essence of the drug and the micronization of the particles, and to save production costs, to achieve the dispersion and emulsification effect, the cosmetics penetrate deep into the inner layer of the skin, let the skin absorb well, exert the efficacy and effect of the drug, and adopt ultrasonic emulsification. Achieve very good results.


   By ultrasonic dispersion, fine particles of oil such as wax and paraffin emulsified or lotion can be dispersed without using an emulsifier. Paraffin particles dispersed in water can be up to 1um in diameter.
