2017 New Type General Purpose Touch Display Universal Ultrasonic Generator Homogenizer

2017 New Type General Purpose Touch Display Universal Ultrasonic Generator Homogenizer

2017 new type touch display ultrasonic homogenizer 1)As a new type of ultrasonic homogenizer,it enjoys complete functions, novel appearance and reliable performance. 2)It has a large-screen display and concentrated control by a central computer. 3)The ultrasonic time and power can be set...

2017 new type touch display ultrasonic homogenizer

1)As a new type of ultrasonic homogenizer,it enjoys complete functions, novel appearance and reliable performance.



2)It has a large-screen display and concentrated control by a central computer.



3)The ultrasonic time and power can be set accordingly. Besides, such functions as sample temperature display, actual

 frequency display, computerized tracking and automatic trouble warning can all be displayed in the large LCD screen.



Main Technical Parameters:

MODEL

Scientz-IID

Frequency

20-25KHz

Power

950W

Sccessories (Ø)

Ø6

Optional Tip (Ø)

Ø2,3,10,15

Crushing Capacity

0.5-600ml

Duty Ratio (%)

0.1-99.9%

Supply

220/110V    50Hz/60Hz

Features

Using PWM control switching power supply. Power continuously   adjustable. Stability. Can store 50 set experimental parameters.

Power supply chassis Size and Weight

400*280*220mm;12.2   Kg

Mainframe Weight

14.3kg

Speaker compartment  Size & weight

275*250*480mm),8.04   Kg

Packing Size

               534*295*435mm

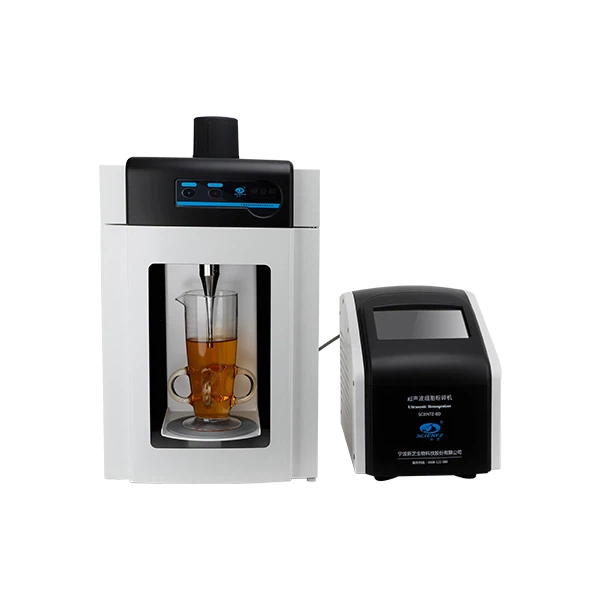

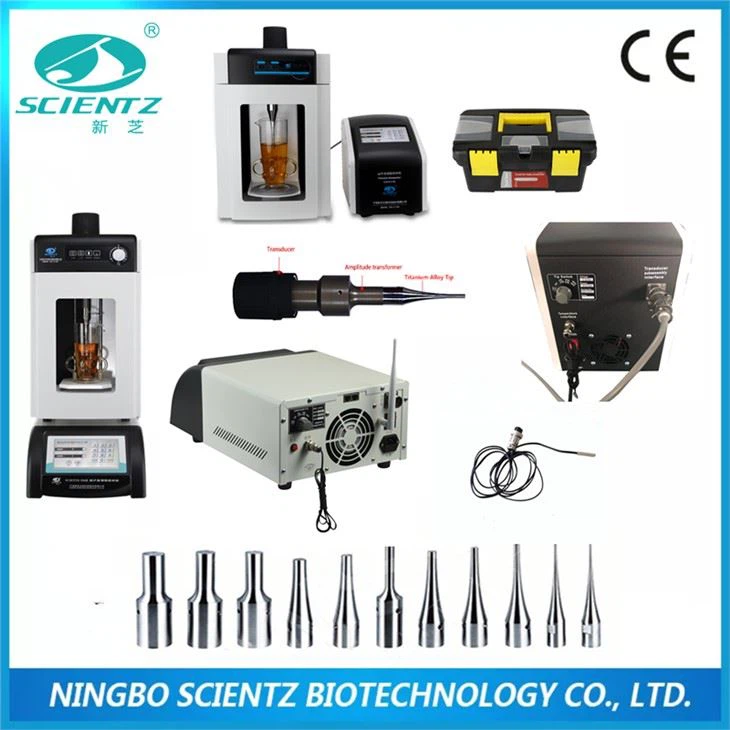

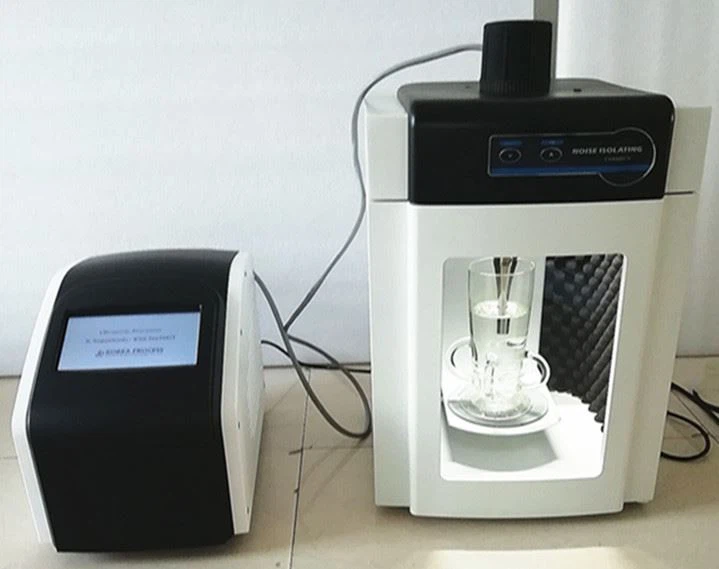

Product Photo:


Titanium Alloy Tips/Probe/Horn size reference value:

Tip Model

Frequency(KHZ)

Power Range

Crushing     Capacity

Φ2

1/12"

20-25KHz

20-250W

0.5-5ml

Φ3

1/8"

20-25KHz

30-400W

3-10ml

Φ6

1/4"

20-25KHz

60-650W

10-100ml

Φ10

5/12"

20-25KHz/19.5-20.5KHz

100-950W

100-200ml

Φ12

1/2"

20-25KHz

100-950W

100-200ml

Φ15

5/8"

20-25KHz/19.5-20.5KHz

200-950W

200-500ml

Φ18

3/4"

20-25KHz

200-950W

200-500ml

Φ20

3/4"

19.5-20.5KHz

400-1200W

500-1000ml

Φ25

1"

19.5-20.5KHz

800-1800W

500-1200ml

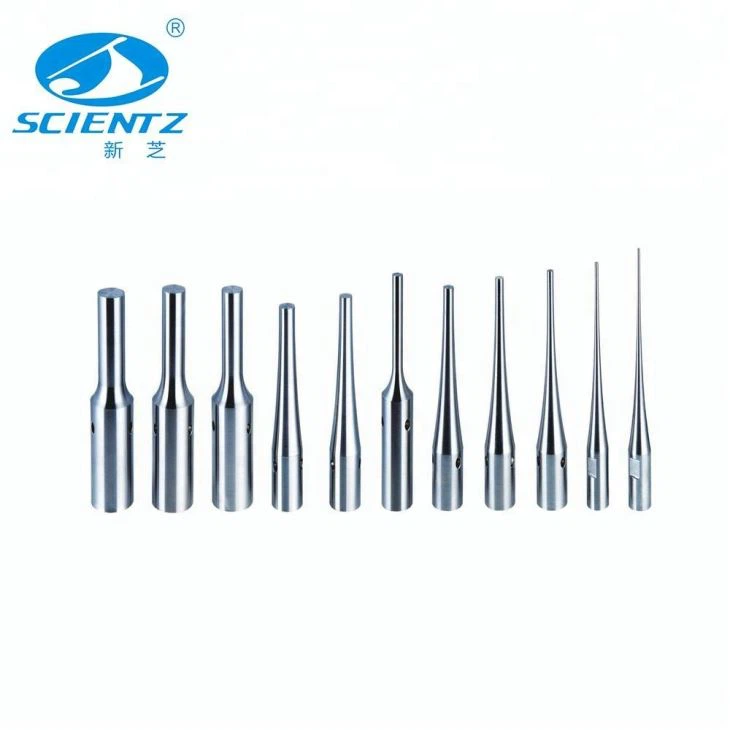

Titanium Alloy Tips/Probe/Horn Photo:



Specialised Broken Bottle is optional to buy:




Welcome to buy our quality and cheap 2017 new type general purpose touch display universal ultrasonic generator homogenizer for sale in bulk. As one of the leading Ultrasonic Homogenizer suppliers in China, we also welcome wholesale orders and customized orders. Now, please be free to check the price list with our factory.
