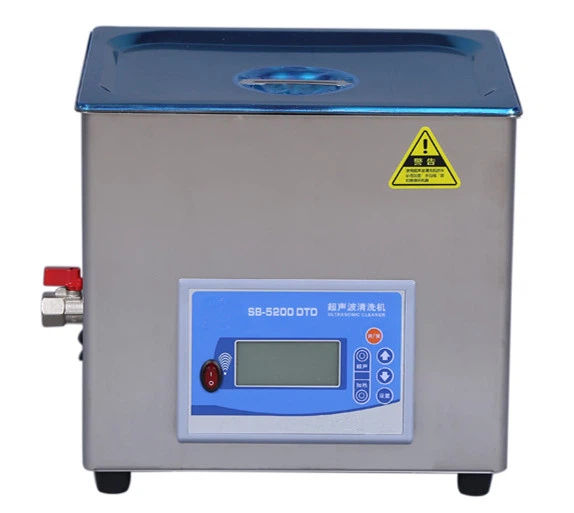

SB-5200DTD 10LUltrasonic Cleaner For Sale

SB-5200DTD 10LUltrasonic Cleaner For Sale

Ultrasonic Cleaner is designed to apply a cavitation effect produced in the cleaning liquid by means of ultrasonic waves.It can accelerate dissolution and decomposition of dirty and grease from parts being cleaned and has a perfect cleaning effect on blind hole and interior holes of the...

Ultrasonic Cleaner is designed to apply a cavitation effect produced in the cleaning liquid by means of ultrasonic waves.It can accelerate dissolution and decomposition of dirty and grease from parts being cleaned and has a perfect cleaning effect on blind hole and interior holes of the container. Being fast in cleaning, efficiency, undamageable on the surface and reducible in labour intensity, it has wide applications in cleaning precision machinery parts, hydraulic parts, pneumatic parts, valve, brake, bearings, bearing scrapers, oil nozzle, oil pump, carburetor , fuel injectors and other electronic components, circuit boards, semiconductor silica wafers, plating, optical lenses, audio heads, polyester filter, chemical fiber spinning nozzle, spinning plates, etc., including laboratories, and other various industries cleaning. There are machines with different functions such as temperature-increasing, power-adjustment, dual-frequency, high-frequency (59K, low noise and suitable for precision cleaning), swept-frequency for users to choose from.


On the basis of the international standards IEC60886.61102.61161, the company manufactures series of intelligently automatic ultrasonic cleaning machines and airing cleaning machines, including the following types (desktop type, input type, split, single-slot, dual-slot, multi-slot) All major and key  parts are imported, thus making the circuit more excellent, work more reliable, efficiency greater, noise much lower and cleaning more effective.


DTD  Series ultrasonic cleaning machine

●  Large-screen LCD display

●  Display the parameters setting menu

●  Adjustable power :40%--100%

●  1-999 min total working time setting

●  Digital setting ultrasonic cleaning time

●  Working time countdown display

●  Display actual temperature of the cleaning tank

●  Temperature setting Range: room temperature--80

●  Timing Range: 1-600 minutes adjustable

●  Equipped with a special stainless steel basket, reduce sound cover

●  The shell and cover are made by stainless steel

●  The equipment controlled by Single-chip controller

●  The lastest working parameters can be stored in memory after power-off



Main Technical Parameters:



Model



Inner tank



volume



Frequency



power



Heating power



Drainge

                (    mm)L/W/H

L

KHz

W

W


SB-3200DTD

300*155*150

6

40

180

400

/

SB-5200DTD

300*240*150

10

40

200

800

SB-5200DTD

300*240*150

10

40

250

800

SB-5200DTD

300*240*150

10

40

300

800

SB-4200DTD

300*240*200

14.4

40

400

800

SB25-12DTD

500*300*150

22.5

40

500

1000

SB25-12DTD

500*300*150

22.5

40

600

1000

SB-800DTD

500*300*200

30

40

800

1000

Notice :With the heating function of the ultrasonic cleaner, after heating the temperature than the actual display temperature 2-8 OC for thermostatic ultrasonic , optional ultrasonic thermostatic ultrasonic cleaner .


Ultrasonic cleaning machine common problems and solutions


Without ultrasound, the power switch indicator lights up and the fan is running normally.


1 Remove the output cable, turn on the power, adjust the power to the maximum, use the multimeter to exchange 1000v gear, measure the voltage of the output terminal, generally about 1000v, if there is voltage, the generator has no problem, plug in the output cable, check the first 5 steps, if there is no voltage, check the next step.


2 Use the multimeter DC 1000V gear to measure the positive and negative ends of the main capacitor or rectifier bridge output. Is there 300v or so? If there is no voltage, check the 4th step. Check the voltage for the next step.


 3 use the multimeter AC 20v gear measurement d1 frequency measurement diode should have about 10v, if there is no voltage, replace the IC1 module.


 4 Check the power control section to measure whether the power adjustment potentiometer is short-circuited, and replace it. Otherwise check the power, control output resistor r3 should be 240 ohms, 5w resistor is damaged, then replace the resistor.


 5 Check whether the ultrasonic vibrator is normal. Use the megohmmeter to measure the insulation resistance at both ends of the vibrator. Generally, it is more than 500k or use the x10k block of the multimeter to measure the resistance at both ends of the vibrator. Generally, the needle will swing slightly and return to the original position. Changing the test leads will have the same effect. If the resistance is too small, it may be a problem with a vibrator, short circuit after damp.

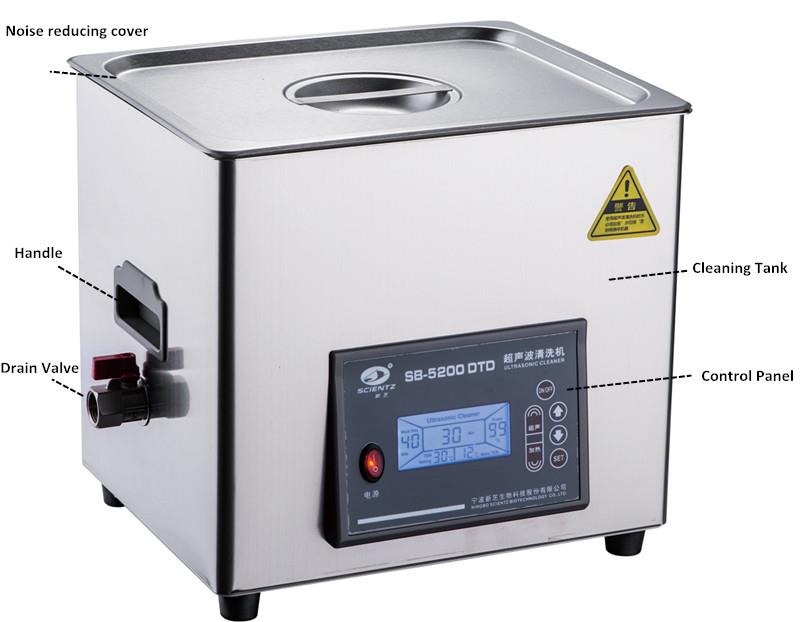

SB-5200DTD



SCIENTZ FACTORY
