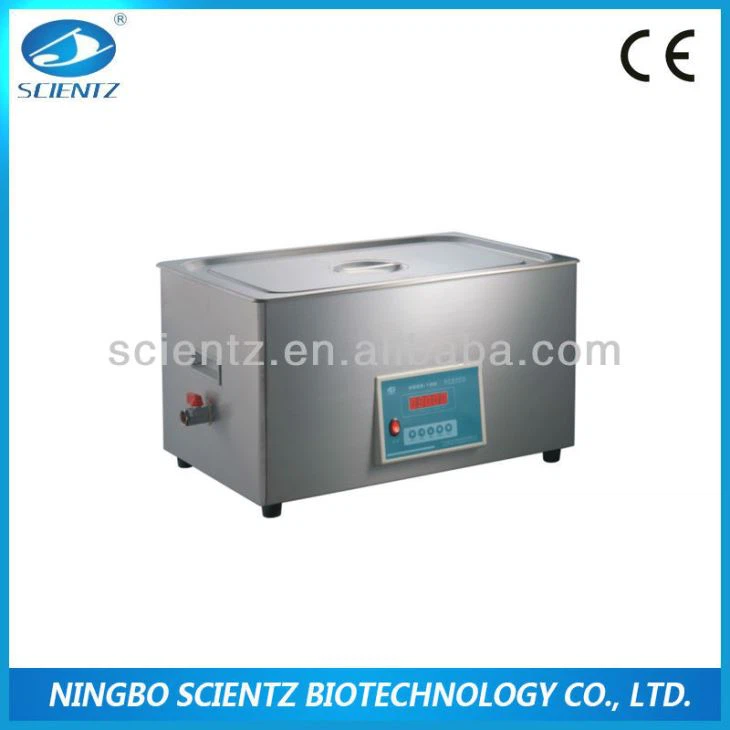

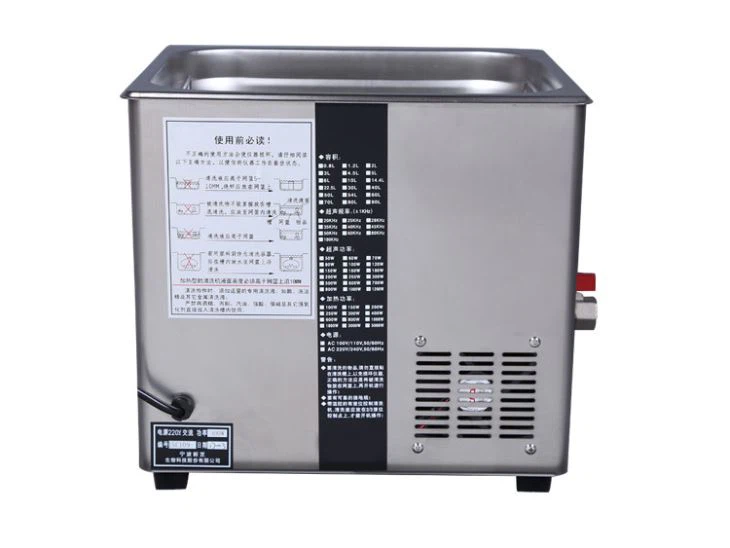

Multiple Frequencies Ultrasonic Cleaner

Ultrasonic Cleaner is designed to apply a cavitation effect produced in the cleaning liquid by means of ultrasonic waves.It can accelerate dissolution and decomposition of dirty and grease from parts being cleaned and has a perfect cleaning effect on blind hole and interior holes of the...

Ultrasonic Cleaner is designed to apply a cavitation effect produced in the cleaning liquid by means of ultrasonic waves.It can accelerate dissolution and decomposition of dirty and grease from parts being cleaned and has a perfect cleaning effect on blind hole and interior holes of the container. Being fast in cleaning, efficiency, undamageable on the surface and reducible in labour intensity, it has wide applications in cleaning precision machinery parts, hydraulic parts, pneumatic parts, valve, brake, bearings, bearing scrapers, oil nozzle, oil pump, carburetor , fuel injectors and other electronic components, circuit boards, semiconductor silica wafers, plating, optical lenses, audio heads, polyester filter, chemical fiber spinning nozzle, spinning plates, etc., including laboratories, and other various industries cleaning. There are machines with different functions such as temperature-increasing, power-adjustment, dual-frequency, high-frequency (59K, low noise and suitable for precision cleaning), swept-frequency for users to choose from.

On the basis of the international standards IEC60886.61102.61161, the company manufactures series of intelligently automatic ultrasonic cleaning machines and airing cleaning machines, including the following types (desktop type, input type, split, single-slot, dual-slot, multi-slot) All major and key  parts are imported, thus making the circuit more excellent, work more reliable, efficiency greater, noise much lower and cleaning more effective.


The design of the equipment is based on the users' requirement of ultrasonic power, ultrasonic frequency,ultrasonic time.Having the following functions : cleaning, decentralized extraction,nano-preparation,chemical reactions, degassing,defoaming, emulsification, mixing etc.. It has broken the traditional cleaning pattern by the single-frequency washing machine. Through multi-frequency conversion 25KHz,28KHz,40KHz and 59KHz, the whole process of perfunctory washing, washing in clean water, precision cleaning and rinse is complete within a single machine, giving a thorough cleaning to the washing objects with the result that no fine and stubborn dirt is left anywhere.



Main Features

 Background light LCD screen

 Microcomputer memory setting parameters

 The ultrasonic working time set up independently :

 0-99minutes adjustable

 Multi-frequency conversion: 25KHz28KHz40KHz59KHz

 Display working countdown time

 Display actual temperature of the cleaning tank

 Temperature setting range: Ambient Temperature-80℃

 Timing range: 0-999 minutes adjustable

 Equipped with a special stainless steel basket, reduction sound cover

 The shell and cover are made of stainless steel

 The equipment controlled by single-chip controller

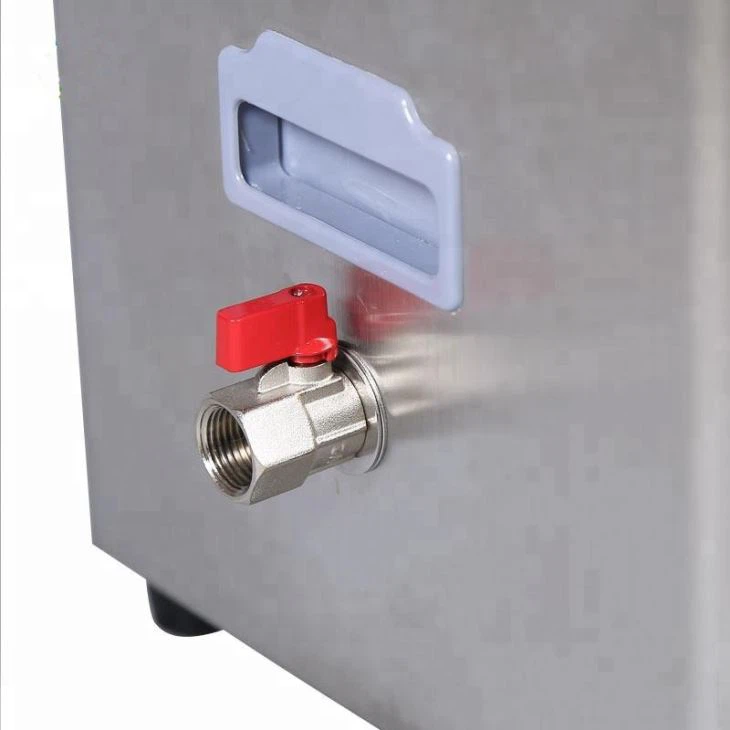

 With Drainage function

Main Technical Parameters:



Model



Inner tank

volume

Frequency

Ultrasonic power

Heating  power



Rack



Drainage

(mm)L/W/H

L

KHZ_

W

W

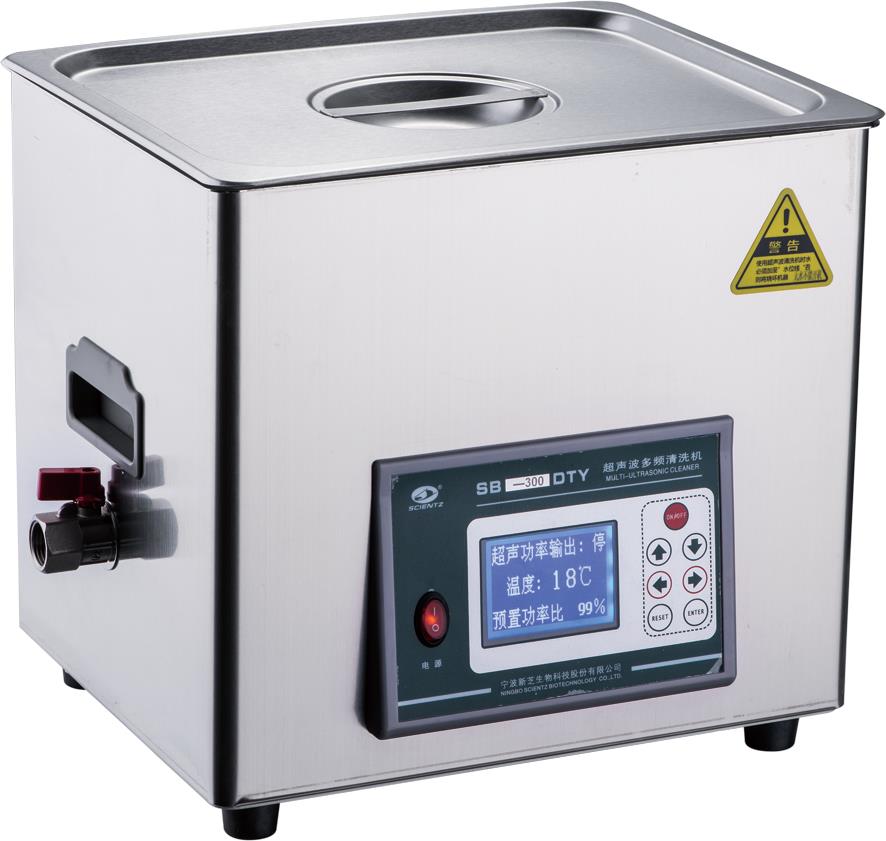

SB-300DTY

300*240*150

10

25

28



40

49

300

800

SB-400DTY

300*240*200

15

400

800

SB-500DTY

500*300*150

22.5

500

1000

SB-600DTY

500*300*200

30

600

3000

SB-1000DTY

600*300*300

54

1000

4000

SB-1200DTY

600*400*300

70

1200

5000

Notice :With the heating function of the ultrasonic cleaner, after heating the temperature than the actual display temperature 2-8 OC for thermostatic ultrasonic , optional ultrasonic thermostatic ultrasonic cleaner .


Application:

Jewelry Markets Retail/Wholesale: Tabletop models for cleaning finished goods, watches, chain, rings, etc. by the piece or in bulk.


Jewelry Manufacturing: General Jewelry Cleaning. Finite removal of investment after casting. Removal of rouge and other buffing and polishing compounds. Removal of oil/grease in chain manufacturing process.


Dental Labs: Can be used in the lab or office for finite cleaning of instruments with maximum power and delicate cleaning of cosmetic/corrective mouthpieces with adjustable power setting.


Hospital/Surgical: Absolute cleaning of surgical instruments, artificial components, etc... Sterilization chemicals can be added to beakers and used in the tank.


Tattoo: Clean needles, nozzles, brushes, filters.


Packaging & Shipping


Delivery detail:


UPS/DHL/FEDEX/TNT express are available for your choose which take 3~ 5 days to arrive,and  we will offer the tracking number for you to check the status of your items online at any time.

 By air cargo which takes about one week to arrive .

 By sea which takes about 20-30days to arrive , depending on your actual requirements.






Our Services



1.Warranty:

12 months warranty for scientz ultrasonic cleaner.

If any technical problem during warranty time, replacement parts will be sent free of charge.

Technical support is also available in whole time.

2.Our Advantage

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. OEM is available if the quantity is large.

4. We offer very competitive for all our products.

3.After-sales

Our machines undergo an extensive and strict testing and quality control procedure, ensuring every item purchased meet global quality standards.It's safe and reliable quality for ultrasonic cleaner.

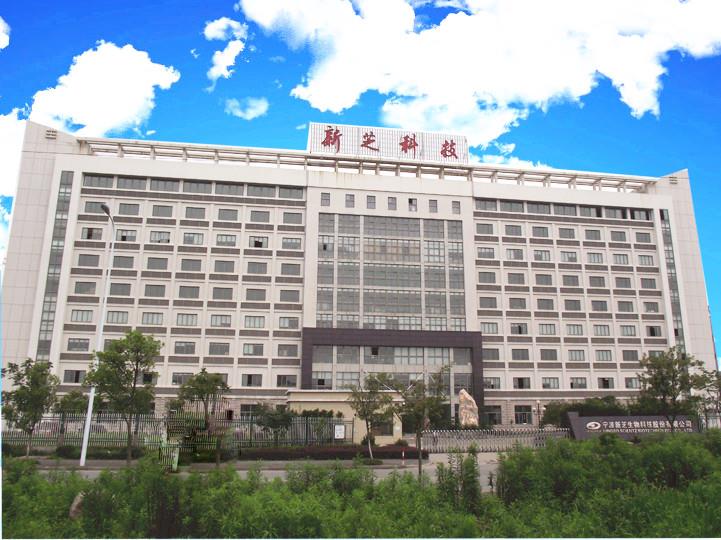

SCIENTZ FACTORY

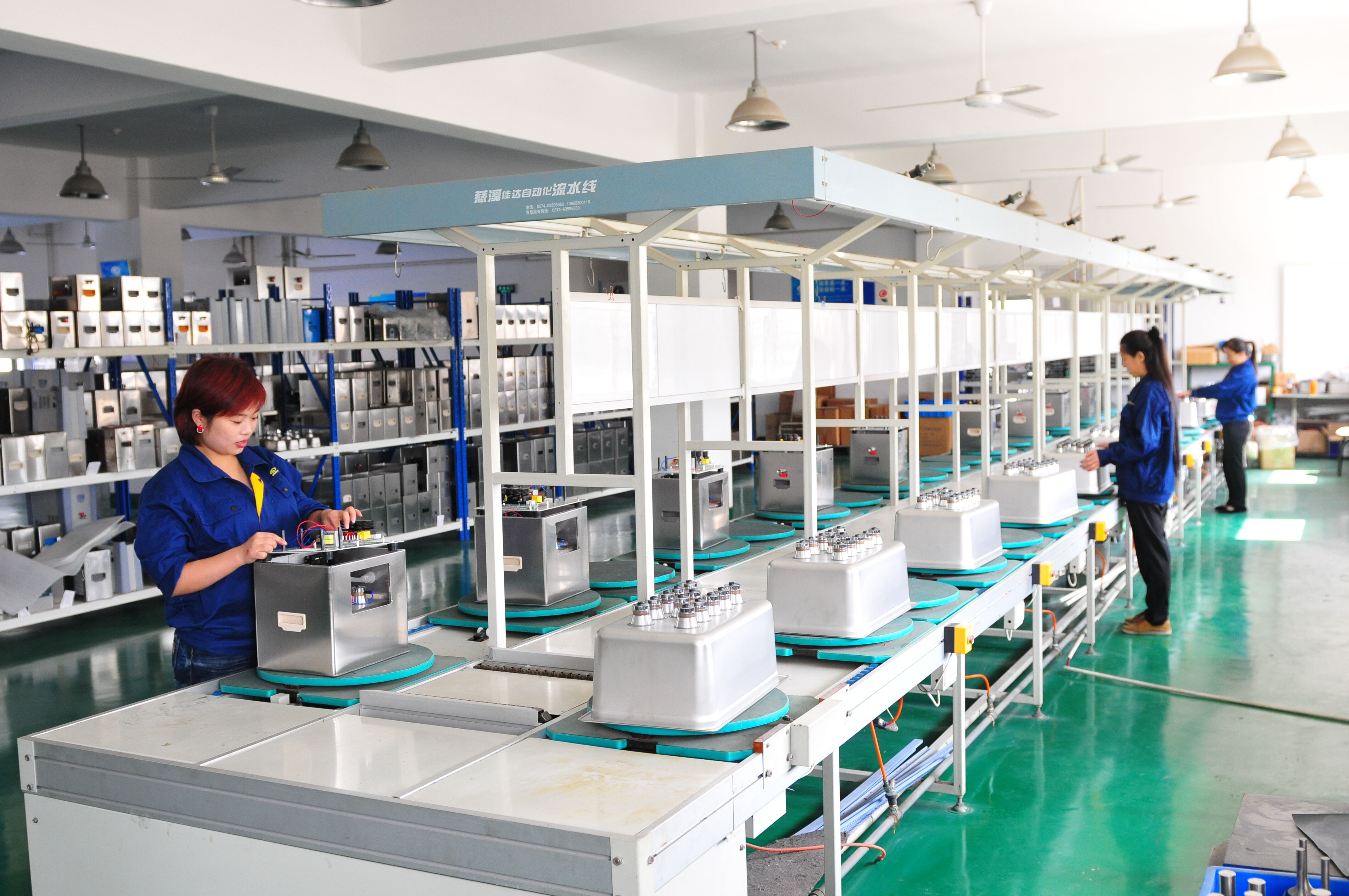

SCIENTZ WORKSHOP
