Microcomputer Control, Large-screen Liquid Crystal Display Thermostatic Ultrasonic Cleaner

Microcomputer Control, Large-screen Liquid Crystal Display Thermostatic Ultrasonic Cleaner

Ultrasonic Cleaner is designed to apply a cavitation effect produced in the cleaning liquid by means of ultrasonic waves.It can accelerate dissolution and decomposition of dirty and grease from parts being cleaned and has a perfect cleaning effect on blind hole and interior holes of the...

Ultrasonic Cleaner is designed to apply a cavitation effect produced in the cleaning liquid by means of ultrasonic waves.It can accelerate dissolution and decomposition of dirty and grease from parts being cleaned and has a perfect cleaning effect on blind hole and interior holes of the container. Being fast in cleaning, efficiency, undamageable on the surface and reducible in labour intensity, it has wide applications in cleaning precision machinery parts, hydraulic parts, pneumatic parts, valve, brake, bearings, bearing scrapers, oil nozzle, oil pump, carburetor , fuel injectors and other electronic components, circuit boards, semiconductor silica wafers, plating, optical lenses, audio heads, polyester filter, chemical fiber spinning nozzle, spinning plates, etc., including laboratories, and other various industries cleaning. There are machines with different functions such as temperature-increasing, power-adjustment, dual-frequency, high-frequency (59K, low noise and suitable for precision cleaning), swept-frequency for users to choose from.

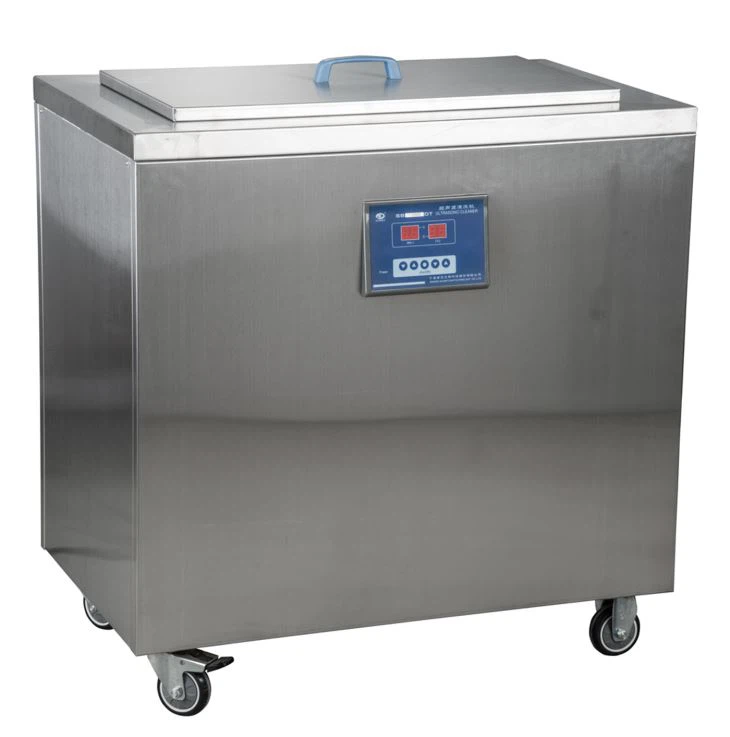

SBL Thermostatic Ultrasonic Cleaner


SBL ultrasonic constant temperature cleaning machine is specially designed for chemical reaction, chemical synthesis, biopharmaceutical synthesis, biomaterial degradation, recombination and Chinese medicine extraction. Special instrument developed for temperature control cleaning of precision instrument parts. It has ultrasonic, imported closed fluorine-free compressor, 304 stainless steel heater, 304 stainless steel tank, microcomputer control, large-screen liquid crystal display, drain valve, basket, stainless steel. Cover and other components.


The instrument is easy to use, and the ultrasonic power, ultrasonic time and reaction temperature can be set arbitrarily. Working parameters, power-off memory, temperature accuracy ± 2 ° C, is not achieved by ordinary ultrasound, can meet the experimental requirements of the experimenter.


Technical   Parameters

Model

Inner tank(mm)L/W/H

Frequency(KHZ)

Volume(L)

Setting temperature()

Power(W)

Heating power(W)

Cooling power(W)

Time(min)

Drainage

Cover/Basket

SBL-10DT

300*240*150

40

10

5-90

300

350

250

1-999

Manual

Yes

SBL-15DT

300*240*200

40

15

5-90

400

500

280

1-999

Manual

Yes

SBL-22DT

500*300*150

40

22

5-90

600

800

300

1-999

Manual

Yes

SBL-30DT

500*300*200

40

30

5-90

800

1200

350

1-999

Manual/Automatic

Yes

SBL-54DT

600*300*300

40

54

5-90

1000

2800

500

1-999

Manual/Automatic

Yes

SBL-72DT

600*400*300

40

72

5-90

1200

3800

750

1-999

Manual/Automatic

Yes

SBL-90DT

600*500*300

40

90

5-90

1500

4800

1125

1-999

Manual/Automatic

Yes



The main components of the ultrasonic cleaner


   The ultrasonic cleaning machine is mainly composed of an ultrasonic cleaning tank and an ultrasonic generator. The ultrasonic cleaning tank is made of high-quality stainless steel with good elasticity and corrosion resistance, and an ultrasonic transducer vibrator is installed at the bottom;


   The ultrasonic generator generates high-frequency high voltage, which is transmitted to the transducer through the cable coupling line, and the transducer generates a high-frequency resonance together with the vibration plate, so that the solvent in the cleaning tank is washed by the ultrasonic wave to clean the dirt.




Application:

Jewelry Markets Retail/Wholesale: Tabletop models for cleaning finished goods, watches, chain, rings, etc. by the piece or in bulk.


Jewelry Manufacturing: General Jewelry Cleaning. Finite removal of investment after casting. Removal of rouge and other buffing and polishing compounds. Removal of oil/grease in chain manufacturing process.


Dental Labs: Can be used in the lab or office for finite cleaning of instruments with maximum power and delicate cleaning of cosmetic/corrective mouthpieces with adjustable power setting.


Hospital/Surgical: Absolute cleaning of surgical instruments, artificial components, etc... Sterilization chemicals can be added to beakers and used in the tank.


Tattoo: Clean needles, nozzles, brushes, filters.
