Industrial Ultrasonic Cleaner

Ultrasonic Cleaner is designed to apply a cavitation effect produced in the cleaning liquid by means of ultrasonic waves.It can accelerate dissolution and decomposition of dirty and grease from parts being cleaned and has a perfect cleaning effect on blind hole and interior holes of the...

Principle


   The ultrasonic transducer converts the high-frequency oscillating electrical signal into a high-frequency mechanical oscillation, which is radiated in the cleaning liquid in the form of a longitudinal wave.

   During the half-wave expansion of the radiation wave, the compactness of the cleaning liquid is destroyed and numerous bubbles of 50-500 μm in diameter are formed. This bubble is filled with solution vapor.

   During the compressed half-wave, the bubble speed is closed, resulting in a local hydraulic impact of hundreds of MPa. This phenomenon is called the "cavitation" effect. Under the continuous action of the "cavitation" effect, the dirt on the surface or concealed part of the workpiece is cracked and peeled off.

   At the same time, under the action of ultrasound, the osmosis of the cleaning solution is strengthened; the pulsation stirring is intensified; the dissolution, dispersion and emulsification are accelerated; thus the workpiece is thoroughly cleaned.

   On the basis of the international standards IEC60886.61102.61161, the company manufactures series of intelligently automatic ultrasonic cleaning machines and airing cleaning machines, including the following types (desktop type, input type, split, single-slot, dual-slot, multi-slot) All major and key  parts are imported, thus making the circuit more excellent, work more reliable, efficiency greater, noise much lower and cleaning more effective.

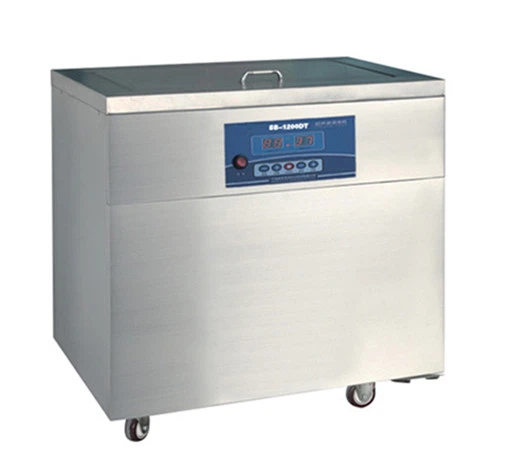

DT Series ULTRASONIC CLEANER (Heating model  )

Main Technical Parameters:

Model

Inner tank

volume

Frequency



Ultrasonic   power

Heating power

Temperature adjustable

Time    adjustable

Drainage



Rack

      (      mm)L/W/H

L

KHz

W

W

OC

min



SB-100DT

300*150*100

4.5

40

100

200

RT+5-80

1-99

/

SB-120DT

240*140*100

3

40

120

200

RT+5-80

1-99

/

SB-120DT

240*140*150

5

40

120

200

RT+5-80

1-99

/

SB-3200DT

300*155*150

6

40

180

400

RT+5-80

1-99

/

SB-5200DT

300*240*150

10

40

200

800

RT+5-80

1-99

SB-5200DT

300*240*150

10

40

250

800

RT+5-80

1-99

SB-5200DT

300*240*150

10

40

300

800

RT+5-80

1-99

SB-4200DT

300*240*200

14.4

40

400

800

RT+5-80

1-99

SB-12DT

500*300*150

22.5

40

500

1000

RT+5-80

1-99

SB-12DT

500*300*150

22.5

40

600

1000

RT+5-80

1-99

SB-800DT

600*300*200

30

40

800

1000

RT+5-80

1-99

SB-1000DT

600*300*300

54

28

1000

3000

RT+5-80

1-99

SB-1200DT

600*400*300

72

28

1200

4000

RT+5-80

1-99

SB-1500DT

600*500*300

90

28

1500

4000

RT+5-80

1-99

SB-1800DT

600*600*300

108

28

1800

4000

RT+5-80

1-99

SB-2000DT

User offer size

120

28

2000

6000

RT+5-80

1-99

SB-3600DT

User offer size

207

28

3600

8000

RT+5-80

1-99

Notice :With the heating function of the ultrasonic cleaner, after heating the temperature than the actual display temperature 2-8 OC for thermostatic ultrasonic , optional ultrasonic thermostatic ultrasonic cleaner .

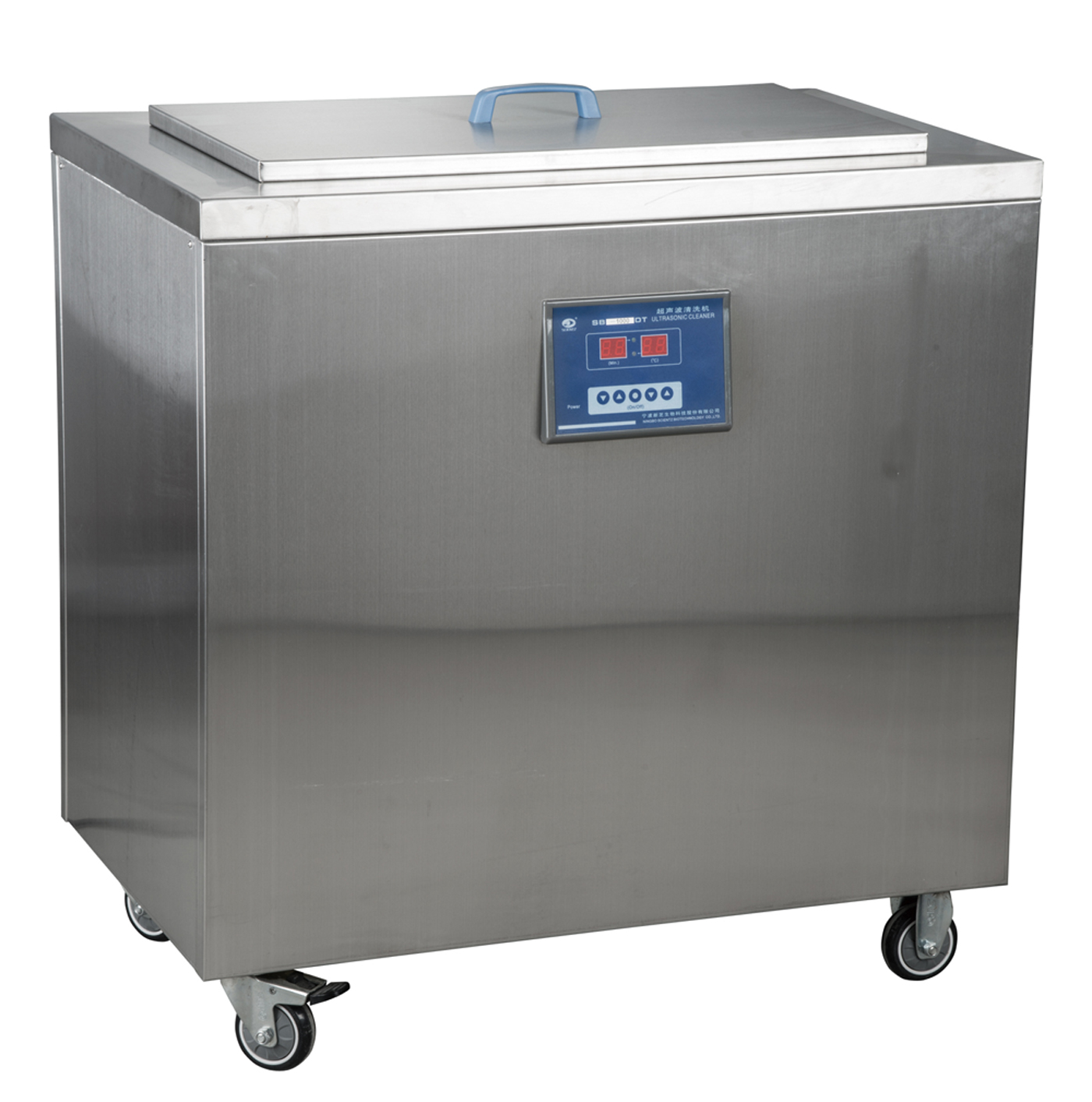

DSC_8426 副本.jpg



Application:

Jewelry Markets Retail/Wholesale: Tabletop models for cleaning finished goods, watches, chain, rings, etc. by the piece or in bulk.


Jewelry Manufacturing: General Jewelry Cleaning. Finite removal of investment after casting. Removal of rouge and other buffing and polishing compounds. Removal of oil/grease in chain manufacturing process.


Dental Labs: Can be used in the lab or office for finite cleaning of instruments with maximum power and delicate cleaning of cosmetic/corrective mouthpieces with adjustable power setting.


Hospital/Surgical: Absolute cleaning of surgical instruments, artificial components, etc... Sterilization chemicals can be added to beakers and used in the tank.


Tattoo: Clean needles, nozzles, brushes, filters.


Plating parts, hardware optical parts and spare parts


Safety Precautions


1. Please read the operation manual carefully before use.

2. A reliable grounding device must be used before using the washer.

3. It is strictly forbidden to carry open fire and fire work at the work site.

4. When using the volatile flammable liquid such as acetone or gasoline, it should be covered and especially careful.


Packaging & Shipping

Delivery detail:


UPS/DHL/FEDEX/TNT express are available for your choose which take 3~ 5 days to arrive,and  we will offer the tracking number for you to check the status of your items online at any time.

 By air cargo which takes about one week to arrive .

 By sea which takes about 20-30days to arrive , depending on your actual requirements.





Our Services



1.Warranty:

12 months warranty for scientz ultrasonic cleaner.

If any technical problem during warranty time, replacement parts will be sent free of charge.

Technical support is also available in whole time.

2.Our Advantage

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. OEM is available if the quantity is large.

4. We offer very competitive for all our products.

3.After-sales

Our machines undergo an extensive and strict testing and quality control procedure, ensuring every item purchased meet global quality standards.It's safe and reliable quality for ultrasonic cleaner.

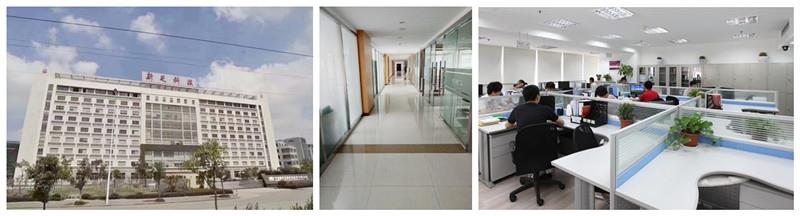

SCIENTZ FACTORY

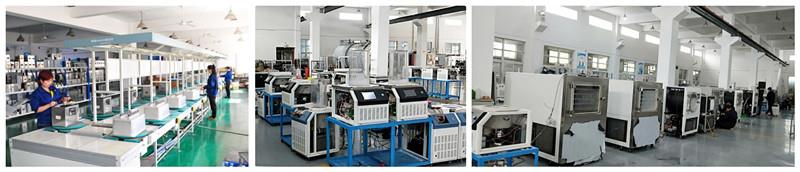

SCIENTZ WORKSHOP
