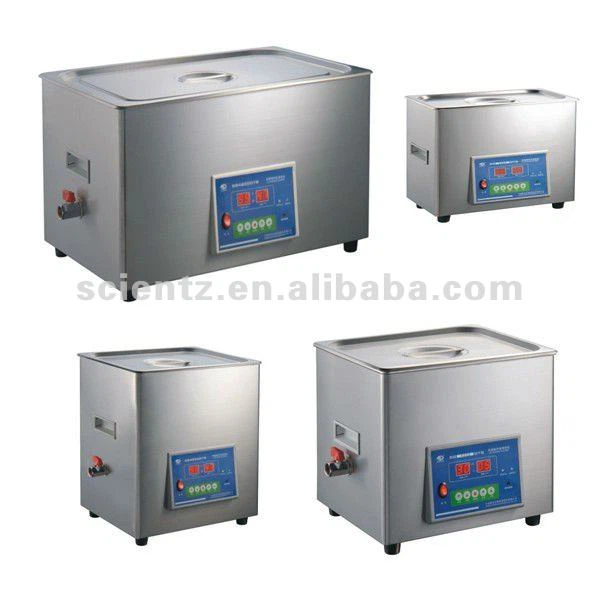

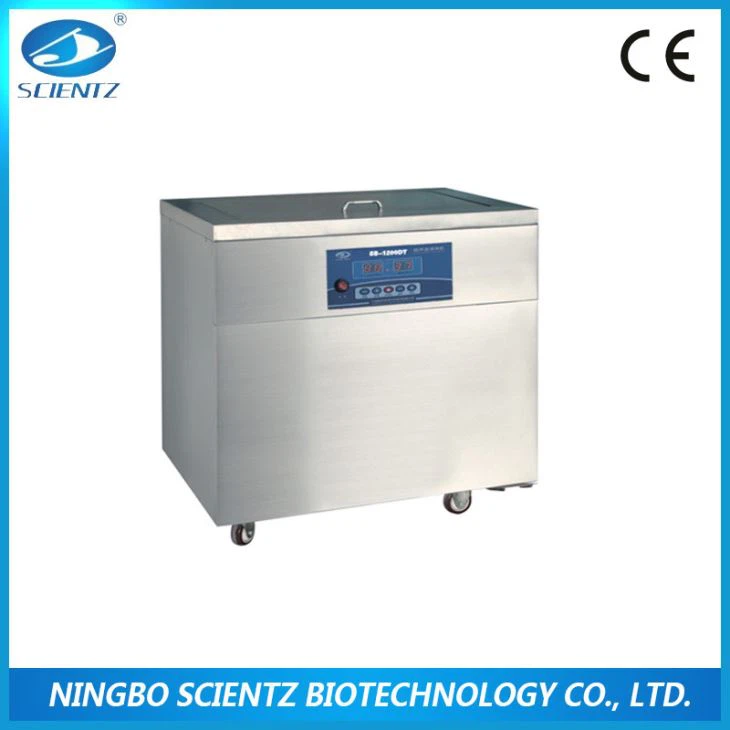

40khz/28khz Standard Series 54L To 207L Industrial Ultrasonic Cleaner For Remove Oil, Rust And Dirt

Ultrasonic Cleaner is designed to apply a cavitation effect produced in the cleaning liquid by means of ultrasonic waves.It can accelerate dissolution and decomposition of dirty and grease from parts being cleaned and has a perfect cleaning effect on blind hole and interior holes of the...

Ultrasonic Cleaner is designed to apply a cavitation effect produced in the cleaning liquid by means of ultrasonic waves.It can accelerate dissolution and decomposition of dirty and grease from parts being cleaned and has a perfect cleaning effect on blind hole and interior holes of the container. Being fast in cleaning, efficiency, undamageable on the surface and reducible in labour intensity, it has wide applications in cleaning precision machinery parts, hydraulic parts, pneumatic parts, valve, brake, bearings, bearing scrapers, oil nozzle, oil pump, carburetor , fuel injectors and other electronic components, circuit boards, semiconductor silica wafers, plating, optical lenses, audio heads, polyester filter, chemical fiber spinning nozzle, spinning plates, etc., including laboratories, and other various industries cleaning. There are machines with different functions such as temperature-increasing, power-adjustment, dual-frequency, high-frequency (59K, low noise and suitable for precision cleaning), swept-frequency for users to choose from.


Ultrasonic cleaning machines in various industries


Ultrasonic application in the pharmaceutical industry


Ultrasonic cleaning technology has been widely used in many pharmaceutical companies, especially for the cleaning of vials, oral liquid bottles, ampoules, large infusion bottles, and cleaning of butyl rubber stoppers and natural rubber stoppers. For the cleaning of bottles, ultrasonic cleaning technology is used to replace the original brushing machine, which is realized by the processes of inverted water injection, ultrasonic cleaning, internal and external washing, air drying, and turning.


Ultrasonic application in the micro-powder industry


It is well known that to obtain particles of different sizes, the crushed material is ground in a ball mill and sieved through layers of different specifications. After the sieve is used for a long time, the sieve hole will be blocked (such as diamond sieve). Brushing by other methods will destroy the sieve, and the effect is not satisfactory. After many manufacturers' tests, ultrasonic cleaning will not damage the sieve but also the sieve. The blocked particles are completely recovered.



 Main Technical Parameters:

Model

Inner tank

volume

Frequency



Ultrasonic   power

Heating power

Temperature adjustable

Time    adjustable

Drainage



Rack

      (      mm)L/W/H

L

KHz

W

W

OC

min



SB-100DT

300*150*100

4.5

40

100

200

RT+5-80

1-99

/

SB-120DT

240*140*100

3

40

120

200

RT+5-80

1-99

/

SB-120DT

240*140*150

5

40

120

200

RT+5-80

1-99

/

SB-3200DT

300*155*150

6

40

180

400

RT+5-80

1-99

/

SB-5200DT

300*240*150

10

40

200

800

RT+5-80

1-99

SB-5200DT

300*240*150

10

40

250

800

RT+5-80

1-99

SB-5200DT

300*240*150

10

40

300

800

RT+5-80

1-99

SB-4200DT

300*240*200

14.4

40

400

800

RT+5-80

1-99

SB-12DT

500*300*150

22.5

40

500

1000

RT+5-80

1-99

SB-12DT

500*300*150

22.5

40

600

1000

RT+5-80

1-99

SB-800DT

600*300*200

30

40

800

1000

RT+5-80

1-99

SB-1000DT

600*300*300

54

28

1000

3000

RT+5-80

1-99

SB-1200DT

600*400*300

72

28

1200

4000

RT+5-80

1-99

SB-1500DT

600*500*300

90

28

1500

4000

RT+5-80

1-99

SB-1800DT

600*600*300

108

28

1800

4000

RT+5-80

1-99

SB-2000DT

User offer size

120

28

2000

6000

RT+5-80

1-99

SB-3600DT

User offer size

207

28

3600

8000

RT+5-80

1-99

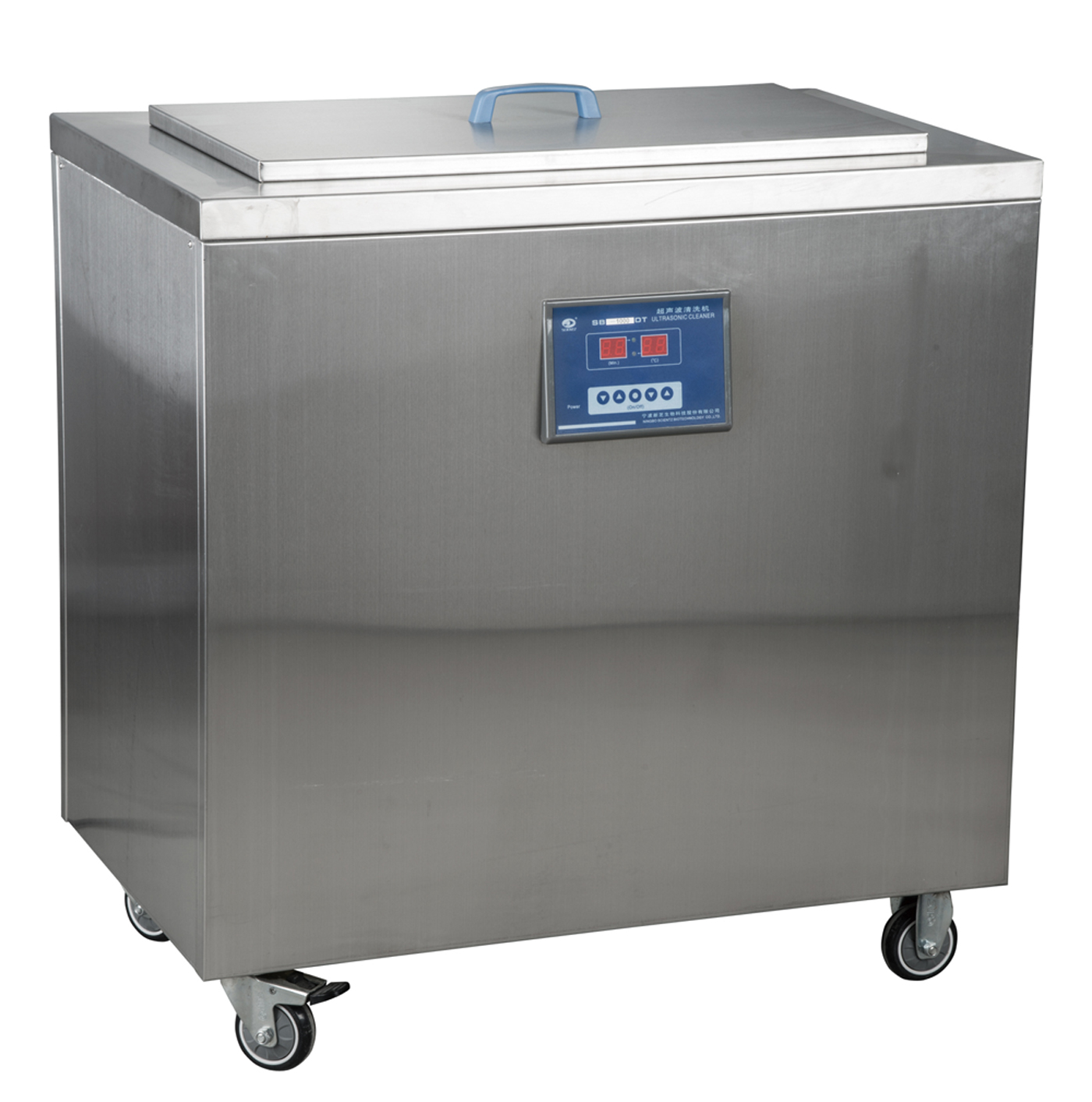

DSC_8426 副本.jpg


Ultrasonic cleaning machine transducer common problems and treatment methods


The ultrasonic transducer is damp. Generally, the megohmmeter is used to check the plug connected to the transducer, and the insulation resistance between the positive and negative poles of the transducer can be checked. Insulation resistance is generally required to be greater than 30 megohms.


If this insulation resistance value is not reached, it is likely that the transducer is wet. The maintenance method is to put the whole transducer (excluding the sprayed plastic case) into the oven setting to about 100 °C, dry for three hours or use a hair dryer to remove moisture until the resistance is normal. The transducer vibrator is fired and the ceramic material is broken. The inspection can be combined with the naked eye and the megohmmeter during maintenance.


Generally, as an emergency treatment measure, individual damaged transducers can be disconnected without affecting the normal use of other transducers.
