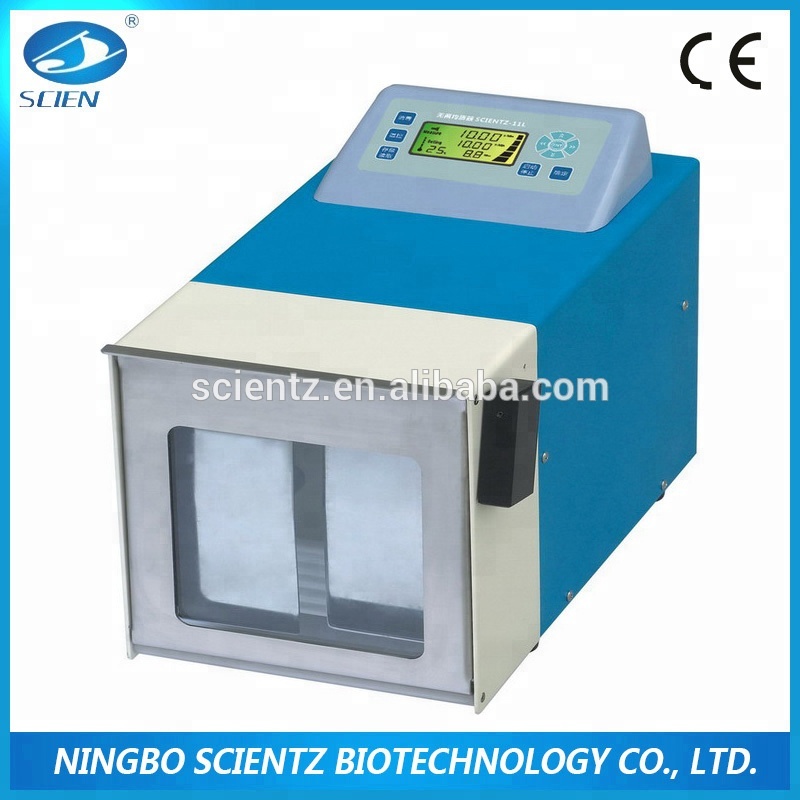

Scientz-04/09/11L Stick Blender

Germfree Homogenizer,also known as flap homogenizer, is widely used in the homogenization treatment for animal tissue and biological samples, also used for the following testing areas: food, pharmaceutial, cosmetics, clinics molecule, toxin and bacteria,particularly suitable for preparation of...

   Aseptic homogenizer for biomedicine; food industry; daily care products; paint ink; nanomaterials; petrochemical; printing and dyeing auxiliaries; paper industry; pesticides and fertilizers; plastics and rubber; power electronics; An example of a sterile homogenizer is described below.


  Application of homogenizer in soy milk: When homogenized, soymilk is pressed out from the slit of the homogenizing valve under high pressure. The fat globule, the constant temperature homogenizer protein and the like are finely divided by the shearing force, the impact force and the cavitation effect. A uniform dispersion is formed. Prevent fat from floating, protein precipitation, increase the gloss of soy milk, and improve the stability of soy milk.


   The homogenization effect of soymilk is subject to homogenization pressure. The three factors of homogenization temperature and number of homogenization are affected. The homogenization pressure is limited by the equipment. Soymilk production can be homogenized with a pressure of 20~30MPa. When the temperature is homogeneous, the temperature is generally controlled between 55 and 65 °C. The number of homogenizations is 1~2 times.


   The homogenization process can be placed before the soymilk is sterilized. It can also be placed after sterilization. Both arrangements have their own advantages and disadvantages. The homogenization is placed before sterilization, and the sterilization process can destroy the homogenization effect to some extent. Soymilk is prone to oil lines. However, the use of this process reduces the chance of contamination after sterilization. Storage is safer. Equipment costs are relatively low. And after the homogenized soymilk enters the sterilizer, it is not easy to scale. If the homogenization is placed after sterilization, the above situation is just the opposite.


   The application of the aseptic homogenizer in the raw milk: breaking the large fat globules in the milk into small fat globules under strong mechanical action of 16.7-20.6 MPa. Disperse it evenly in the milk. It can effectively prevent fat balls from floating up. In the production of pasteurized milk. The location of the general homogenizer is in the first heat recovery section of the sterilization. In the production of indirectly heated UHT milk, the homogenizer is located prior to sterilization. In the production of directly heated UHT milk. The homogenizer is located after sterilization. Therefore, a sterile homogenizer should be used. Homogenization not only prevents the fat globule from floating, but also has other advantages: the homogenized cow's milk fat globule is reduced in diameter and easily digested and absorbed by the human body. Homogenization softens the milk protein clot. Promote digestion and absorption. In the production of enzyme cheese, homogenization can accelerate the coagulation of milk, and the flavor of dairy products is more consistent.





Model

Scientz-04

Scientz-09

Scientz-11L

Timing

30180600sor∞(continuous working)

0.1 ~   99minto 0.1mins step


Rap Speed

6-9time/Sec

312times/Secto   0.1minutes stepDisplay the actual rattling number, the   system automatically adjusts the slap speed



Capacity

3-400ml

3-400ml

3-400ml

Ratting Box

 Stainless Steel

 Stainless Steel

 Stainless Steel

Parameter   storage

No

More than 10   groups

of multi-stage   programming

 More than 10 groups of multi-stage programming

Power

300W

300W

500W

Display

 LCD

 Digital

 LCD

Temperature   control

No

No

Room temperature--50   OC to settemperature display

UV Disinfection

No

No

Yes

Sterile   bag

17 * 30cm

17*30cm

17*30cm

 Net Weight

22.5Kg

18.5Kg

18.5Kg

Protection   Device

With   auto-stop anti-trap feature, Removable windows and adjustable slap board,   toughened glass security door



          Removable windows and adjustable   slap board, toughened glass security door

柔和启动

Dimensions

400 *420*260mm

420*245*340mm

420*245*340mm









SCIENTZ-09 拍打式均质器.jpeg

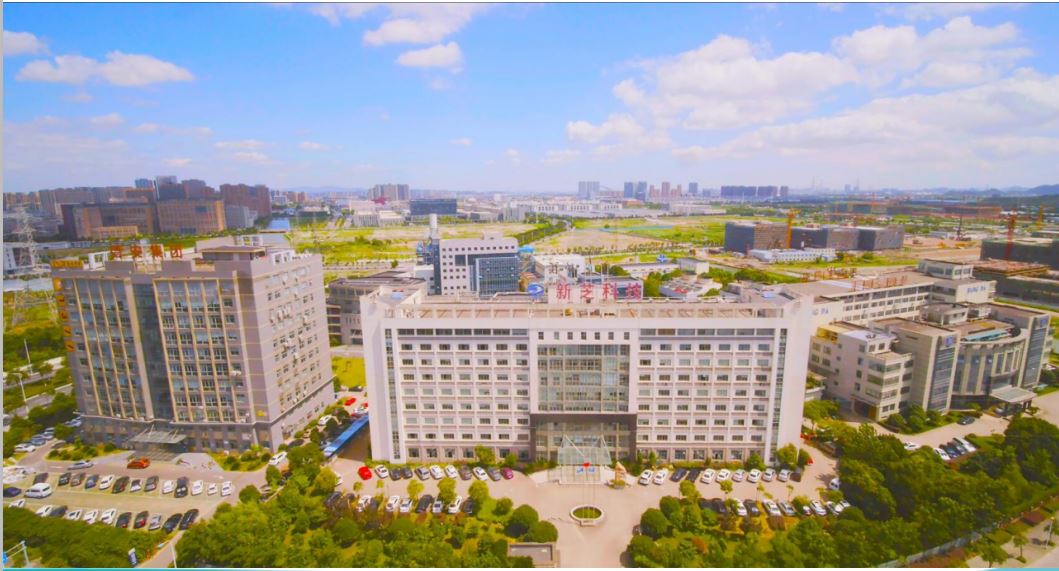

SCIENTZ FACTORY
