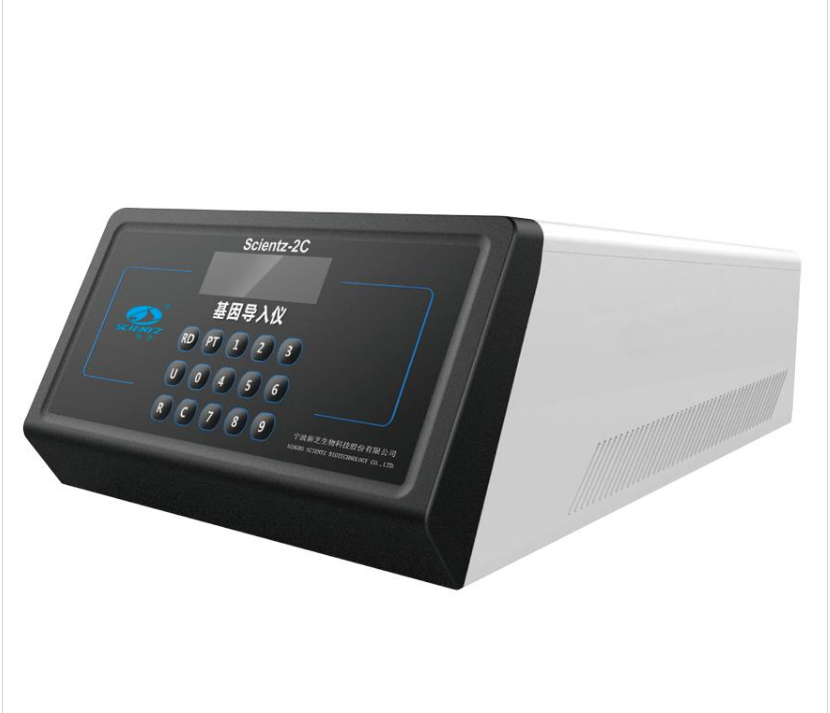

SCIENTZ-2C Touch Display Gene Electroporator Intelligent

SCIENTZ-2C Touch Display Gene Electroporator Intelligent

SCIENTZ-2C Gene electroporator (intelligent) Patent Number : 200630105829.4 СЄ The instrument is widely applicable to the electro-perforation of microorganism cells of animals and plants and is also used for cell hybrid and mixing as well as gene electroporation. The instrument is of a complete...


Patent Number200630105829.4     СЄ

The instrument is widely applicable to the electro-perforation of microorganism cells of animals and plants and is also used for cell hybrid and mixing as well as gene electroporation. The instrument is of a complete set with man-computer dialog interface. It is simple in operation and visual in apperance, and the detailed setting range of capacitance and resistance makes the electro-perforation experiment of cells more selective under the related conditions.



Characteristics


Networking of gene importer systems


General intelligent instrumentation has two-way communication functions, but this two-way communication function is far from the true network communication.


Along with the rapid development of network technology, Internet technology enables the gene importer to realize network at the same time on the basis of intelligentization, so that the on-site measurement and control parameters are close to the network and have the necessary information processing functions.



Main technical parameters:

Model

Scientz-2C

High Output voltage

400-2500V

Low output voltage

100-450V

High voltage capacitor

156253031UF

Low voltage  capacitor

100UF125UF150UF…1675UFone grades of 25UF

Resistance

501001501600-∞total 30 grades

Operationg system

Microcomputer control

Output waveform

With RC time constant of the exponential decay of wave

Dimension

36.8*31.6*22.9(cm)

Weight

10.5Kg

Packing size

480*420*280mm
