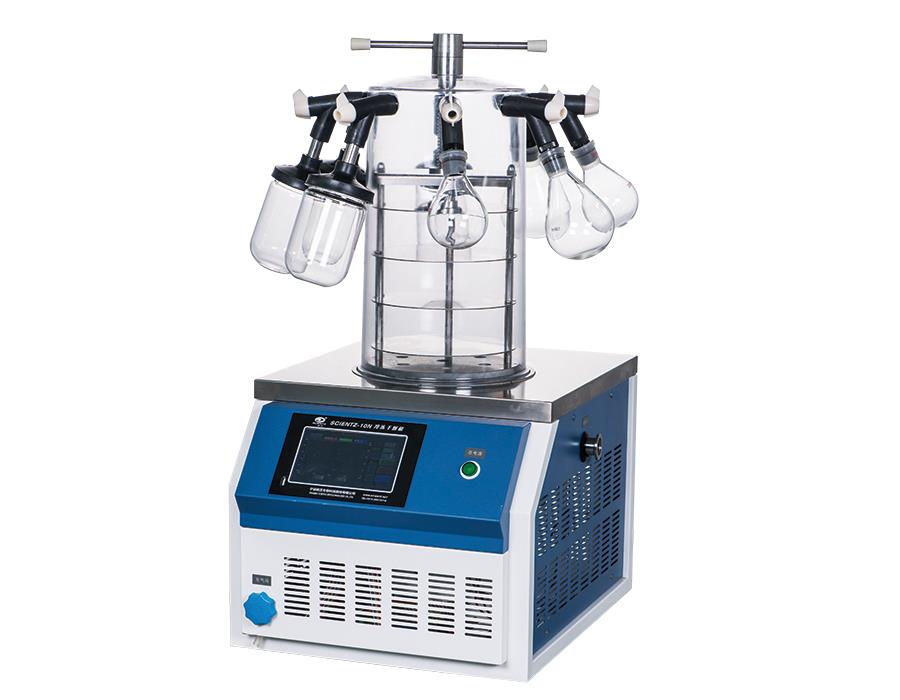

The Structure Of The Freeze Dryer
Oct 31, 2017

The structure of the freeze dryer:




Description of the structure of the freeze dryer:

The freeze dryer mainly consists of refrigeration system, vacuum system, circulation system, control system, hydraulic system and so on.

The freeze-drying machine refrigeration system includes: compressor, filter, pipe, solenoid valve, expansion valve, condenser, cold trap, oil, etc.

The freeze-drying machine circulation system includes: circulating pump, balance bucket, heat exchanger, shelf and so on

Vacuum pumps, vacuum pumps, vacuum pipes, front and rear tanks, valves

Freeze dryer control system is mainly refers to the control cabinet freeze dryer hydraulic system is the name suggests that the hydraulic station driven by a plug system.
